Mechanical Instructions
EN 14 LC8.1U LA4.

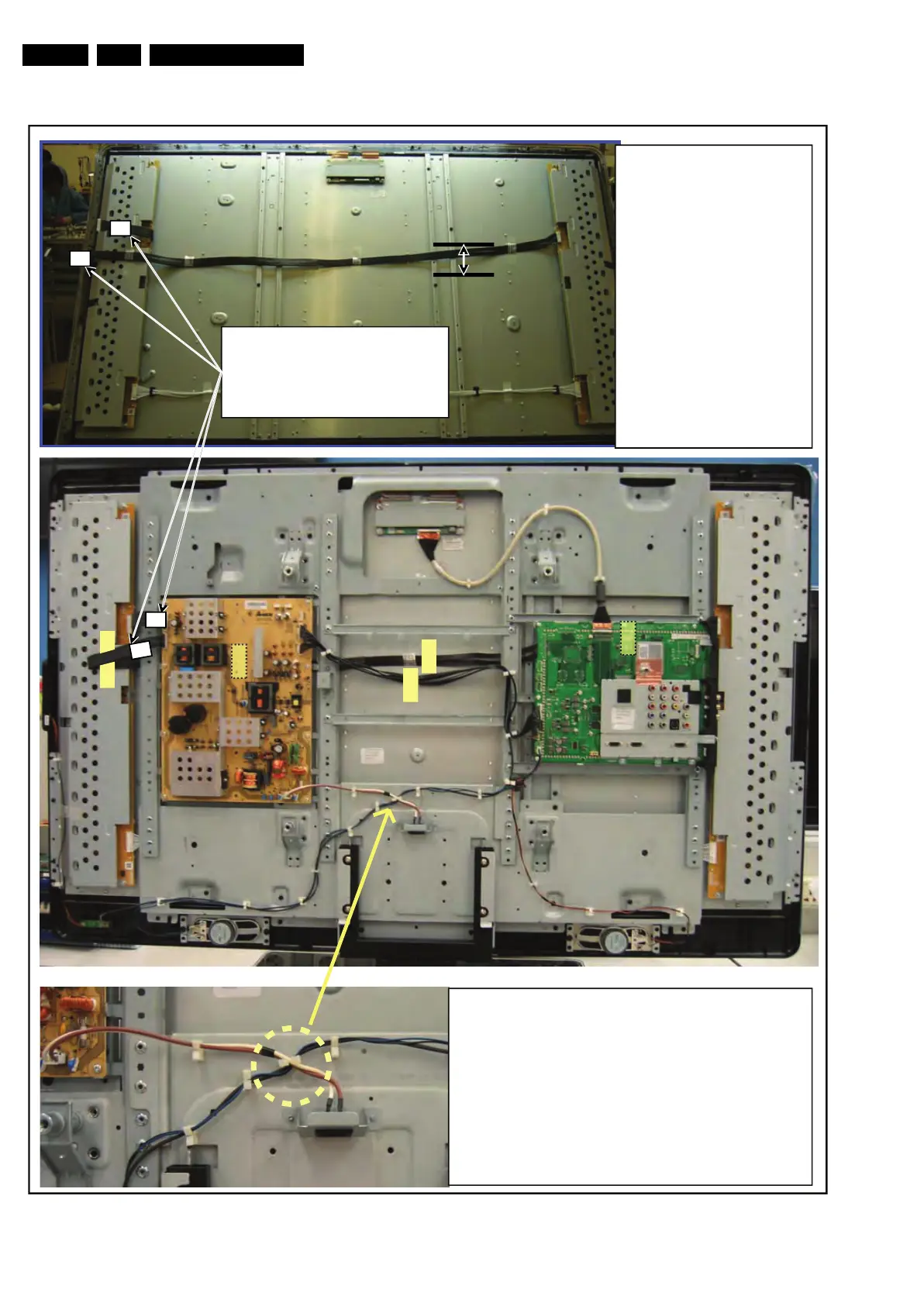

Figure 4-8 Cable dressing (52" models, MG8 styling)
Tape inverter cable so
it stays in-between the
LCD Panel lamp
holders as shown to
avoid EMC Foam on
SSB Bars.
Note horizontal orientation of wire saddle –
the IR and Speaker Cables must cross the
AC Mains Cable with “X” shape and not lay
in parallel
NOTE: For inverter cables,
the connector with ferrite
is to be inserted at the
PSU side
