Mechanical Instructions
EN 16 LC8.1U LA4.

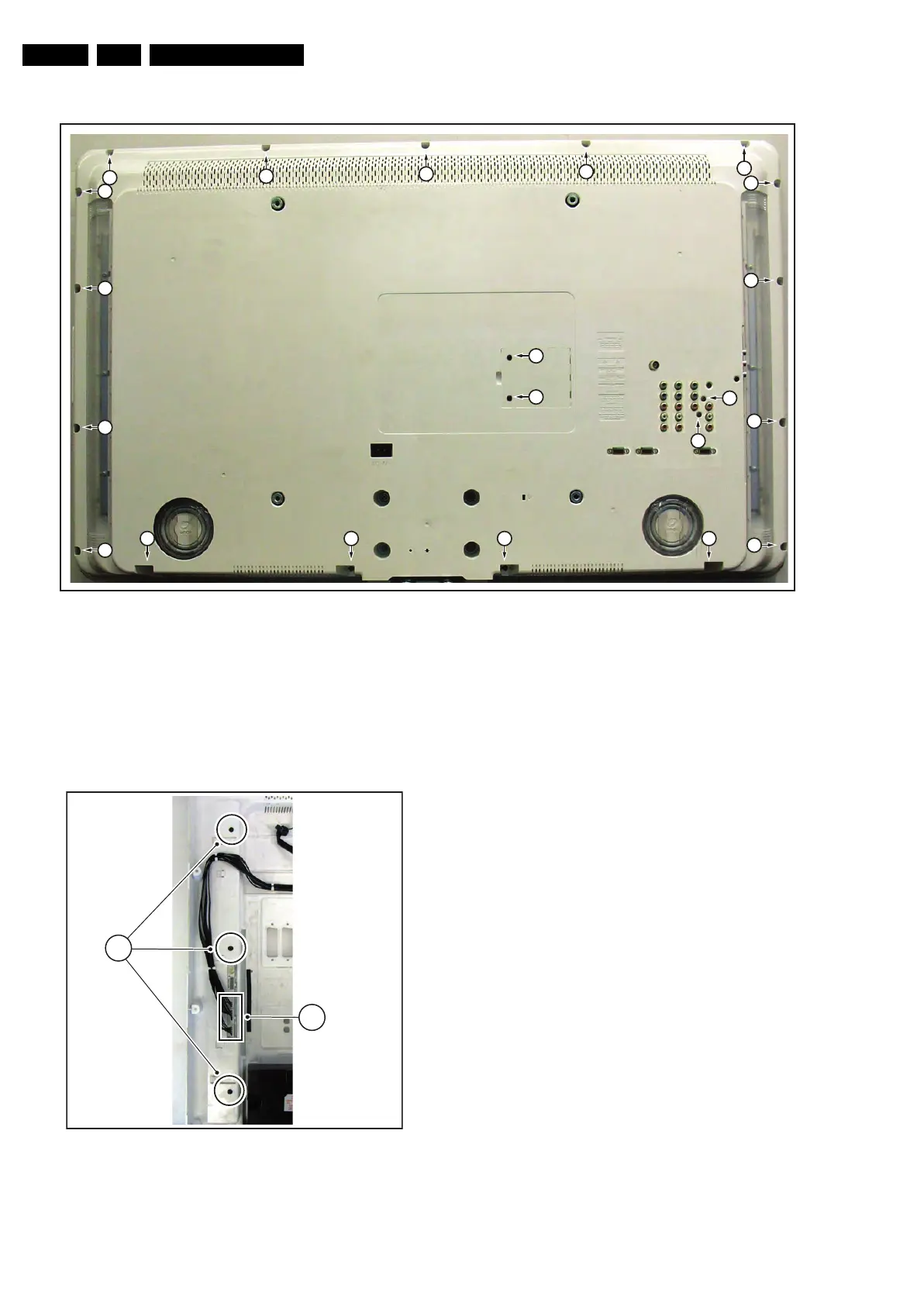

Figure 4-11 Back Cover Removal [2/2]
4.3.2 Ambilight (if present)
Refer to next figure for details.
1. Unplug the connectors [1].
2. Remove the screws [2].
3. Pull the unit sidewards from the back cover.
When defective, replace the whole unit.
Figure 4-12 Ambilight Unit
4.3.3 Loudspeaker (MG8 styling only)
1. Unplug the connectors.
2. Remove the screws.
3. Remove the loudspeaker.
