EN 3LC8.1U LA 1.
1.2 Connection Overview

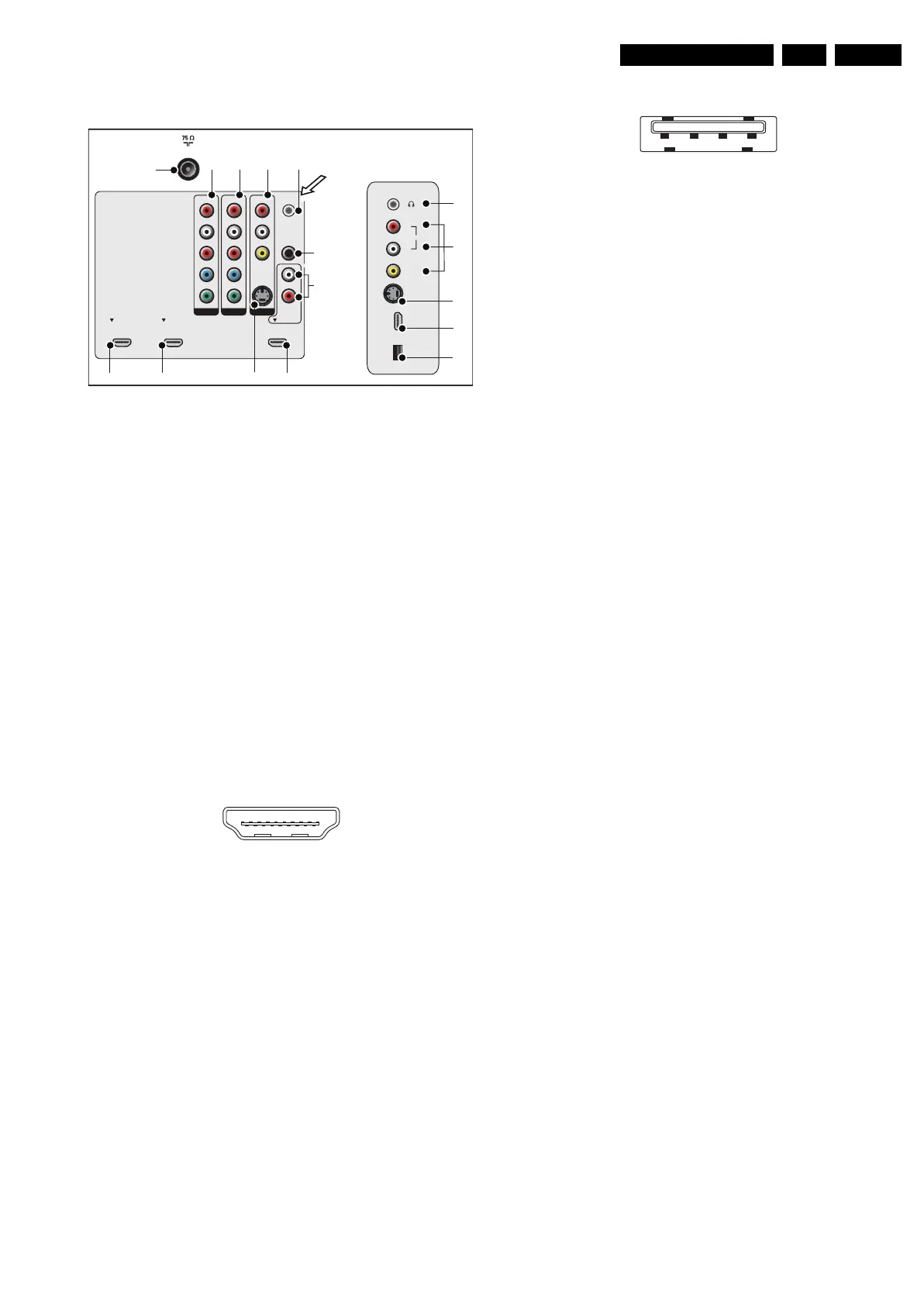

Figure 1-1 Side and rear I/O connections
Note: The following connector color abbreviations are used
(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green, Gy=
Grey, Rd= Red, Wh= White, and Ye= Yellow.
1.2.1 Side Connections
Head phone - Out (12)
Bk - Head phone 32 - 600 ohm / 10 mW rt
Cinch: Video CVBS - In, Audio - In (13)
Ye - Video CVBS 1 V
PP
/ 75 ohm jq
Wh - Audio L 0.5 V
RMS
/ 10 kohm jq
Rd - Audio R 0.5 V
RMS
/ 10 kohm jq
S-Video (Hosiden): Video Y/C - In (14)
1 - Ground Y Gnd H
2 - Ground C Gnd H
3 - Video Y 1 V
PP
/ 75 ohm j
4 - Video C 0.3 V
PP
/ 75 ohm j
HDMI4: Digital Video, Digital Audio - In (15)
Figure 1-2 HDMI (type A) connector
1 - D2+ Data channel j
2 - Shield Gnd H
3 - D2- Data channel j
4 - D1+ Data channel j
5 - Shield Gnd H
6 - D1- Data channel j
7 - D0+ Data channel j
8 - Shield Gnd H
9 - D0- Data channel j
10 - CLK+ Data channel j
11 - Shield Gnd H
12 - CLK- Data channel j
13 - n.c.
14 - n.c.
15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
17 - Ground Gnd H
18 - +5V j
19 - HPD Hot Plug Detect j
20 - Ground Gnd H
USB2.0 (16)
Figure 1-3 USB (type A)
1-+5V k
2 - Data (-) jk
3 - Data (+) jk
4 - Ground Gnd H
1.2.2 Rear Connections
HDMI1, 2 & 3: Digital Video, Digital Audio - In (9, 10, 11)
1 - D2+ Data channel j
2 - Shield Gnd H
3 - D2- Data channel j
4 - D1+ Data channel j
5 - Shield Gnd H
6 - D1- Data channel j
7 - D0+ Data channel j
8 - Shield Gnd H
9 - D0- Data channel j
10 - CLK+ Data channel j
11 - Shield Gnd H
12 - CLK- Data channel j
13 - n.c.
14 - n.c.
15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
17 - Ground Gnd H
18 - +5V j
19 - HPD Hot Plug Detect j
20 - Ground Gnd H
HDMI3: Cinch: DVI Audio - In (7)
Rd - Audio - R 0.5 V
RMS
/ 10 kohm jq
Wh - Audio - L 0.5 V
RMS
/ 10 kohm jq
Aerial - In (1)
- - F-type (US) Coax, 75 ohm D
AV1 & 2: Cinch: Video YPbPr - In, Audio - In (2, 3)
Gn - Video Y 1 V
PP
/ 75 ohm jq
Bu - Video Pb 0.7 V
PP
/ 75 ohm jq
Rd - Video Pr 0.7 V
PP
/ 75 ohm jq
Wh - Audio L 0.5 V
RMS
/ 10 kohm jq
Rd - Audio R 0.5 V
RMS
/ 10 kohm jq
AV3: Cinch: Video CVBS - In, Audio - In (4)
Ye - Video CVBS 1 V
PP
/ 75 ohm jq
Wh - Audio L 0.5 V
RMS
/ 10 kohm jq
Rd - Audio R 0.5 V
RMS
/ 10 kohm jq
AV3: S-Video (Hosiden): Video Y/C - In (8)
1 - Ground Y Gnd H
2 - Ground C Gnd H
3 - Video Y 1 V
PP
/ 75 ohm j
4 - Video C 0.3 V
PP
P / 75 ohm j
Service Connector UART (5)
1 - UART_TX Transmit k
2 - Ground Gnd H
3 - UART_RX Receive j
Cinch: S/PDIF - Out (6)
Bk - Coaxial 0.4 - 0.6V
PP
/ 75 ohm kq
I_17741_001.eps
230408
SERV. U
SPDIF
OUT
VIDEO
S-VIDEO
DVI AU DIO
IN
HDMI 3HDMI 1 HDMI 2
AV 3
AV 1 AV 2
Y
Pb
Pr
L
R
L
R
L
R
Y
Pb
Pr
L
R
TV ANTENNA
HDMI 4
S-VIDEO
VIDEO
L
AUDIO
R
USB
1
234 5
6
7
1011
12
13
14
15
16
98
Service Connector UART
19
1
18 2
E_06532_017.eps
250505
1 2 3 4
E_06532_022.eps
300904
