4.0 MECHANICAL AND DISMANTLING INSTRUCTIONS
The following guidelines show how to dismantle the player.

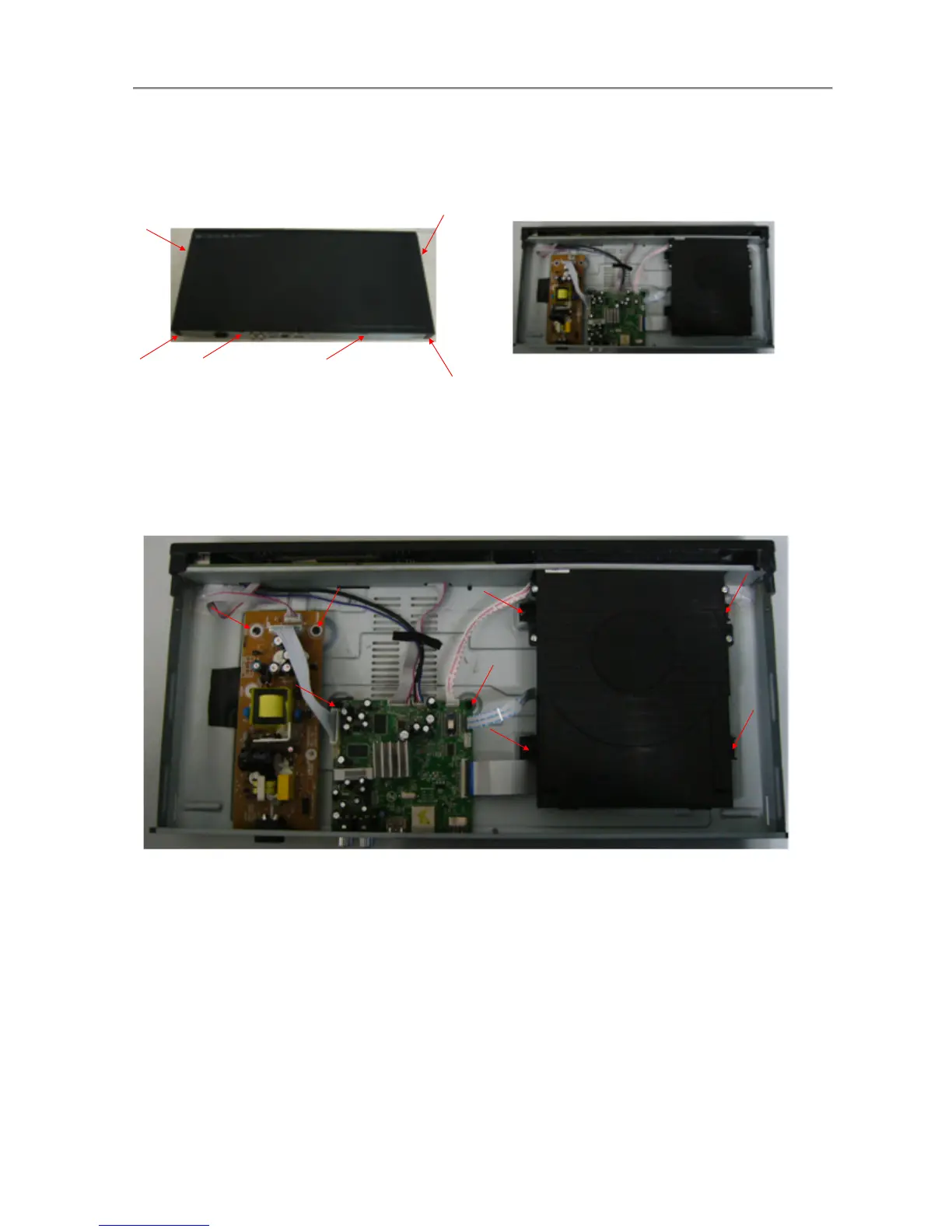

Step1: Remove 6 screws around the Top Cover, and then remove the Top Cover(Figure1)
4-1
Step2: Remove the 8 screws on board to dismantle the DVD BOARD & POWER BOARD & LED BOARD & DECK
