Technical Specifications, Connections, and Chassis Overview
EN 3BP2.2U, BP2.3U 1.
Cinch: Video CVBS - In, Audio - In
Ye - Video CVBS 1 V
PP
/ 75 ohm jq
Wh - Audio L 0.5 V
RMS
/ 10 kohm jq
Rd - Audio R 0.5 V
RMS
/ 10 kohm jq
SVHS (Hosiden): Video Y/C - In
1 - Ground Y Gnd H
2 - Ground C Gnd H
3 - Video Y 1 V
PP
/ 75 ohm j
4 - Video C 0.3 V
PP
P / 75 ohm j
1.2.2 Digital Media Reader with USB2.0 (only for BP2.2)
In some versions, a 6-in-1 card reader unit is available, which
is connected via USB to the Small Signal Board (see also par.
“Technical Specifications” -> “Multimedia”).
This unit also contains two USB2.0 connectors (see figure rear
connections).
1.2.3 Rear Connections (under side)

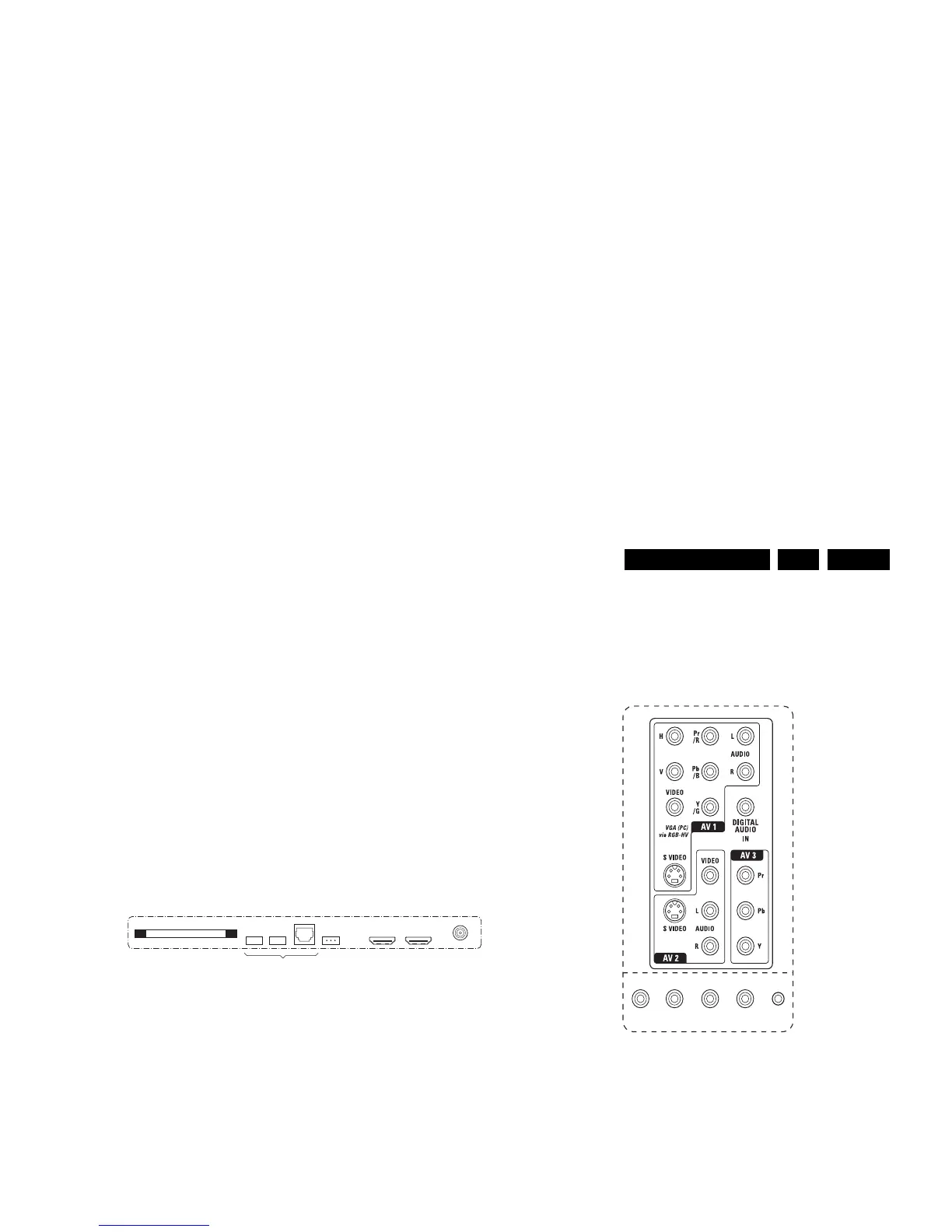

Figure 1-3 Rear connections (under side)
POD: CableCARD Interface
68p - See diagram B10A jk
IEEE1394 (optional)
1 - Data (-) TPB- jk
2 - Data (+) TPB+ jk
3 - Data (-) TPA- jk
4 - Data (+) TPA+ jk
RJ45: LAN (optional)
8p - See diagram B9A jk
Service Connector (UART)
1 - UART_TX Transmit k
2 - Ground Gnd H
3 - UART_RX Receive j
HDMI 1 & 2: Digital Video, Digital Audio - In
Figure 1-4 HDMI (type A) connector
1 - D2+ Data channel j
2 - Shield Gnd H
3 - D2- Data channel j
4 - D1+ Data channel j
5 - Shield Gnd H
6 - D1- Data channel j
7 - D0+ Data channel j
8 - Shield Gnd H
9 - D0- Data channel j
10 - CLK+ Data channel j
11 - Shield Gnd H
12 - CLK- Data channel j
13 - n.c.
14 - n.c.
15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
17 - Ground Gnd H
18 - +5V j
19 - HPD Hot Plug Detect j
20 - Ground Gnd H
Aerial - In
- - F-type (US) Coax, 75 ohm D
1.2.4 Rear Connections (rest)
Figure 1-5 Rear connections (rest)
AV1 Cinch: Video YPbPrHV- In
Gn - Video Y 1 V
PP
/ 75 ohm jq
Bu - Video Pb 0.7 V
PP
/ 75 ohm jq
Rd - Video Pr 0.7 V
PP
/ 75 ohm jq
Bk - H-sync 0 - 5 V jq
Bk - V-sync 0 - 5 V jq
AV1 Cinch: Video CVBS - In, Audio - In
Ye - Video CVBS 1 V
PP
/ 75 ohm jq
Wh - Audio L 0.5 V
RMS
/ 10 kohm jq
Rd - Audio R 0.5 V
RMS
/ 10 kohm jq
DIGITAL AUDIO Cinch: S/PDIF - In
Bk - Coaxial 0.2 - 0.6V
PP
/ 75 ohm jq
AV1 S-Video (Hosiden): Video Y/C - In
1 - Ground Y Gnd H
2 - Ground C Gnd H
3 - Video Y 1 V
PP
/ 75 ohm j
4 - Video C 0.3 V
PP
P / 75 ohm j
AV2 S-Video (Hosiden): Video Y/C - In
1 - Ground Y Gnd H
2 - Ground C Gnd H
3 - Video Y 1 V
PP
/ 75 ohm j
4 - Video C 0.3 V
PP
P / 75 ohm j
AV2 Cinch: Video CVBS - In, Audio - In
Ye - Video CVBS 1 V
PP
/ 75 ohm jq
Wh - Audio L 0.5 V
RMS
/ 10 kohm jq
Rd - Audio R 0.5 V
RMS
/ 10 kohm jq
AV3 Cinch: Video YPbPr - In
Rd - Video Pr 0.7 V
PP
/ 75 ohm jq
Bu - Video Pb 0.7 V
PP
/ 75 ohm jq
Gn - Video Y 1 V
PP
/ 75 ohm jq
F_15400_003.eps
070305
19
1
18 2
19
1
18 2
UART
OPTIONAL
HDMI 1 HDMI 2
ANTENNA
LAN
IEEE1394
POD SLOT
19
1
18 2
E_06532_017.eps
250505
F_15400_001.eps
250505
MONITOR OUT
S/PDIF
OUT
L R CVBS GEM
STAR
