Technical Specifications, Connections, and Chassis Overview
EN 4 BP2.2U, BP2.3U1.
DIGITAL AUDIO Cinch: S/PDIF - Out
Bk - Coaxial 0.4 - 0.6V
PP
/ 75 ohm kq
MONITOR OUT Cinch: Video CVBS - Out, Audio - Out
Ye - Video CVBS 1 V
PP
/ 75 ohm kq
Wh - Audio L 0.5 V
RMS
/10 kohm kq
Rd - Audio R 0.5 V
RMS
/ 10 kohm kq
GEMSTAR Mini Jack: Remote Control - In/Out
1 - Ground Gnd H
2 - RXD j
3-TXD k
4-IR-OUT k
5 - RXD k

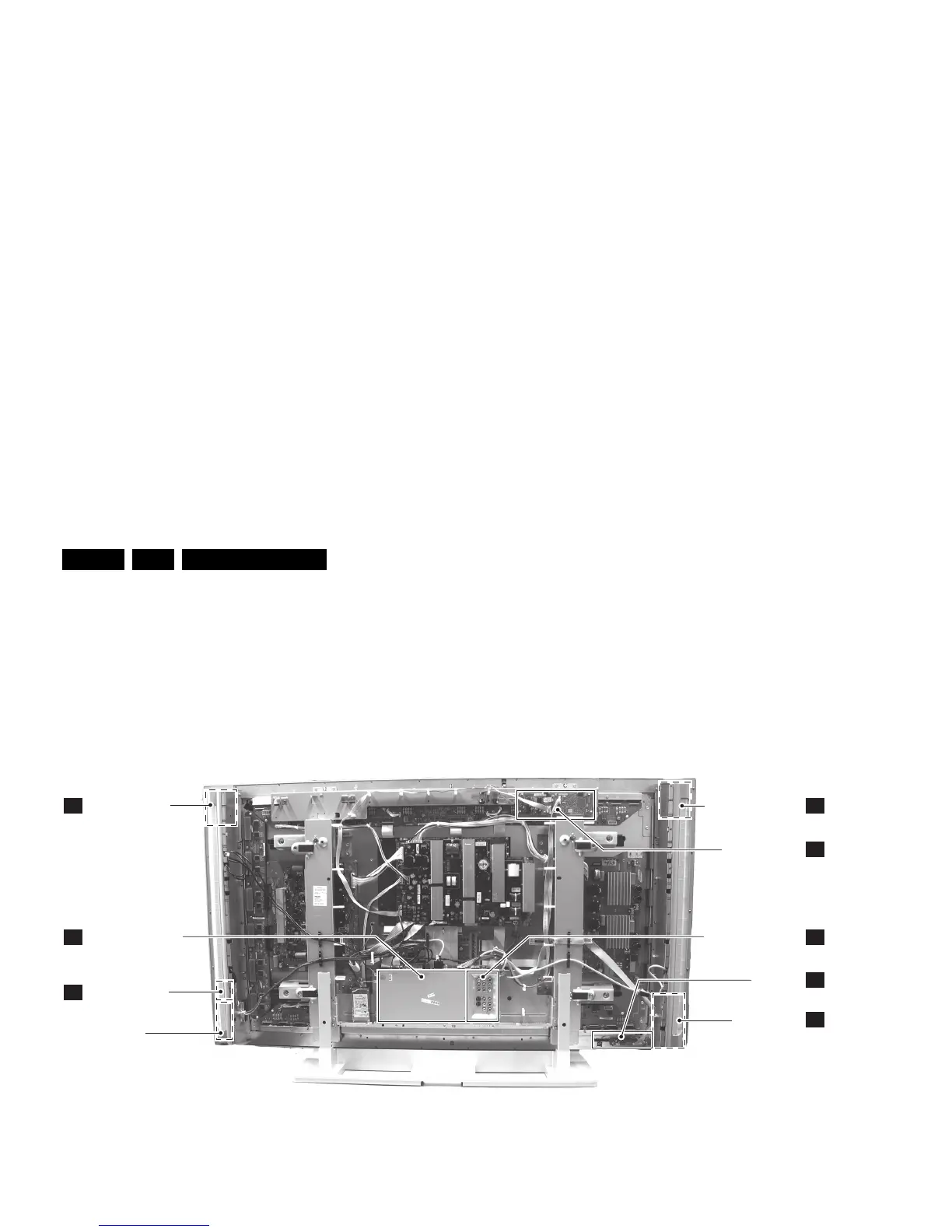

1.3 Chassis Overview
Figure 1-6 PWB/CBA locations
F_15400_110.eps
310505
AL
AMBI LIGHT PANEL
AL
AMBI LIGHT PANEL
E
CONTROL BOARD
B
SMALL SIGNAL PANEL
BE
EXTERNAL I/O PANEL
C
AUDIO AMPLIFIER
D
SIDE I/O PANEL
J
LED PANEL
MULTI MEDIA
CARD READER
& USB
(OPTIONAL)
(OPTIONAL)
(OPTIONAL)
