Philips DVDR3455H - Main Unit; Main Unit Identification; Recorder Rear Panel Jacks

English
11

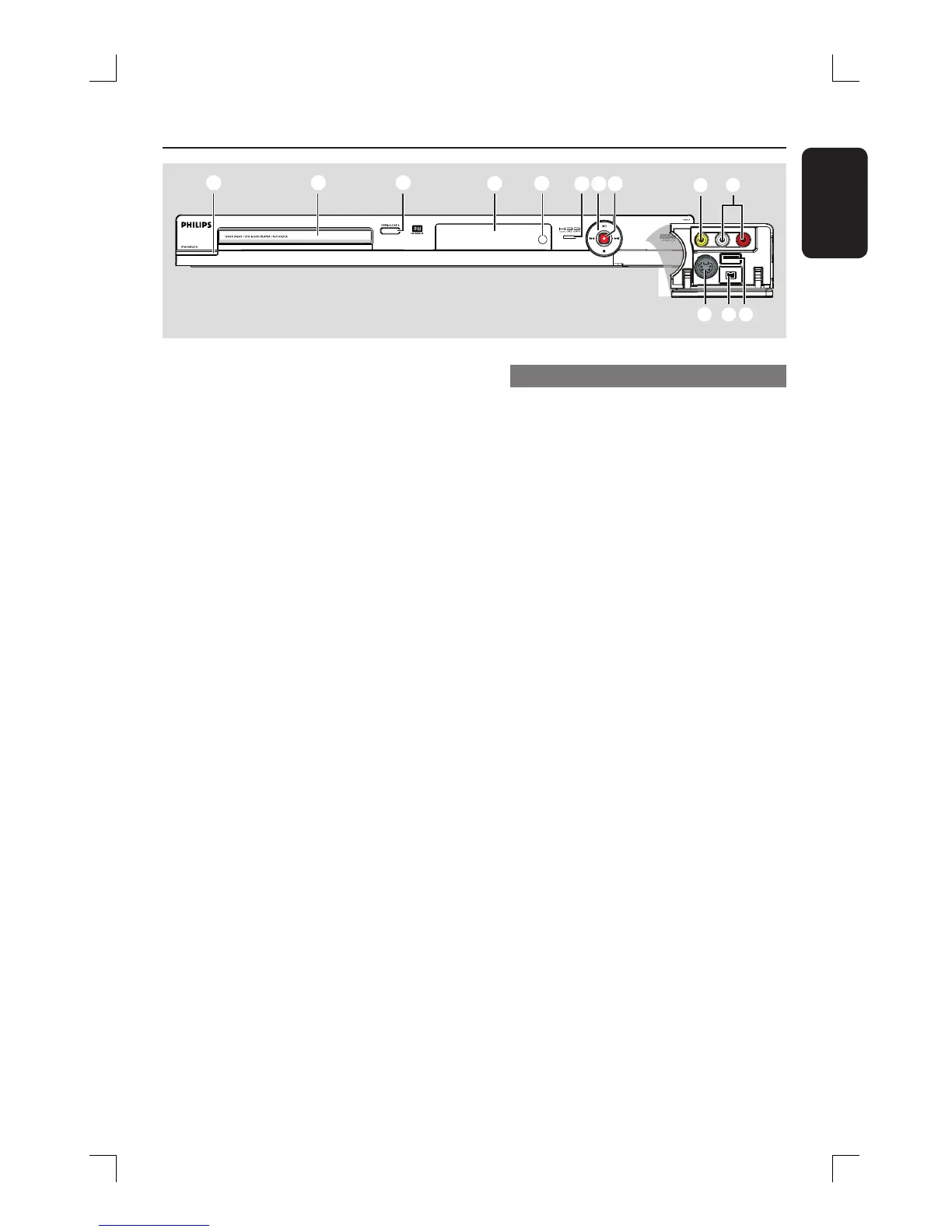

Main Unit
a
b
c
d
e
f
g
h
i
j
k
l
m
a
STANDBY-ON
– Turns on the recorder or switch to
standby mode.
b
Disc tray
c
OPEN/CLOSE ç
– Opens/closes the disc tray.
d
Display panel
– Show information about the current
status of the recorder.
e
IR
– Point the remote control towards this
sensor.
f
HDD Active indicator
– Blue indicator lights up while temporary
recording to the time shift buffer is in
progress.
g
u
– Starts playback of the selected title/track.
– Pauses playback of the selected title/
track.
. / >
– Skips to the previous or next chapter/
track, or hold down the key to make a
reverse/forward search.

– Stops playback/recording.
h

– Starts recording the current TV channel
or the current video input source.
– Red ring lights up while recording to the
HDD or a recordable DVD disc is in
progress.
Jacks behind the  ap
Flip down the door as indicated by the
OPEN
É
label at the right hand corner.
i
CAM1 (VIDEO)
– Video input for camcorders or video
recorders.
In tuner mode, press SOURCE on the
remote control repeatedly to select
‘CAM1’ when using this input source.
j
L/R AUDIO
– Audio input for camcorder or the audio/
video device which is connected to the
CAM1 or CAM2 jack.
k
CAM2 (S-VIDEO)
– S-video input for SVHS/Hi8 camcorders
or SVHS/Hi8 video recorders.
In tuner mode, press SOURCE on the
remote control repeatedly to select
‘CAM2’ when using this input source.
l
DV IN
– Input for digital camcorders or other
suitable devices using this connector.
Press USB/DV on the remote control
when using this input source.
m
USB
– Input for USB  ash drive / USB memory
card reader.
Press USB/DV on the remote control
when using this input source.
