Philips EasyKey 7000 Series - Installation Steps

4

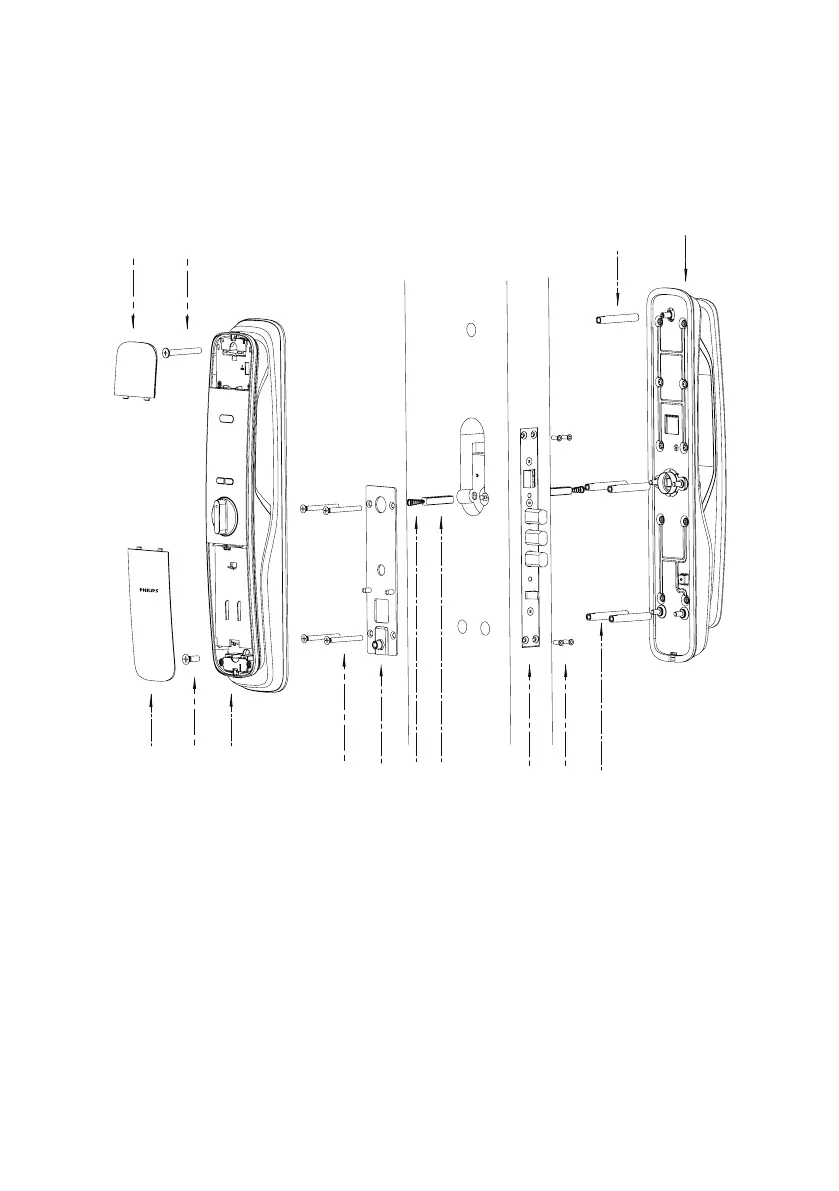

Exploded views
1.
2.
3.
4.
5.
6.
7.
Deco cover *1
M6 connecting screw*1
M6 connecting screw tube*1
Outside escutcheon*1
Battery cover*1
M6 mounting screw*1
Inside escutcheon*1
8.
9.
10.
11.
12.
13.
14.
Compressed spring *2
Square shaft*2
M5 connecting screw*4
Mounting plate*1
Mortise*1
Mortise anchor screw* 4
M5 connecting screw tube*4
2
1
3
4
5
6
7
8
9
10
11
12 14
13
