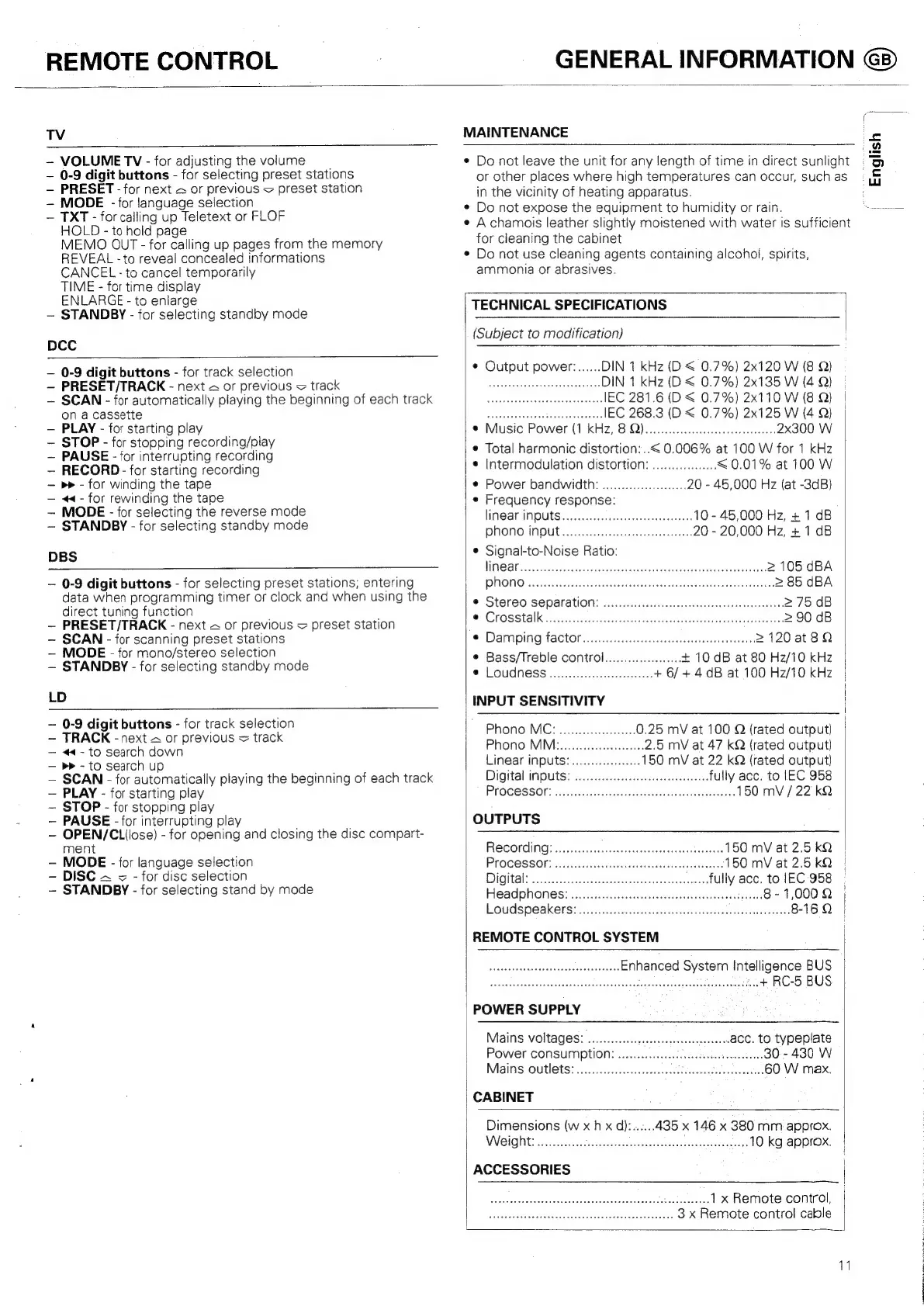

REMOTE CONTROL
GENERAL INFORMATION
TV
MAINTENANCE
~ VOLUME TV - for adjusting the volume
— 0-9 digit buttons - for selecting preset stations
— PRESET - for next - or previous = preset station
~ MODE - for language selection
— TXT - for calling up Teletext or FLOF
HOLD - to hold page
MEMO OUT - for calling up pages from the memory
REVEAL - to reveal concealed informations
CANCEL - to cancel temporarily
TIME - for time display
ENLARGE - to enlarge
— STANDBY - for selecting standby mode
DCC
— 0-9 digit buttons - for track selection
~— PRESET/TRACK - next & or previous = track
— SCAN - for automatically playing the beginning of each track
on a Cassette
— PLAY - for starting play
~ STOP - for stopping recording/play
~ PAUSE - for interrupting recording
— RECORD - for starting recording
— »» - for winding the tape
— <4 - for rewinding the tape
— MODE - for selecting the reverse mode
~ STANDBY - for selecting standby mode
DBS
— 0-9 digit buttons - for selecting preset stations; entering
data when programming timer or clock and when using the
direct tuning function
~ PRESET/TRACK - next ~ or previous = preset station
~ SCAN - for scanning preset stations
— MODE - for mono/stereo selection
— STANDBY - for selecting standby mode
LD
— 0-9 digit buttons - for track selection
— TRACK - next « or previous = track
~ «4- to search down
— p>» - to search up
— SCAN - for automatically playing the beginning of each track
— PLAY - for starting play
— STOP - for stopping play
— PAUSE - for interrupting play
— OPEN/CLilose) - for opening and closing the disc compart-
ment
— MODE - for language selection
- DISC ~ < - for disc selection
— STANDBY - for selecting stand by mode
e Do not leave the unit for any length of time in direct sunlight
or other places where high temperatures can occur, such as
in the vicinity of heating apparatus.
e Do not expose the equipment to humidity or rain.
¢ Achamois leather slightly moistened with water is sufficient
for cleaning the cabinet
e Do not use cleaning agents containing alcohol, spirits,
ammonia or abrasives.
TECHNICAL SPECIFICATIONS
(Subject to modification)
¢ Output power....... DIN 1 kHz (D < 0.7%) 2x120 W (8 Q)
eer tiscni te DIN 1 kHz (D < 0.7%) 2x135 W (4 Q)
sibtels leben uaacers tected IEC 281.6 (D< 0.7%) 2x110 W (8 Q}
sattl eedsty Seis oie IEC 268.3 (D < 0.7%) 2x125 W (4 Q)
© Music Power (1 KHZ, 8 Q)...ccccecceceeeeetseeeen 2x300 W
e Total harmonic distortion:..< 0.006% at 100 W for 1 kHz
e Intermodulation distortion: .........0.. < 0.01% at 100 W
¢ Power bandwidth: .........0....cc 20 - 45,000 Hz (at -3dB)
* Frequency response:
IIN@Ar INPUTS ...... cee eeceeeeeeeceeeereeees 10 - 45,000 Hz, + 1 dB
PHONO INPUt on... eee cece eee e ees 20 - 20,000 Hz, + 1 dB
e Signal-to-Noise Ratio:
WINGS oa eee hice Gate cess Ses 2105 dBA
PN ONO: fe sateen Ses cectancataeoeeas sella ces cdaeanviseecs 285 dBA
© StereO SEPAratiON: o.oo ec eeeeeeeeeeeeteeeeteeeeeeeenate >75 dB
© CrOSStal Ki cts cass cosssaisaetisrtotag feeydoncss ica taituasataereettes > 90 dB
© Damping factor... eececesceteesteeeecenees 2120 at8Q
e Bass/Treble control... + 10 dB at 80 H2/10 kHz
@: OUGDNESS 005. adcevet eedeede + 6/ + 4 dB at 100 Hz/10 kHz
INPUT SENSITIVITY
Phono MCE veeccsseecseteesee 0.25 mV at 100 Q (rated output)
Phono MM1:.......cceeeeeee 2.5 mV at 47 kQ (rated output)
Linear inputs: ....... 150 mV at 22 kQ (rated output)
Digital iNPUtS: ...... eee eeeeeeeeeteeeenes fully acc. to IEC 958
POGOSSOM? sccslseteusessstevccaMadedscistadetactentag nas 150 mV / 22 kQ
OUTPUTS
RECOLGING:s sccc.srtiecatereteeeocmetiaphdeeiies 150 mV at 2.5 kQ |
PLOCOSSON Massie avis seteate daca 150 mV at 2.5 kQ |
Digitales. isa. secieateatd at ate andes fully acc. tolEC 958 ~
Headpnonesis.:.i.0tase keisiicdiceithauseenen 8-1,000Q ;
Loudspeakers! i casiinsia ate avun decreases 8-162 |
REMOTE CONTROL SYSTEM |
budddentecteueenddaagiecenae Enhanced System Intelligence BUS |
Soncdiatth death ands zocectoustineyteddicet specu sha uses eee + RC-5 BUS
POWER SUPPLY
Mains Voltages: .........csecgeccsscesnseesstseeeeest acc. to typeplate
POWET CONSUMPTION: eect ecedeeneteeneetenes 30 - 430 W
Mains Outlets: ........ cc ceccceccsesscceesetsccesterenueses 60 W max.
CABINET
Dimensions (w x h x d):......435 x 146 x 380 mm approx.
VVCIGNt caren Ree et tent batee te 10 kg approx. |
ACCESSORIES
Bio D A ie eh BU ee hated Seen 1 x Remote control,
i wile aden oeinaa Svan’ «nubian cinta cetawesantetiavs 3 x Remote control cable
