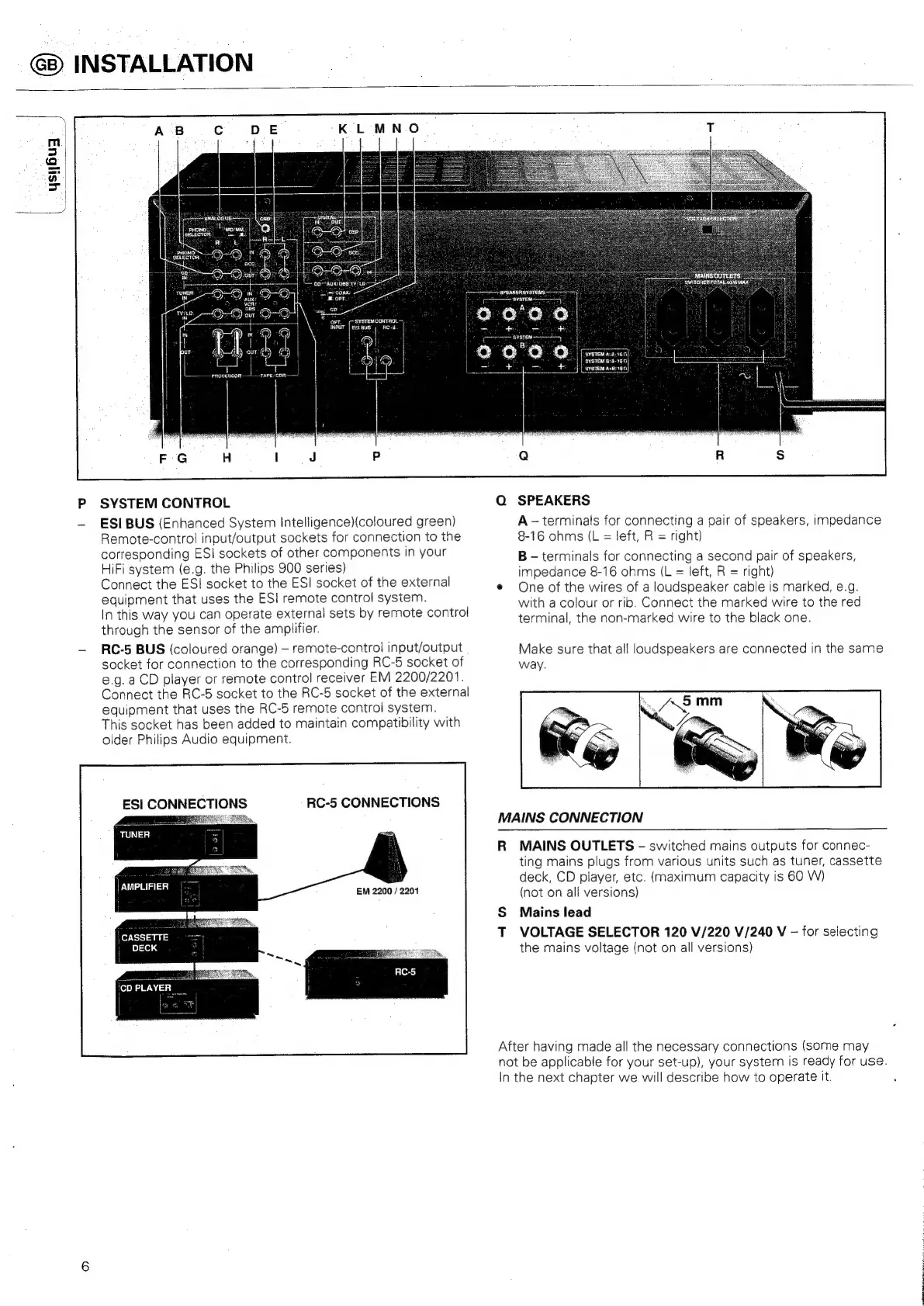

INSTALLATION
_/
ysi6uq
c
AB Cc ODE KLMNO_
FG H I J P
SYSTEM CONTROL
ESI BUS (Enhanced System Intelligence)(coloured green)
Remote-control
input/output
sockets
for
connection
to
the
corresponding
ES!
sockets
of
other
components
in
your
HiFi system (e.g. the Philips 900 series)
Connect
the
ES!
socket
to
the
ESI
socket
of
the
external
equipment
that
uses
the
ES!
remote
control
system.
In
this
way
you
can
operate
external
sets
by
remote
control
through
the
sensor
of
the
amplifier.
RC-5 BUS (coloured orange) — remote-control input/output
socket
for
connection
to
the
corresponding
RC-5
socket
of
e.g.
a
CD
player
or
remote
control
receiver
EM
2200/2201.
Connect
the
RC-5
socket
to
the
RC-5
socket
of
the
external
equipment that uses the RC-5 remote control system.
This socket has been added to maintain compatibility with
older Philips Audio equipment.
ESI CONNECTIONS RC-5 CONNECTIONS
LS SS
“TUNER
EM 2200 / 2201
omere
ome te
Q R Ss
Q SPEAKERS
A -— terminals for connecting a pair of speakers, impedance
8-16 ohms (L = left, R = right)
B —- terminals for connecting a second pair of speakers,
impedance 8-16 ohms (L = left, R = right)
¢ One of the wires of a loudspeaker cable is marked, e.g.
with a colour or rib. Connect the marked wire to the red
terminal, the non-marked wire to the black one.
Make sure that al! loudspeakers are connected in the same
way.
MAINS CONNECTION
R MAINS OUTLETS - switched mains outputs for connec-
ting mains plugs from various units such as tuner, cassette
deck, CD player, etc. (maximum capacity is 60 W)
(not on all versions)
S Mains lead
T VOLTAGE SELECTOR 120 V/220 V/240 V - for selecting
the mains voltage (not on all versions}
After having made all the necessary connections (some may
not be applicable for your set-up), your system is ready for use.
In the next chapter we will describe how to operate it.
