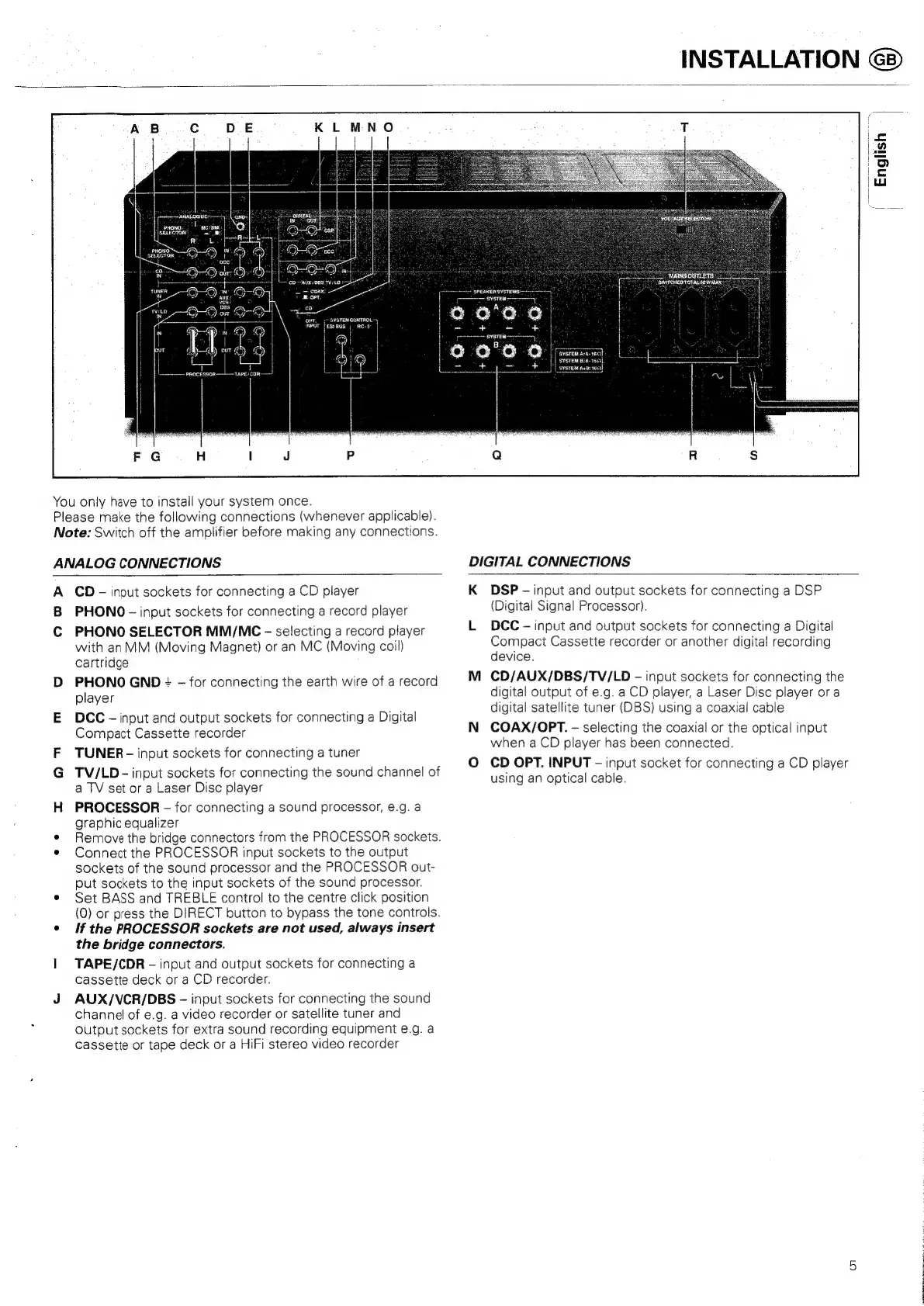

INSTALLATION
A B c DE K LMNO
You only have to install your system once.
Please make the following connections (whenever applicable).
Note: Switch off the amplifier before making any connections.
ANALOG CONNECTIONS
DIGITAL CONNECTIONS
A CD - input sockets for connecting a CD player
B PHONO - input sockets for connecting a record player
C PHONO SELECTOR MM/MC - selecting a record player
with an MM (Moving Magnet) or an MC (Moving coil)
cartridge
D PHONO GND = — for connecting the earth wire of a record
player
DCC — input and output sockets for connecting a Digital
Compact Cassette recorder
TUNER - input sockets for connecting a tuner
TV/LD - input sockets for connecting the sound channel of
a TV set or a Laser Disc player
H PROCESSOR ~ for connecting a sound processor, e.g. a
graphic equalizer
on m
* Connect the PROCESSOR input sockets to the output
sockets of the sound processor and the PROCESSOR out-
put sockets to the input sockets of the sound processor.
e Set BASS and TREBLE control to the centre click position
(0) or press the DIRECT button to bypass the tone controls.
¢ If the PROCESSOR sockets are not used, always insert
the bridge connectors.
| TAPE/CDR - input and output sockets for connecting 4
cassette deck or a CD recorder.
J AUX/VCR/DBS - input sockets for connecting the sound
channel of e.g. a video recorder or satellite tuner and
output sockets for extra sound recording equipment e.g. a
cassette or tape deck or a HiFi stereo video recorder
Remove the bridge connectors from the PROCESSOR sockets.
K DSP — input and output sockets for connecting a DSP
(Digital Signal Processor).
L DCC - input and output sockets for connecting a Digital
Compact Cassette recorder or another digital recording
device.
M CD/AUX/DBS/TV/LD - input sockets for connecting the
digital output of e.g. a CD player, a Laser Disc player ora
digital satellite tuner (DBS) using a coaxial cable
N COAX/OPT. - selecting the coaxial or the optical input
when a CD player has been connected.
O CD OPT. INPUT - input socket for connecting a CD player
using an optical cable.
