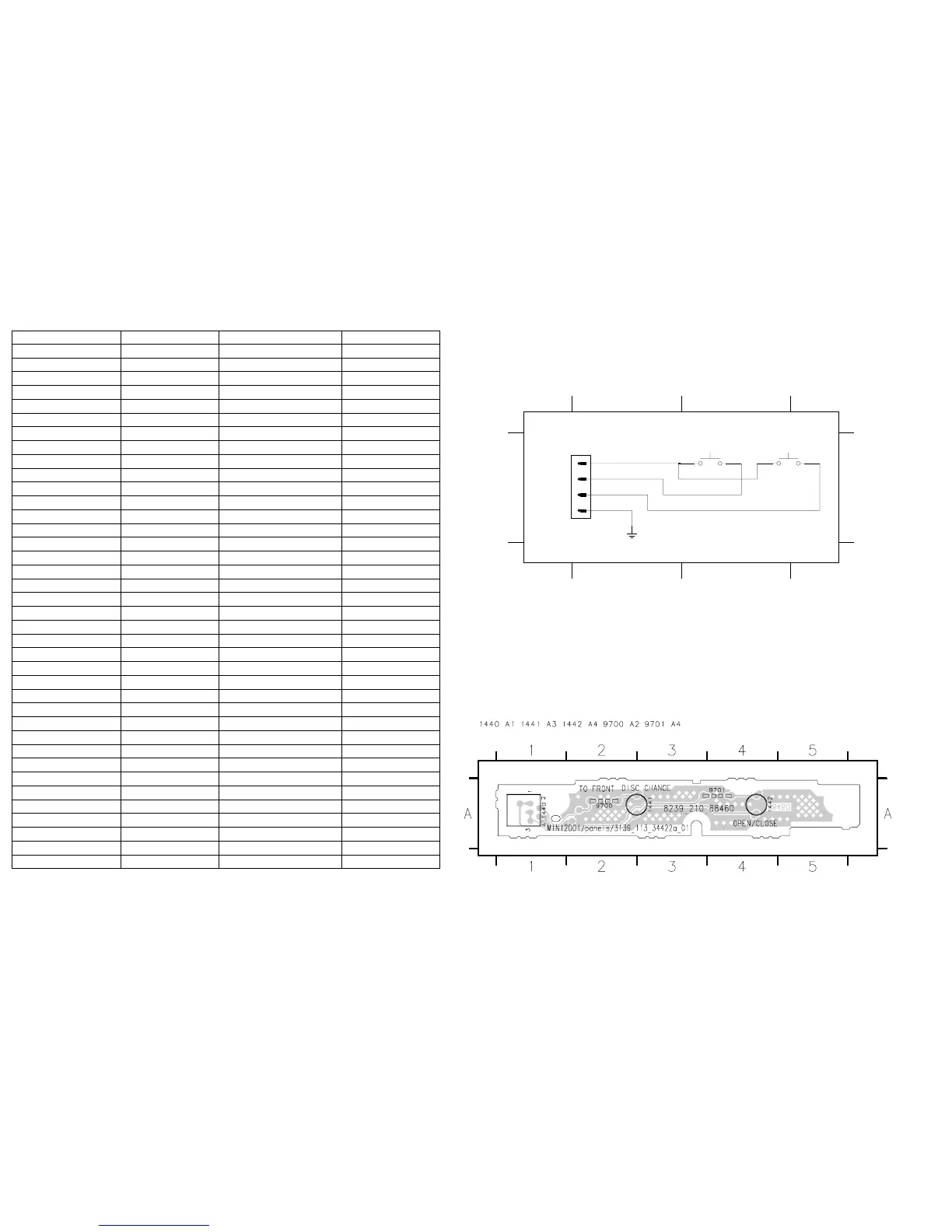

Philips FWM390 - Variation Table; Key-CDC Part - Circuit Diagram; Key-CDC Part - Component Layout

6-2
6-2
This assembly drawing shows a summary of all possible versions. For components used in a specific version see
schematic diagram and respective parts list.
3139 113 3442 pt 2a dd wk147
KEY-CDC PART - COMPONENT LAYOUT
KEY-CDC PART - CIRCUIT DIAGRAM
DISC CHANGE OPEN/CLOSE
12
12
A
1440 A1 1441 A2 1442 A2
D
P04x
KEY1
KEY2
GND_D
FE-ST-VK-N
1
2
1440
3
4
1441 1442
A
3139 118 53880 ... 88460 ...3442 pt 2a dd wk147
VARIATION TABLE
Item No / Features FWM390/30 FWM390/21 FWM390/22/25
RDS / News - - x
Simple Karaoke - x -
Mic Detect - x -
1409 x x x
1424 - - -
1425 - - x
1427 - - x
1437 - - -
3486 1k 1k 1k
3511 10k 10k -
3530 - - 330R
3531 10k 10k 10k
3581 10k 10k -
3595 - - -
3808 - - 820R
4402 - - -
4404 - - -
6400 x x x
6403 x x x
6426 - - x
6440 - x -
6441 x x x
6447 x x x
6448 x x x
9402 - - x
9404 - - x
9405 - - x
9406 - - x
9407 - - -
9408 x x x
9409 - - -
9410 x x x
9411 - - -
9462 - - -
9488 x x x
9505 - - -
9508 - - x
9509 - - x
x - item in use
