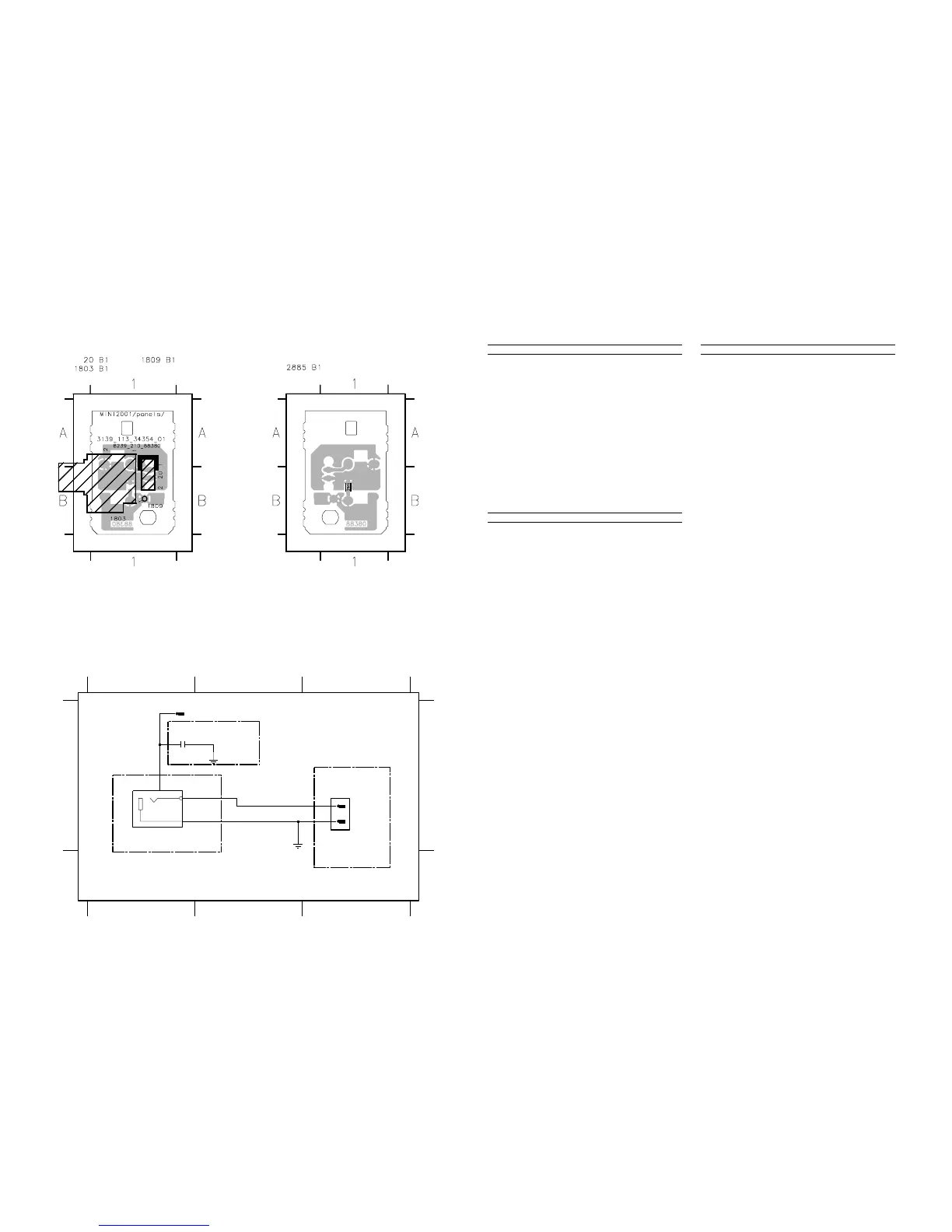

VIDEO OUT PART - COMPONENT & CHIP LAYOUTS
CIRCUIT DIAGRAM - VIDEO OUT PART
3139 113 3435 pt4 dd wk0123
This assembly drawing shows a summary of all possible versions.
For components used in a specific version see schematic diagram
and respective parts list.
3139 113 3435 pt4 dd wk0123
This assembly drawing shows a summary of all possible versions.
For components used in a specific version see schematic diagram
and respective parts list.
3
CE50
1
CM50
23
AA
20 A3
CW50
1803 A1 1809 A1 2885 A1
12
1
2
2885
100p
1803
YKC21-3564
3
2
1
DIPMATE
20
1809
1
ELECTRICAL PARTSLIST - AF-9 BOARD
- MISCELLANEOUS - - CAPACITORS -
1100 4822 267 10676 CONNECTOR 2535 4822 124 40769 4,7µF 20% 100V
1102 4822 267 10676 CONNECTOR 2536 4822 124 40769 4,7µF 20% 100V
1103 4822 267 10676 CONNECTOR 2541 4822 124 41407 0,47µF 20% 63V
1204 2422 025 17467 CONNECTOR V 8P 2542 4822 124 41407 0,47µF 20% 63V
1206 4822 267 11039 CONNECTOR 2543 5322 126 11583 10nF 10% X7R 50V
1401 4822 265 11553 CONNECTOR 19P 2544 5322 126 11583 10nF 10% X7R 50V
1402 4822 267 11039 CONNECTOR 11P 2546 4822 121 43856 4,7nF 5% 250V
1501 4822 265 20553 CONNECTOR 2547 5322 126 11579 3,3nF 10% X7R 63V
1506 2412 020 00724 CONNECTOR V 2P 2548 5322 126 11579 3,3nF 10%X7R 63V
1520 4822 265 11515 CONNECTOR V 8P 2565 4822 121 43856 4,7nF 5% 250V
1523 4822 265 10981 CONNECTOR 2567 3198 016 31020 1nF NP0 25V
1531 4822 267 10953 CONNECTOR 2568 3198 016 31020 1nF NP0 25V
1603 4822 267 10733 CONNECTOR 2589 4822 121 42408 220nF 5% 63V
2590 4822 121 42408 220nF 5% 63V
- CAPACITORS - 2591 5322 121 42661 330nF 5% 63V
2201 4822 124 40207 100µF 20% 25V 2592 5322 121 42661 330nF 5% 63V
2202 4822 124 81151 22µF 50V 2593 4822 121 51252 470nF 5% 63V
2203 4822 124 40433 47µF 20% 25V 2594 4822 121 51252 470nF 5% 63V
2204 4822 124 40196 220µF 20% 16V 2601 3198 016 31020 1nF NP0 25V
2205 4822 126 14238 2,2nF X7R 50V 2602 3198 016 31020 1nF NP0 25V
2206 2238 916 15641 22nF 10%X7R 25V 2603 4822 124 81151 22µF 50V
2207 4822 124 40433 47µF 20% 25V 2604 4822 124 81151 22µF 50V
2208 4822 126 13879 220nF +80-20% 16V 2605 2020 552 94427 100pF 5% NP0 50V
2209 4822 124 41751 47µF 20% 50V 2606 2020 552 94427 100pF 5% NP0 50V
2210 4822 126 13879 220nF +80-20% 16V 2607 4822 126 13881 470pF 5% 50V
2401 2020 552 94427 100pF 5% NP0 50V 2608 4822 126 13881 470pF 5% 50V
2402 2020 552 94427 100pF 5% NP0 50V 2609 4822 126 14508 180pF 5% 50V NP0
2403 2238 586 59812 100nF +80-20% Y5V 50V 2610 4822 126 14508 180pF 5% 50V NP0
2404 2238 586 59812 100nF +80-20% Y5V 50V 2611 4822 124 81151 22µF 50V
2501 2020 552 94427 100pF 5% NP0 50V 2612 4822 124 81151 22µF 50V
2502 2020 552 94427 100pF 5% NP0 50V 2621 4822 124 81151 22µF 50V
2503 2022 020 00734 1µF 20% 50V 2622 4822 126 13881 100pF 5% NP0 50V
2504 2022 020 00734 1µF 20% 50V 2623 4822 124 40433 47µF 20% 25V
2505 2020 552 94427 100pF 5% NP0 50V 2624 3198 017 42230 22nF Y5V 50V
2506 2020 552 94427 100pF 5% NP0 50V 2625 4822 124 40207 100µF 20% 25V
2507 2238 586 59812 100nF +80-20% Y5V 50V 2626 4822 124 40769 4,7µF 20% 100V
2511 2022 020 00734 1µF 20% 50V 2641 3198 016 31020 1nF NP0 25V
2512 2022 020 00734 1µF 20% 50V 2642 3198 016 31020 1nF NP0 25V
2513 3198 016 31020 1nF NP0 25V 2653 2020 552 94427 100pF 5% NP0 50V
2514 3198 016 31020 1nF NP0 25V 2654 2020 552 94427 100pF 5% NP0 50V
2515 2020 552 94427 100pF 5% NP0 50V 2669 2238 586 59812 100nF +80-20% Y5V 50V
2516 2020 552 94427 100pF 5% NP0 50V 2681 4822 124 40433 47µF 20% 25V
2521 2238 586 59812 100nF +80-20% Y5V 50V 2682 4822 122 33752 15pF 5% NP0 50V
2522 2238 586 59812 100nF +80-20% Y5V 50V 2683 2238 586 59812 100nF +80-20% Y5V 50V
2523 2020 552 94427 100pF 5% NP0 50V 2691 2020 552 94427 100pF 5% NP0 50V
2524 2020 552 94427 100pF 5% NP0 50V 2707 2020 552 94427 100pF 5% NP0 50V
2531 4822 124 40769 4,7µF 20% 100V 2708 2020 552 94427 100pF 5% NP0 50V
2532 4822 124 40769 4,7µF 20% 100V 2771 4822 124 41407 0,47µF 20% 63V
2533 2020 552 94427 100pF 5% NP0 50V 2902 3198 017 44740 470nF Y5V 10V
2534 2020 552 94427 100pF 5% NP0 50V 2905 3198 017 42230 22nF Y5V 50V
