Philips HD8841/09 - Gear Motor; Pump

PHILIPS 4000 07 DISASSEMBLY
5/7

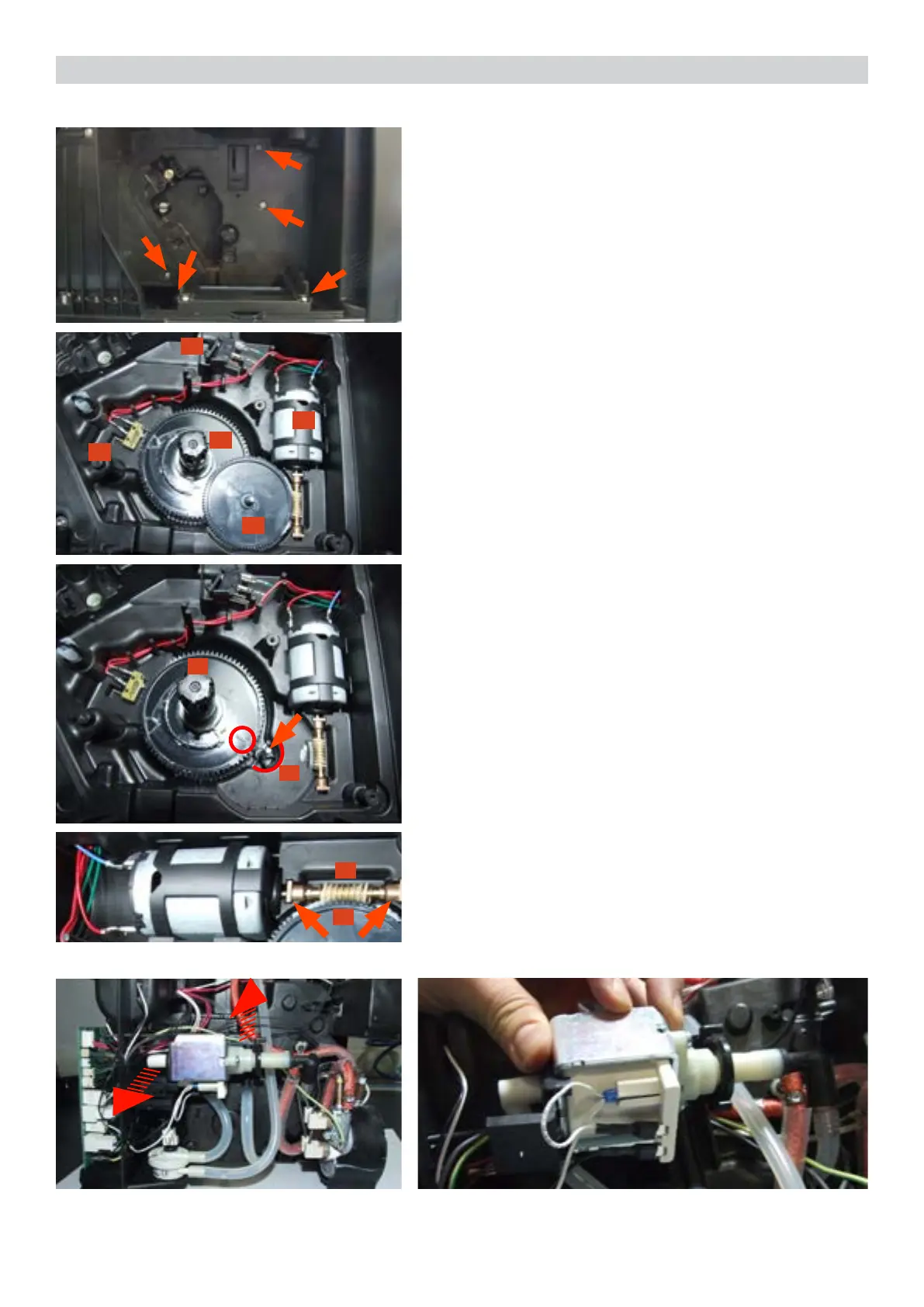

e following are located inside the compartment protected
by the casing:
- Electric motor (A) with gears (B) and (C) for transmission
and timing of the dispenser.
- Brewing unit present microswitch (E).
- Microswitch (D) detecting brewing unit home and work
positions.
- Remove the gear (C) that meshes with the motor transmis-
sion sha.
- Remove the large gear (B).
- Remove the motor (A), complete with transmission sha.
Replace the gear (B), making sure that the imprint of the ar-
row is aligned with the opening containing the pin (P).
When replacing the motor and the transmission sha, make
sure the guide runners (L) are in the right position.
Grease the sha thoroughly and evenly.
E
A
B
C
D
B
P
H
L
7.9. Gear motor
Loosen the screws as illustrated and remove the gear motor
cover.
7.10. Pump
Disconnect the water circuit connections (A) and electrical
connections (B), loosen the safety valve (C) and slide the
pump o the brackets (D).
Unhook the pump from the supports.
