6. UNDERSTANDING YOUR DISPLAY
6.1 Front View
Power (Standby) Button
Turns power on/off from standby mode.
There is a 3-second wait between on/off cycles.
Status LED:
• Not Illuminated - No AC Power
detected
If the main power switch (rear of panel) is
turned off, this LED will not illuminate.
• Solid Yellow - Standby (Power OFF)
with AC power detected
The LED will illuminate in yellow color if the
display is shut-off but the main power cord is
plugged into the back of the unit.
• Solid Green - Power ON
• Input Button
Use this button to switch between available
inputs.
• Menu +/- Buttons
Use this menu to engage the On Screen
Display menu.
• Volume Adjustment +/- Buttons
Use these buttons to adjust volume up and
down.
These buttons also serve as adjustment
buttons when the On Screen Display is
engaged.

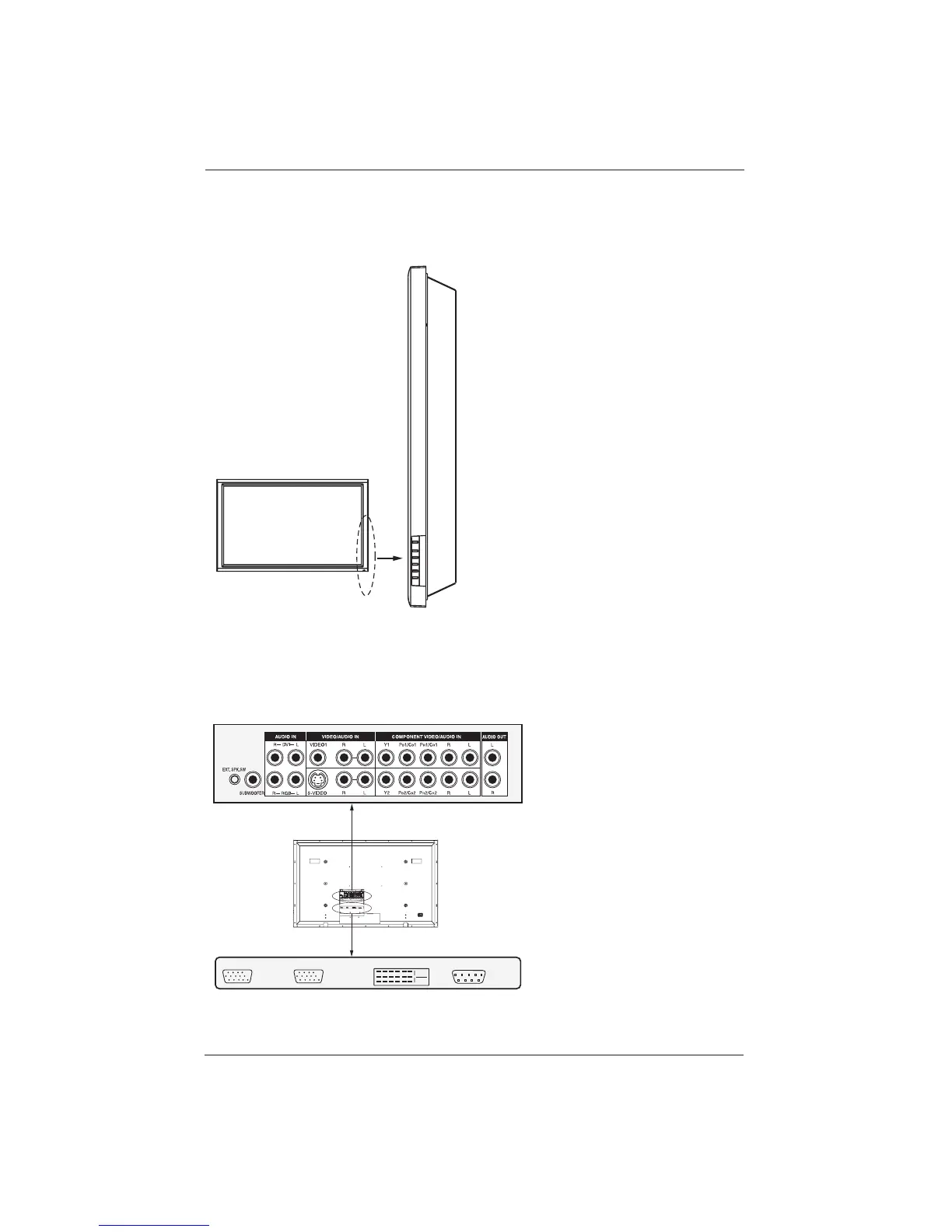

6.2 Rear View
RGB OUTRGB IN RS-232DVI IN
VIDEO CONNECTORS
RGB OUTRGB IN RS-232DVI IN
RGB / COMPUTER RELATED CONNECTORS
To Next Page
