7. CONNECTING THE DISPLAY

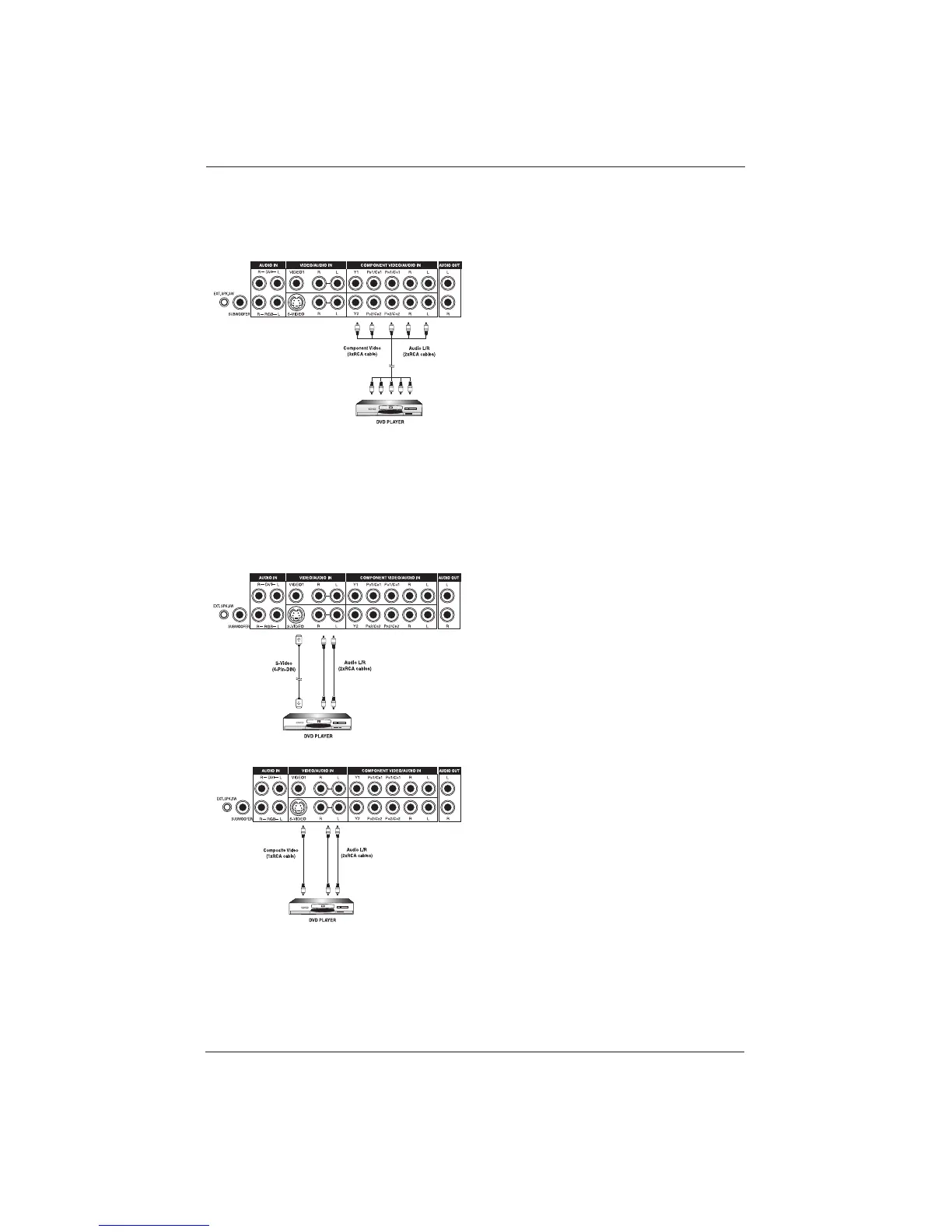

7.1 Connecting a DVD Player
Using Component Video Input
1. Connect the green-colored (labeled as Y)
jack from the DVD to the green-colored
Y1-jack of the display.
2. Connect the red-colored (labeled as PR or
CR) jack from the DVD to the red-colored
PR1/CR1 jack of the display.
3. Connect the blue-colored (labeled as PB or
CB) jack from the DVD to the blue-colored
PB1/CB1 jack of the display.
4. Connect the red (R) and white (L) audio
jacks from the DVD to the R and L audio-in
jacks located next to the PR1/CR1 connec-
tor.
Note:
There are two sets of component inputs
provided.You can use either set of
component inputs to connect your DVD.
Using S-Video Input
1. Connect the S-Video (4-pin DIN) connector
from the DVD to the S-VIDEO input on
the back of display.
2. Connect the red (R) and white (L) audio
jacks from the DVD to the R and L audio-in
jacks located next to the S-VIDEO connec-
tor.
Using Composite (AV) Video Input
1. Connect the yellow (video) connector from
the DVD to the yellow VIDEO 1 input on
the back of display.
2. Connect the red (R) and white (L) audio
jacks from the DVD to the R and L audio-in
jacks located next to the yellow VIDEO 1
connector.
15
User Manual BDH5011
