Philips HP L1502 - Repair Flow Chart (Continued); Bad brightness; Bad image

29
HP L1502
Go to cover page

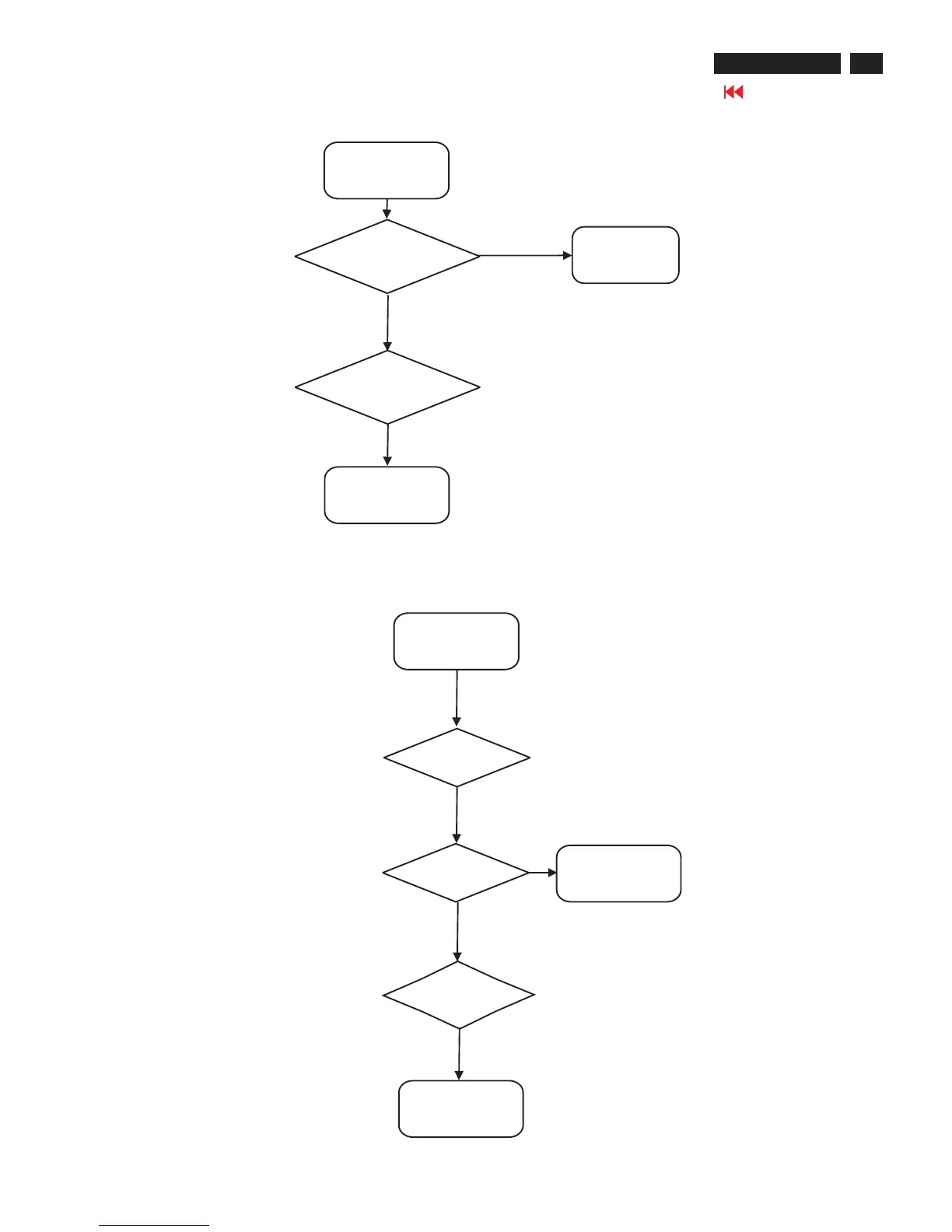

Repair Flow Chart (Continued)
Bad brightness
Check
Inverter panel output
625~765Vrms
No
Yes
Bad Inverter
panel
Check fluorescent
lamp
Bad image
Check
Video,fh/fv
signals
Yes
Yes
Check LCD panel
No
No
Check LCD panel
Check
all connectors &
LVDS cable
No
Check main panel
Check components
cold soldering
