Philips HTS3100 Series User Manual

EN 12
3139 785 318714.

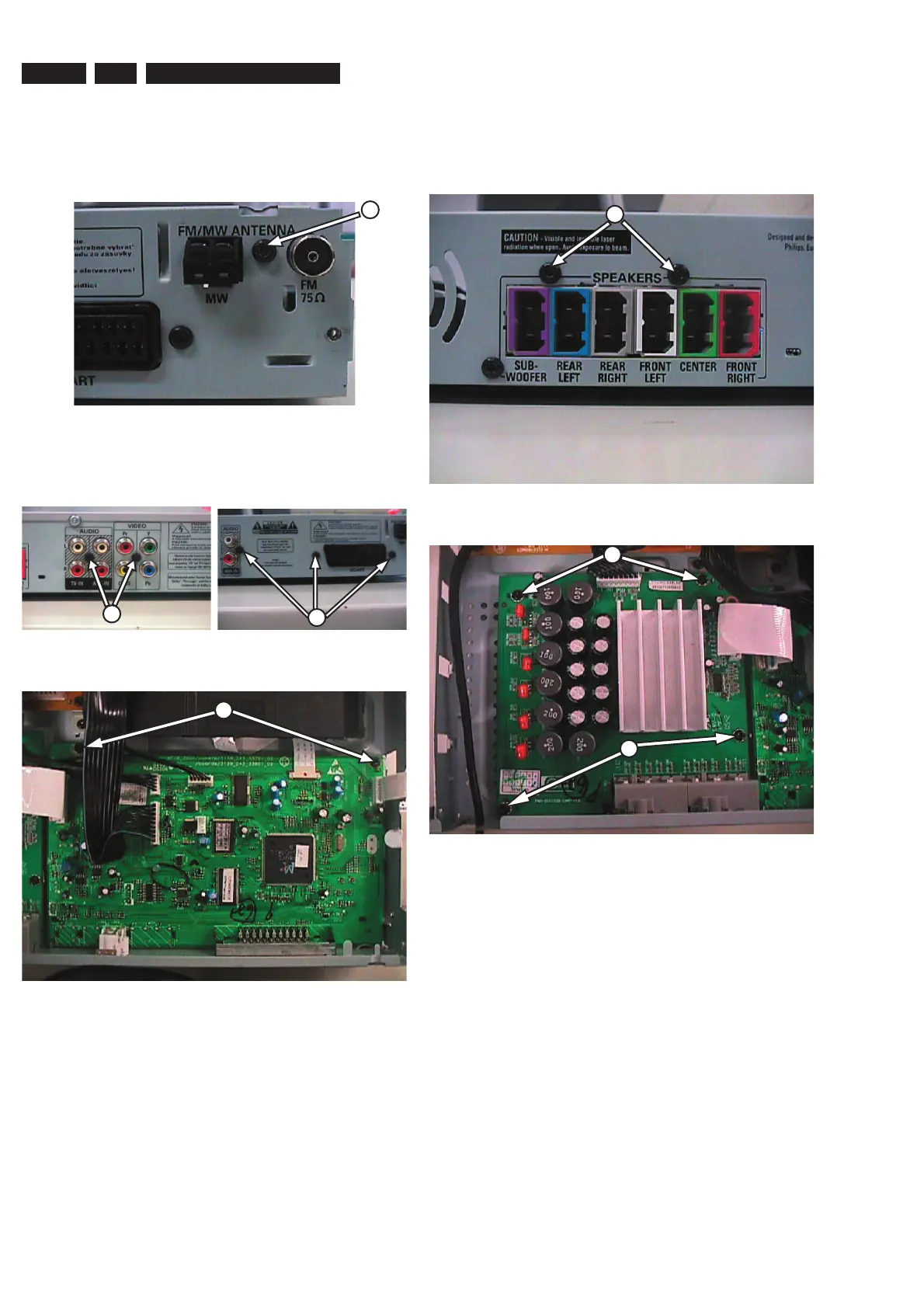

Dismantling Instructions & Service Positions
4.3
Dismantling of the Tuner Module & Mono
Board.
1) Loosen 1 screw C (See Figure 4-5) to remove the Tuner
Module.
Figure 4-5
2) Loosen 2 screws D and E (See Figure 4-6 & Figure 4-7)
to remove the Mono Board.
Figure 4-6(AP) Figure 4-6(Europe)
Figure 4-7
D
C
E
F
4.4 Dismantling of the Amp-module Board
1) Loosen 4 screws F and 2 screws G (See Figure 4-8 &
Figure 4-9) to remove Amp-Module Board.
Figure 4-8
Figure 4-9
G
H
H
