Overview - Modulator, Input/Output and Headphone/Line Output
Connectors

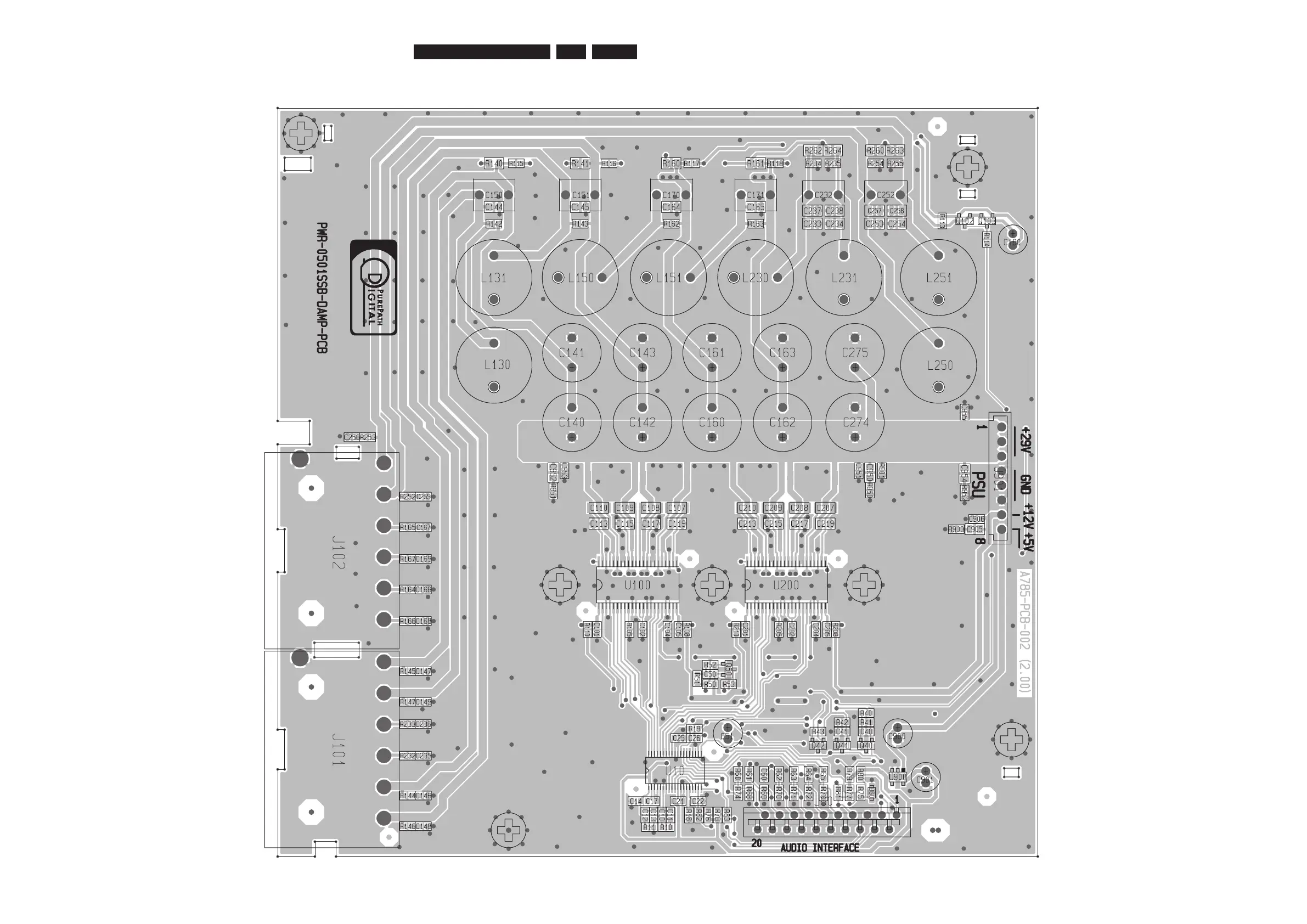

Amp Board Layout : Topview
A785-PCB-002(2.00)_pg4-5.pdf
