Measurements Setup, Service Aid & Lead Free Requirements
2.

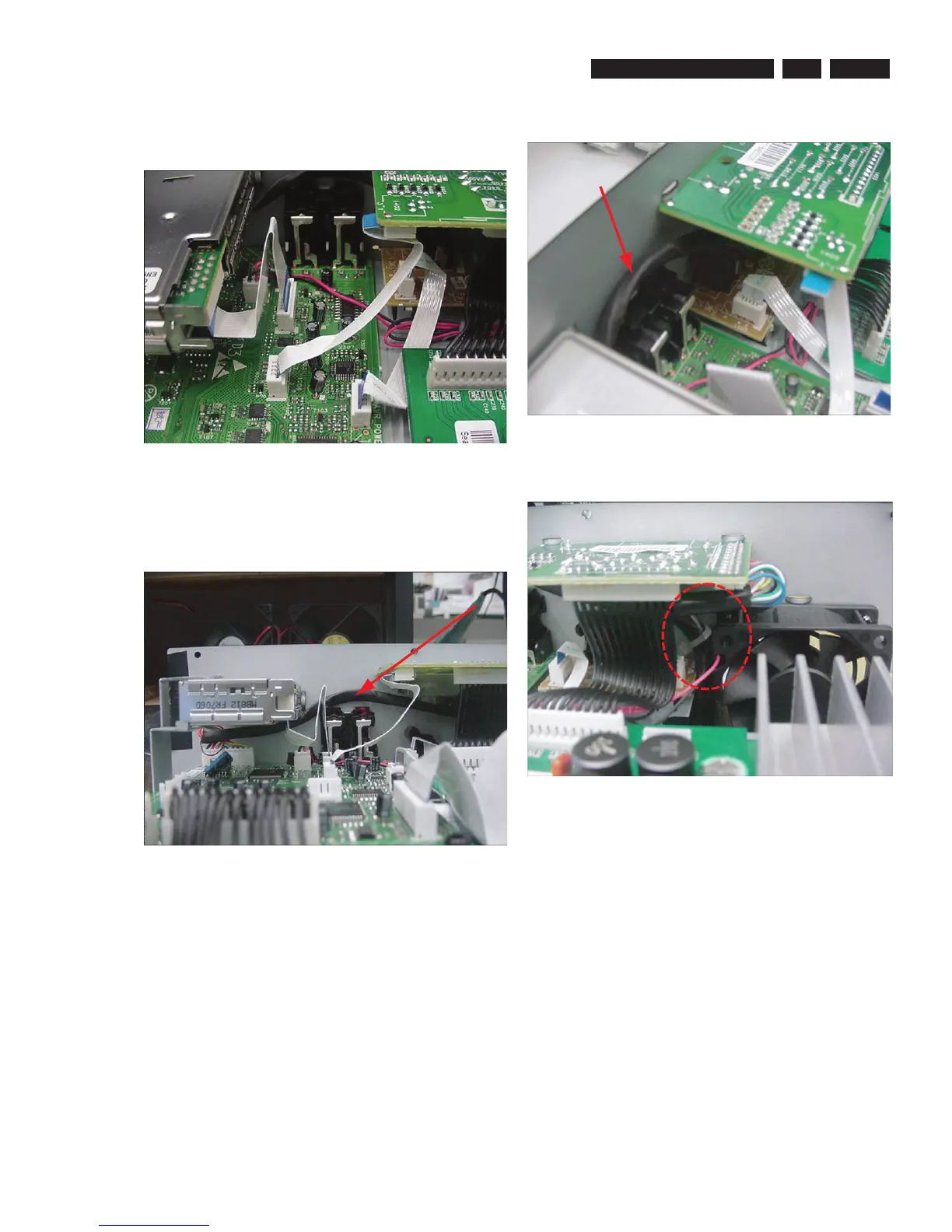

5) For the FFC cables from the Audio BD to Tuner/Speaker/
AIO BD, fold as indicated, hence, preventing them from
touching the Audio BD itself.
Figure 2-5
6) For the 9 pole cable linking from the Main Unit to the
Power Box, tuck it underneath the tuner and above the
4 pole cinch connector and also making it as close as
possible to the back metal plate.
Figure 2-6
7) For reference to point 6).
Figure 2-7
8) The cables should be tied as indicated.
Figure 2-8
To Next Page
