9) With reference to point 8), all cables should refrain from
touching or even getting near to the PSU.

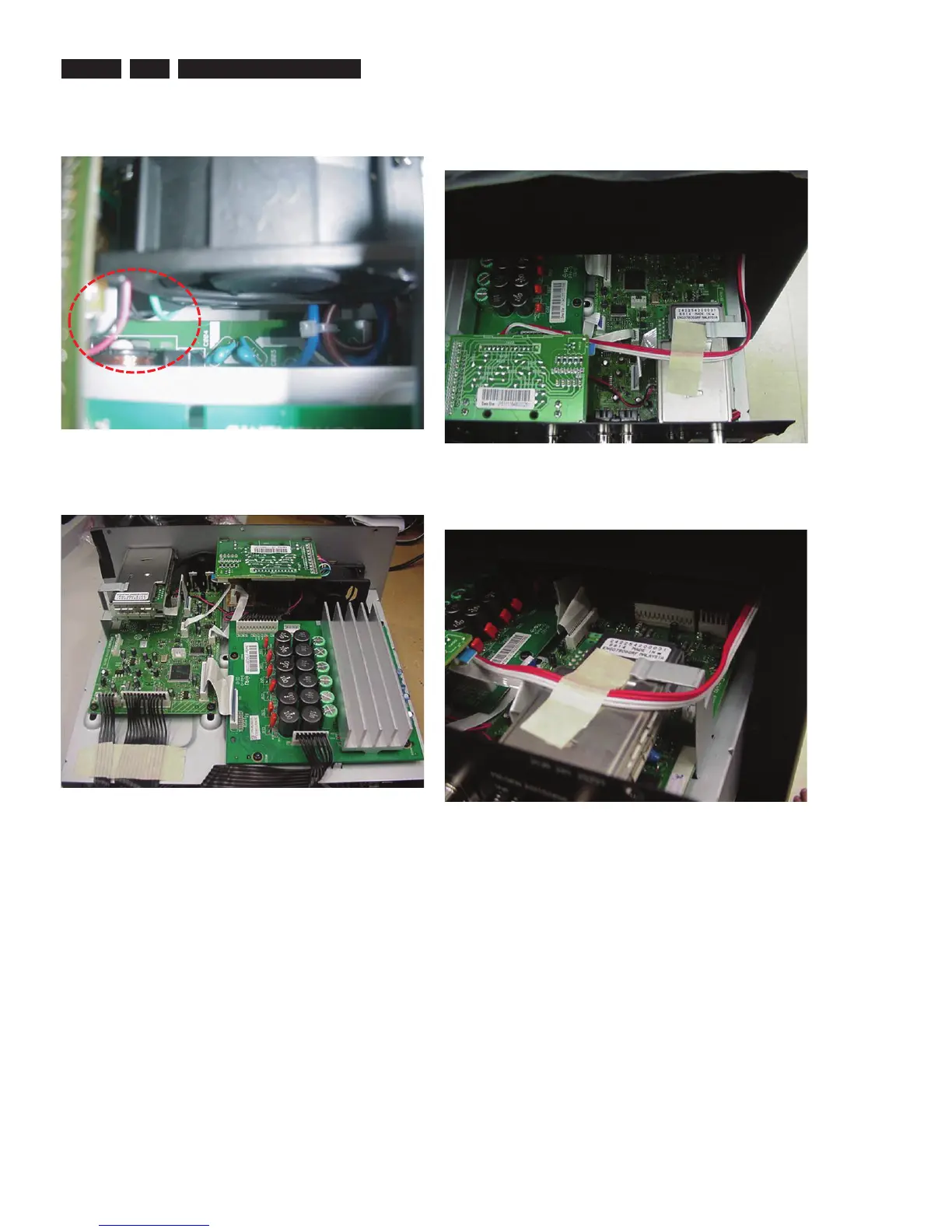

Figure 2-9
10) Overview
Figure 2-10
11) Paste a tape over the subwoofer cable on the Tuner as
indicated. Secondly, the cable should be outside of the
Audio BD, along the edge of the metal chassis.
Figure 2-11
12) With reference to point 11).
Figure 2-12
