Philips HTS8100 - Page 13

EN 13
3139 785 32540
Measurements Setup, Service Aid & Lead Free Requirements
2.

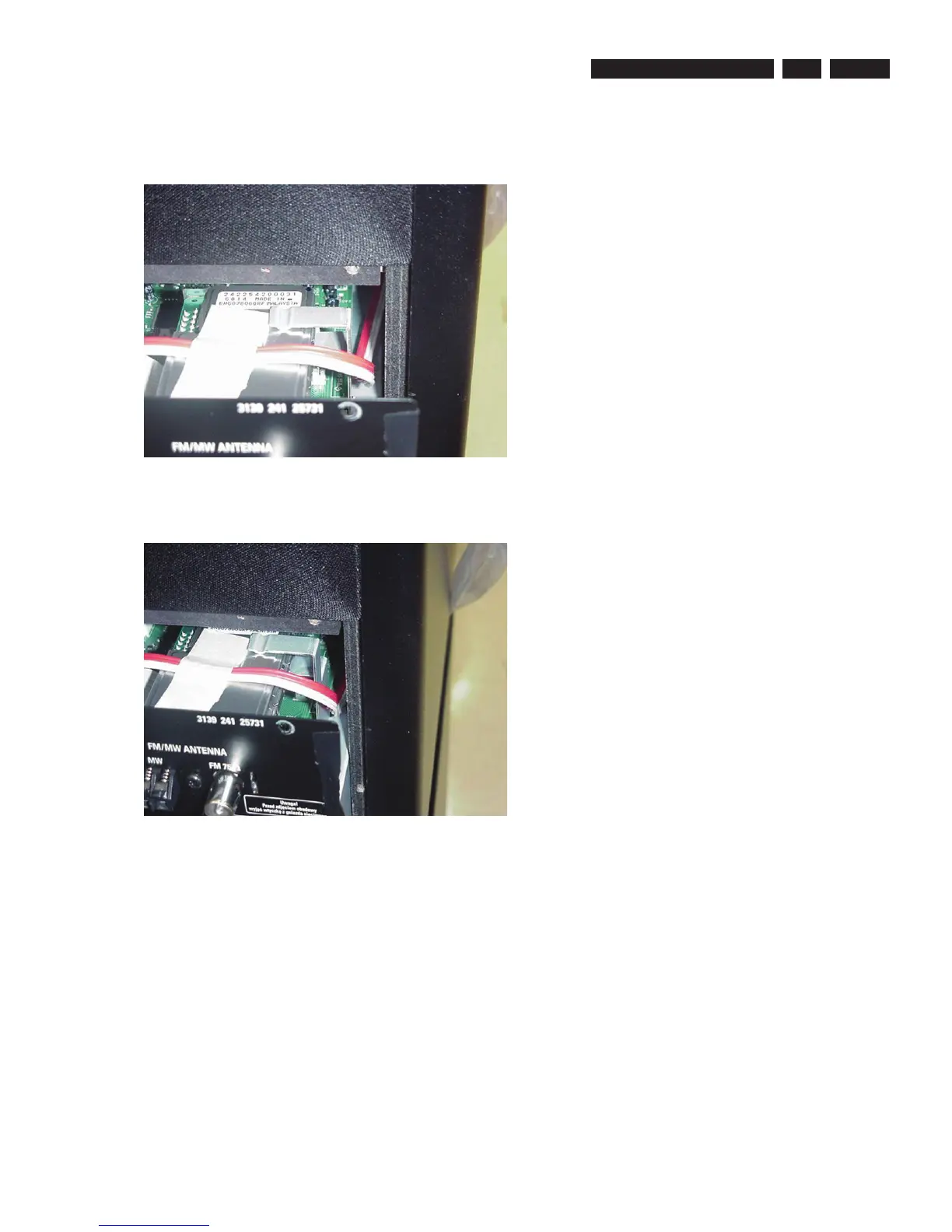

13) With reference to point 11). Note that the cable should
not be bent to the left across the Audio BD due to the
excess cable when the unit is being push back inside the
wooden Power Box.
Figure 2-13
14) With reference to point 11).
Figure 2-14
