Dismantling Instructions & Service Positions

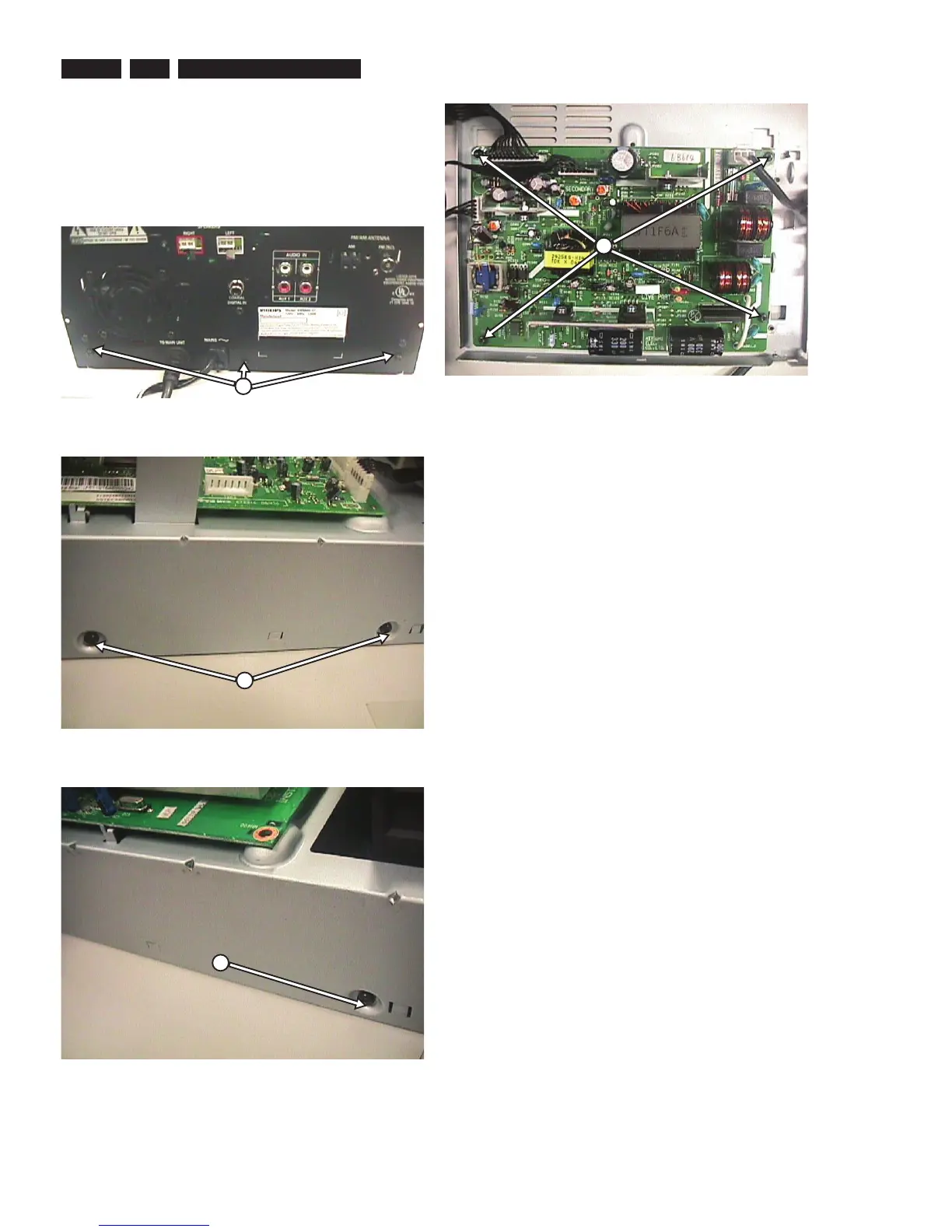

4) To dismantle the PSU 1030, it is necessary to dismantle
the Bottom Plate Assembly (1030 +161) from the Rear
Plate 230 (remove 3 screws as shown in fi gure 19) and
the bracket 236 (remove 3 screws from both sides of the
bracket 236 as shown in fi gure 20 and fi gure 21). Then
detach the Bottom Plate Assembly (1030 +161) from the
Rear Plate 230 and remove 4 screws detach the PSU
1030 from the Bottom Plate 161 as shown in fi gure 22.
Subwoofer Figure 4-19
Subwoofer Figure 4-20
Subwoofer Figure 4-21
Q
Q
Q
Subwoofer Figure 4-22
R
