76

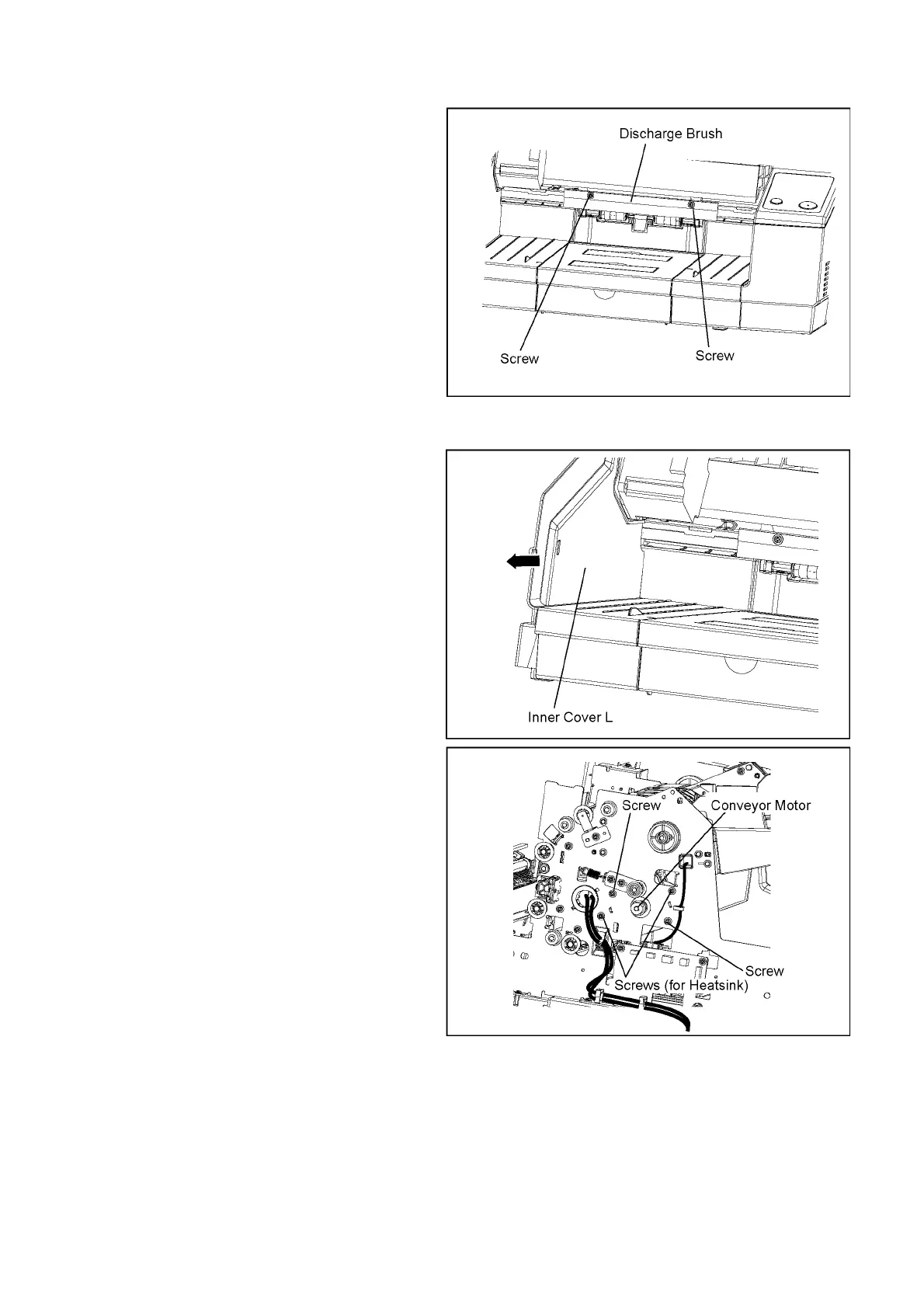

8.5.19. Discharge Brush
8.5.20. Conveyor Motor
1. Remove the Inner Cover C. (See 8.5.18.)
2. Remove the 2 screws that fasten the Discharge Brush.
1. Remove the Drive Belt. (See 8.5.11.)
2. Remove the Inner Cover C. (See 8.5.18.)
3. Remove the Inner Cover L.
4. Remove the 2 screws that fasten the Heatsink for Conveyor
Motor.
5. Remove the 2 screws that fasten the Conveyor Motor in place.
