Technical Specifications, Connections, and Chassis Overview
EN 2 L04L AA1.
1. Technical Specifications, Connections, and Chassis Overview
Notes:
• Described specifications are valid for the whole (LATAM)
product range.
• Figures below can deviate slightly from the actual situation,
due to different set executions.
1.1 Technical Specifications
1.1.1 Reception
Display type : CRT-DV-SF
Screen size : 25” (63 cm), 4:3
: 28” (70 cm), 16:9
: 29” (72 cm), 4:3
: 32” (82 cm), 16:9
Tuning system : PLL
Color systems : NTSC M, or
: TriNorma
Sound systems : BTSC, or
: BTSC + SAP
Channel selections : 181, full cable
IF picture carrier : 45.75 MHz
Aerial input : 75 ohm, F-type
A/V Connections : PAL B/G (pb)
1.1.2 Miscellaneous
Audio output: : 2 x 5 W
: 2 x 10 W
Power supply:
- Mains voltage range : 90 - 276 V_ac
- Mains frequency : 50 / 60 Hz
Ambient conditions:
- Temperature range : +5 to +45 deg. C
- Maximum humidity : 90% R.H.
Power consumption:
- Normal operation : from 56 W (25”)
: to 70 W (32”)
- Standby : < 1 W
1.2 Connections
Note: The following connector color abbreviations are used
(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green, Gy=
Grey, Rd= Red, Wh= White, Ye= Yellow.
1.2.1 Top Control and Front / Side Connections

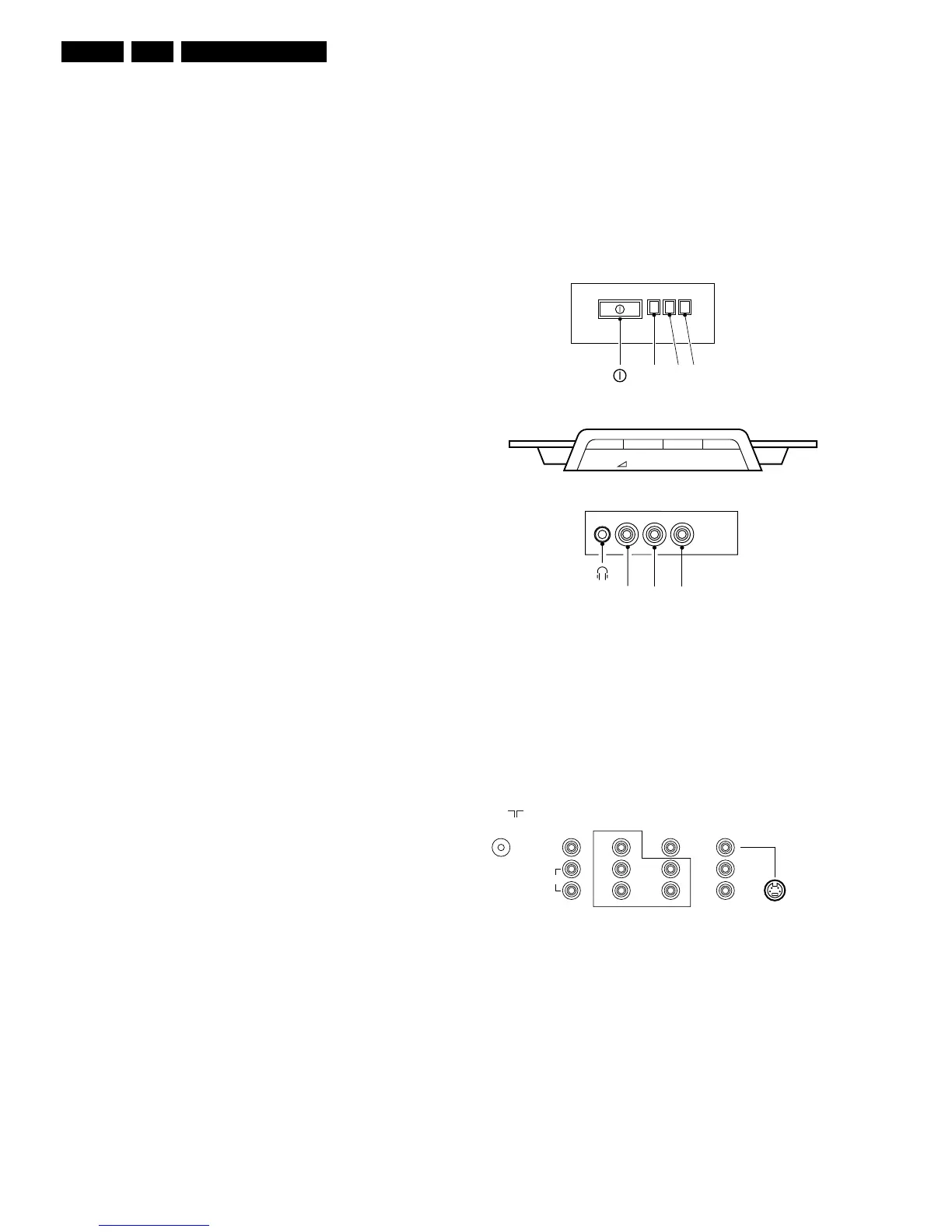

Figure 1-1 Top control and Front / Side connections
Audio / Video In
Ye - Video (CVBS) 1 V_pp / 75 ohm jq
Wh - Audio - L 0.2 V_rms / 10 kohm jq
Rd - Audio - R 0.2 V_rms / 10 kohm jq
Bk - Headphone 8 - 600 Ohm / 4 mW ot
1.2.2 Rear Connections
Figure 1-2 Rear connections
Aerial In
- F-type Coax, 75 ohm D
Monitor Out
Ye - Video (CVBS) 1 V_pp / 75 ohm kq
Wh - Audio - L 0.5 V_rms / 1 kohm kq
Rd - Audio - R 0.5 V_rms / 1 kohm kq
YUV In
Bu - U 0.7 V_pp / 75 ohm jq
Rd - V 0.7 V_pp / 75 ohm jq
Gn - Y 0.7 V_pp / 75 ohm jq
RED
LED
R AUDIO L VIDEO
E_14480_045.eps
170204
IR LIGHT SENSOR
(OPTIONAL)
TOP CONTROL
SIDE I/O
FRONT I/O
VOLUME-+-+PROGRAM
P
VIDEO
L/Mono
R
Y
Pb
Pr
V
L
R
V
L
R
S-VIDEO
MONITOR
OUT
75 Ohm
AV1
IN
COMPONENT VIDEO INPUT
AV2
IN
E_14480_047.eps
110204
AUDIO
