Philips LX9000R User Manual

EN 4 1. LX9000R Location of printed boards
POWER SUPPLY BOARD
primary
POWER SUPPLY BOARD
secondary
AUXILIARY BOARD
DIGITAL BOARD
DVIO BOARD
KEY BOARD right
DISPLAY ASSY
A/V FRONT CONNECTORS
KEY BOARD left 2
KEY BOARD left
CONTROL BOARD
ANALOG VIDEO BOARD
(A/V BOARD)
MDM BOARD
AUDIO TUNER
LS SOCKET
BOARD
ASP BOARD
AMPLIFIER BOARD
µP SUB BOARD
(CENTRAL CONTROLLER CECO)
DISPLAY
POS. SWITCH
Location PCBs LX9000R, 100703

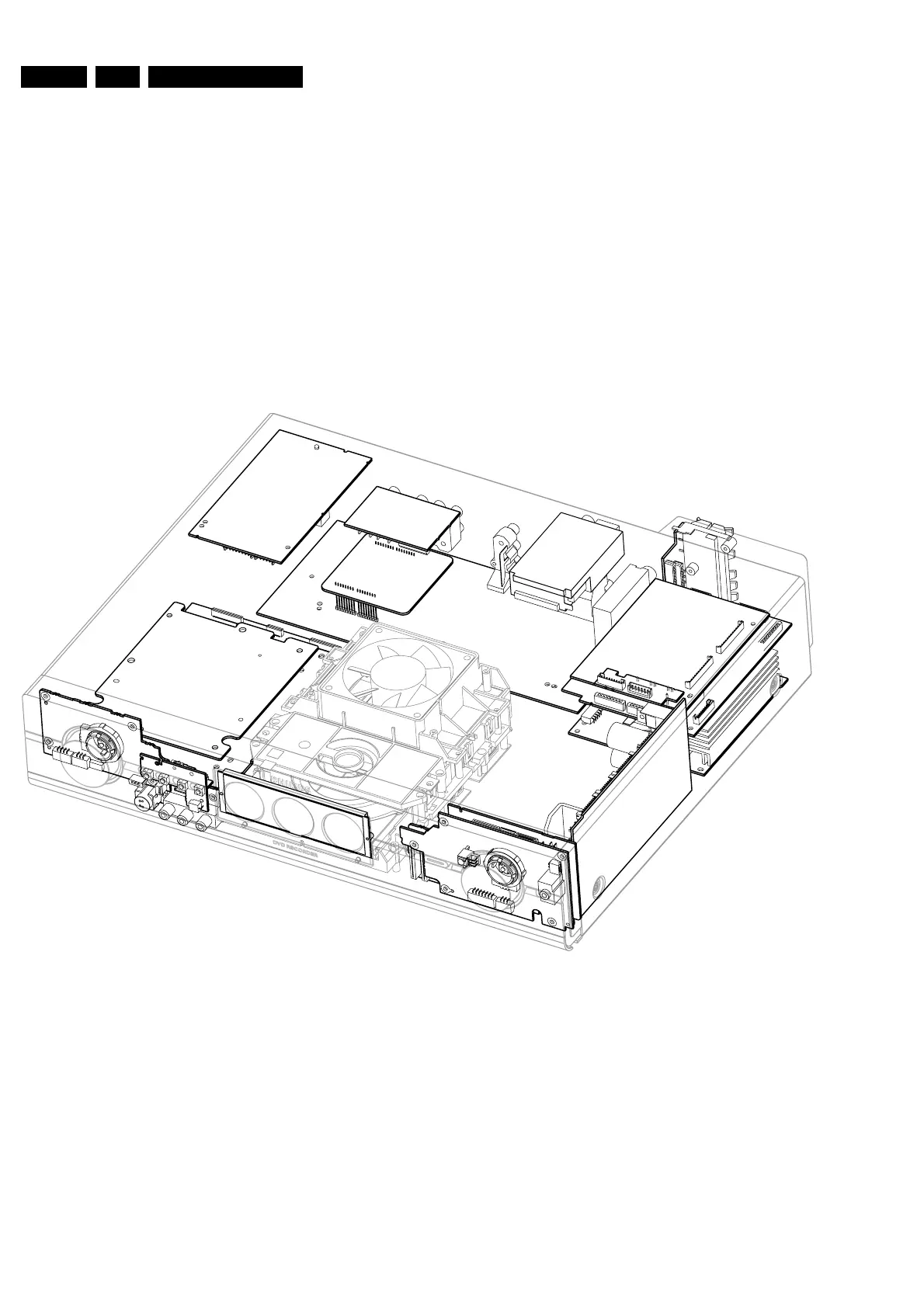

LOCATION OF PRINTED BOARDS
figure 1

Philips LX9000R Specifications

Picture/Display

A/D converter	10 bit, 54 MHz
Aspect ratio	4:3, 16:9
D/A converter	10 bit, 54 MHz

Sound

A/D converter	24 bit, 96 kHz
D/A converter	24 bit, 96 kHz
Distortion and Noise (1kHz)	90 dB
Frequency response	30-20000 Hz
Signal to noise ratio	>100 dB (A-weighted)
Total Sound Power (RMS)	450 W

Loudspeakers

Satellite speaker frequency range	120-20000 Hz
Satellite speaker impedance	4 ohm
Center speaker frequency range	120-20000 Hz
Center speaker impedance	4 ohm
Subwoofer frequency range	30-120 Hz
Subwoofer impedance	8 ohm

Video Playback

Compression formats	MPEG1, MPEG2
Playback Media	DVD+RW, DVD+R, DVD-RW (Video mode), DVD-R, DVD-Video, SVCD, Video CD
Video disc playback system	NTSC, PAL

Video Recording

Audio compression	Dolby Digital
Compression formats	MPEG2
Max recording time on DVD	8 hr
Recording system	NTSC, PAL

Audio Playback

Compression format	Dolby Digital, DTS, MP3, MPEG2 Multichannel, PCM
Playback Media	CD, CD-R, CD-RW, MP3-CD
MP3 bit rates	32-320 kbps and VBR

Storage Media

Disc capacity	4.7 GB
Recording media	DVD+R, DVD+RW
Recording speed	M1, M2, M2x, M3, M4, M6, M8

Tuner/Reception/Transmission

Aerial Input	75 ohm coaxial (IEC75)
Number of Preset Channels	40
Tuner Bands	FM Stereo, MW

Power

Power supply	200-240 V, 50/60 Hz
Standby power consumption	< 2 W
