2-1
2-1

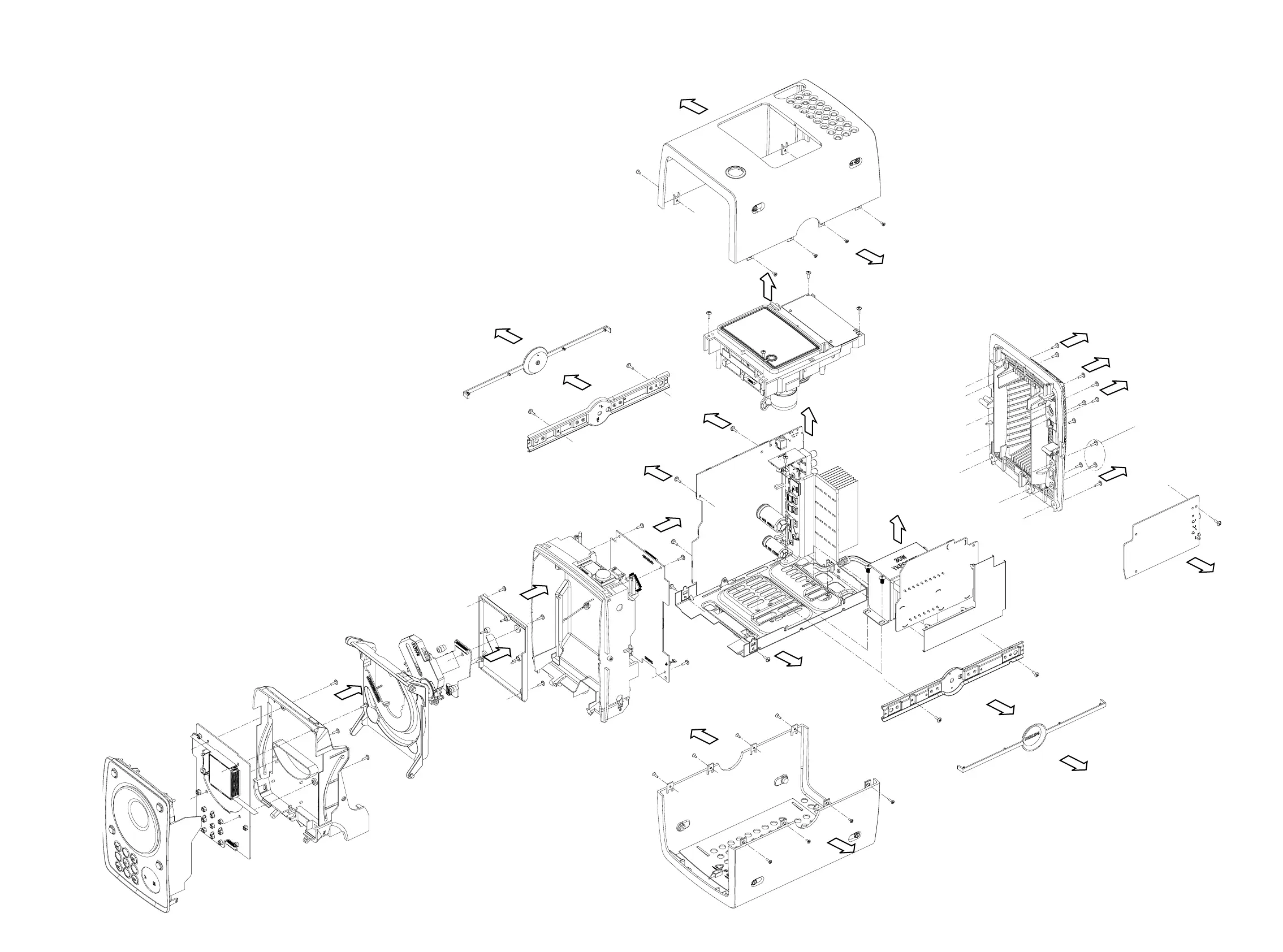

DISASSEMBLY INSTRUCTIONS
A2
E2 (x2)
B2 (x4)
B1 (x4)
D1 (x4)
E1 (x2)
A1
F1 (x2)
F2 (x1)
C1 (x4)
C1 (x4)
G5 (x2) Only for /21
G1 (x3)
G2 (x2)
G3 (x2)
G4 (x2)
L1 (x2)
L2 (x1)
H1 (x4)
I1 (x4)
K1 (x4)
M1 (x4)
N1 (x1)
J1 (x1)
A. To remove Brand Rim Left & Right
B. To remove Top Cabinet
C. To remove Bottom Cabinet
D. To remove Tape Deck
E. To remove Left & Right Metal Side Bars
F.
To remove CD Bracket
G. To remove Rear Cabinet
H. To remove CD MCU Board
I. To remove CD Tray Cover
J. To remove Connection Board & CD Deck
K. To remove CD Door & Key Board
L. To remove Main Board
M. To remove Power Board
N. To remove Tuner Board
To Next Page
