Philips MC-320 - LAYOUT DIAGRAM - TUNER BOARD (NON CENELEC) COMPONENT SIDE; LAYOUT DIAGRAM - TUNER BOARD (NON CENELEC) COPPER SIDE

52 pages

To Next Page

To Next Page

To Previous Page

To Previous Page

Loading...

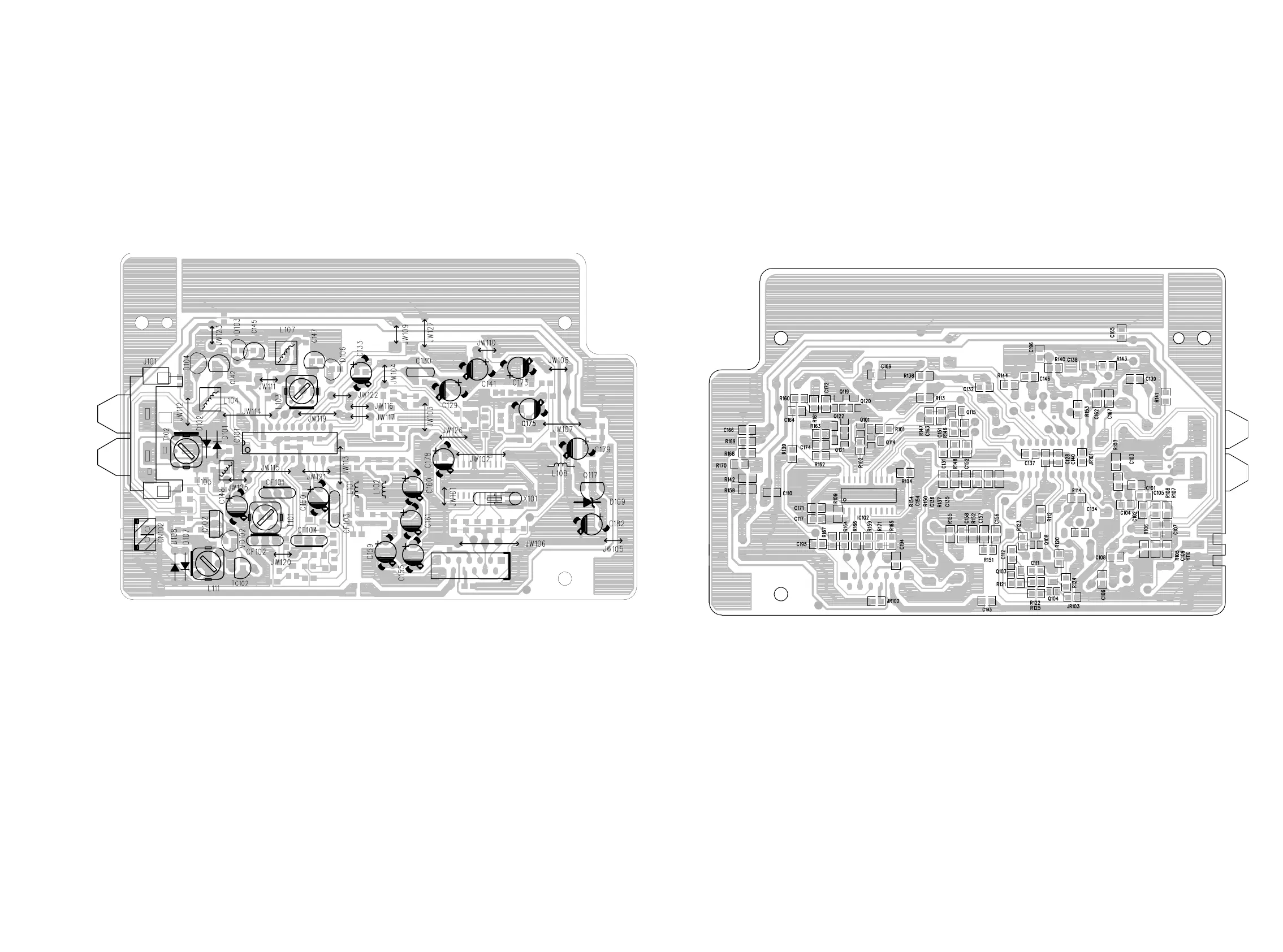

LAYOUT DIAGRAM - TUNER BOARD (NON CENELEC)

COMPONENT SIDE

7-5

7-5

LAYOUT DIAGRAM - TUNER BOARD (NON CENELEC)

COPPER SIDE
