Philips MCM7/22 - Tape Module Exploded View

9-8
9-8

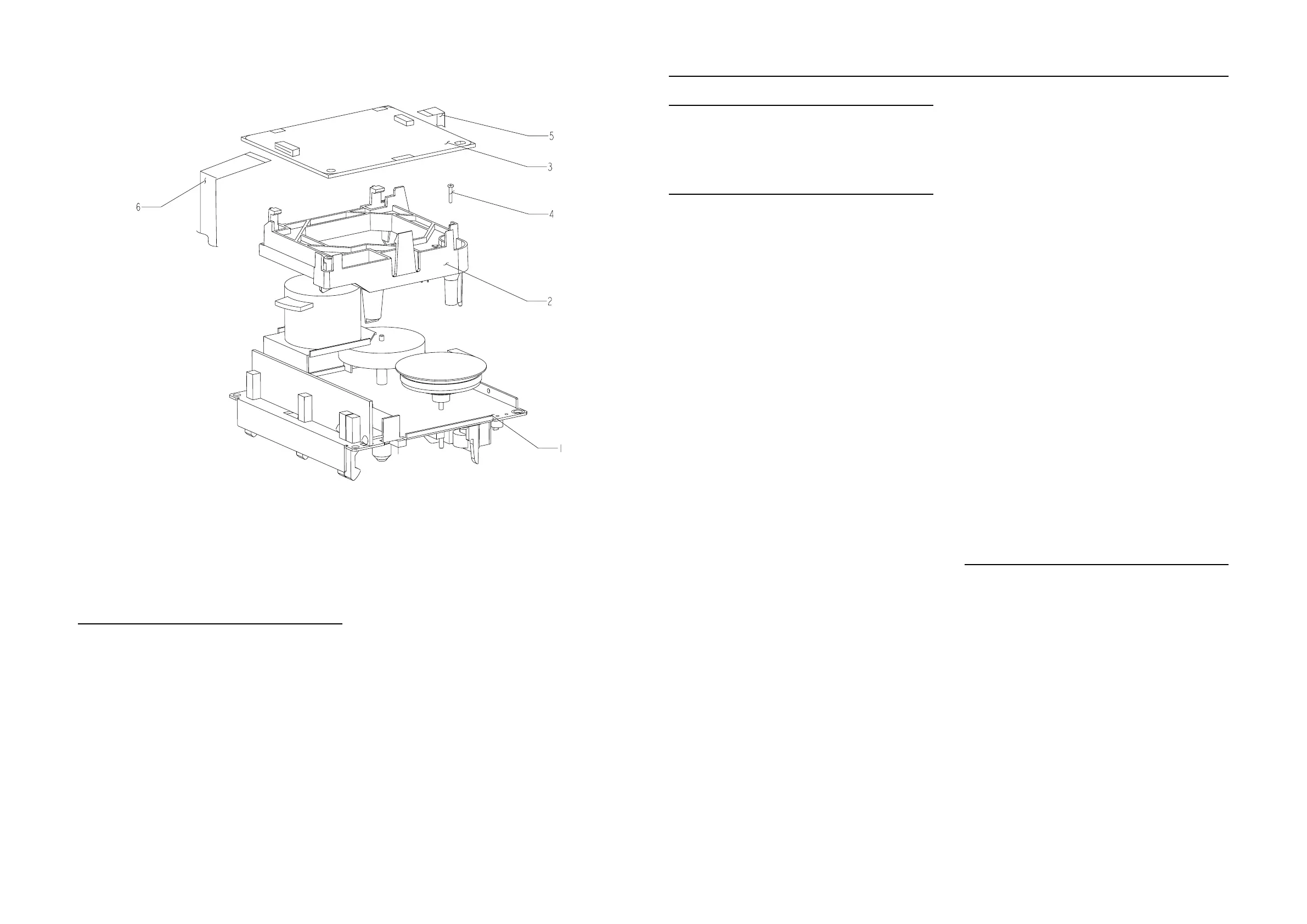

TAPE MODULE EXPLODED VIEW
1701 4822 267 10953 Flex Socket 7pin Vert.
1706 4822 267 10953 Flex Socket 7pin Vert.
1710 4822 267 10958 Flex Socket 5pin Hort.
1760 4822 265 11535 Flex Socket 8pin Hort.
CAPACITORS
2621 5322 126 11578 1nF 10% 50V
2621 5322 122 31647 1nF 10% 63V
2622 4822 126 13881 470pF 5% 50V
2622 5322 122 32268 470pF 5% 50V
2623 4822 126 13881 470pF 5% 50V
2623 5322 122 32268 470pF 5% 50V
2625 4822 126 14305 100nF 10% 16V
2625 2238 586 59812 100nF +80/-20% 50V
2701 4822 122 31765 100pF 2% 63V
2701 5322 122 32531 100pF 5% 50V
2702 4822 122 31765 100pF 2% 63V
2702 5322 122 32531 100pF 5% 50V
2703 4822 122 31765 100pF 2% 63V
2703 5322 122 32531 100pF 5% 50V
2704 4822 122 31765 100pF 2% 63V
2704 5322 122 32531 100pF 5% 50V
2709 5322 126 11578 1nF 10% 50V
2710 5322 126 11578 1nF 10% 50V
2711 4822 122 31765 100pF 2% 63V
2711 5322 122 32531 100pF 5% 50V
2712 4822 122 31765 100pF 2% 63V
2712 5322 122 32531 100pF 5% 50V
2713 5322 121 42386 100nF 5% 63V
2714 5322 121 42386 100nF 5% 63V
2715 4822 124 41584 100uF 20% 10V
2716 4822 124 41584 100uF 20% 10V
2717 3198 017 31530 15nF 50V AR
2717 4822 126 13188 15nF 5% 63V AR
2718 3198 017 31530 15nF 50V AR
2718 4822 126 13188 15nF 5% 63V AR
2721 3198 017 41050 1uF 10V
2721 4822 126 14043 1uF +80/-20% 16V
2722 3198 017 41050 1uF 10V
2722 4822 126 14043 1uF +80/-20% 16V
2723 4822 126 14238 2,2nF 50V
2724 4822 126 14238 2,2nF 50V
2725 4822 126 13883 220pF 5% 50V
2727 4822 126 14238 2,2nF 50V
2728 4822 126 14238 2,2nF 50V
2729 4822 126 14494 22nF 10% 25V
2729 2238 916 15641 22nF 10% 25V
2730 4822 126 14494 22nF 10% 25V
2730 2238 916 15641 22nF 10% 25V
2731 5322 126 11578 1nF 10% 50V
2731 5322 122 31647 1nF 10% 63V
2732 3198 017 41050 1uF 10V
2732 4822 126 14043 1uF +80/-20% 16V
2743 4822 126 14494 22nF 10% 25V
2743 2238 916 15641 22nF 10% 25V
2747 4822 126 14549 33nF 16V
2761 4822 124 40196 220uF 20% 16V
2768 4822 124 40756 1uF 20% 100V
2769 4822 126 14238 2,2nF 50V
2770 4822 126 14238 2,2nF 50V
2780 4822 124 81151 22uF 50V
2781 5322 126 11583 10nF 10% 50V
2781 4822 122 33177 10nF 20% 50V
2782 4822 126 13193 4,7nF 10% 63V
2784 4822 121 51305 15nF 10% 50V
2785 4822 124 21913 1uF 20% 63V
2786 4822 122 31765 100pF 2% 63V
2786 5322 122 32531 100pF 5% 50V
2787 4822 126 14549 33nF 16V
2788 4822 126 14494 22nF 10% 25V
2788 2238 916 15641 22nF 10% 25V
2789 4822 126 14549 33nF 16V
2790 4822 126 14247 1,5nF 50V AR
2791 4822 126 14247 1,5nF 50V AR
2793 4822 126 13883 220pF 5% 50V
2794 4822 126 13883 220pF 5% 50V
2796 4822 124 40433 47uF 20% 25V
2797 4822 124 81151 22uF 50V
2798 4822 124 21732 10uF 20% 25V
2799 4822 126 14305 100nF 10% 16V
2799 2238 586 59812 100nF +80/-20% 50V
RESISTORS
3607 4822 051 30222 2k2 5% 0,062W
3607 4822 117 11449 2k2 5% 0,1W
3608 4822 051 30273 27k 5% 0,062W
3609 4822 051 30222 2k2 5% 0,062W
3609 4822 117 11449 2k2 5% 0,1W
3610 4822 051 20124 120k 5% 0,1W
3611 4822 051 30222 2k2 5% 0,062W
3611 4822 117 11449 2k2 5% 0,1W
3612 4822 051 30563 56k 5% 0,062W
3614 4822 051 30273 27k 5% 0,062W
3624 4822 117 13632 100k 1% 0,062W
3624 4822 117 10837 100k 1% 0,1W
3626 4822 051 30102 1k 5% 0,062W
3628 4822 117 13632 100k 1% 0,062W
3628 4822 117 10837 100k 1% 0,1W
3630 4822 051 30471 470R 5% 0,062W
3678 4822 117 12925 47k 1% 0,063W
3680 4822 117 12925 47k 1% 0,063W
3686 4822 117 13632 100k 1% 0,062W
3686 4822 117 10837 100k 1% 0,1W
3709 4822 051 30339 33R 5% 0,062W
M2 x 16
ETF8 SD Exploded view ....78730 dd wk204
MECHANICAL PARTS LIST - TAPE MODULE
1 3139 118 78740 AR Tape Mech. CRL4438
1 3139 118 79220 Non-AR Tape Mech. CFL4217
5 3139 110 35580 Flex Cable 5pin 40mm AD
6 3139 110 35590 Flex Cable 8pin 48mm AD
Note: Only the parts mentioned in this list are normal service
spare parts.
