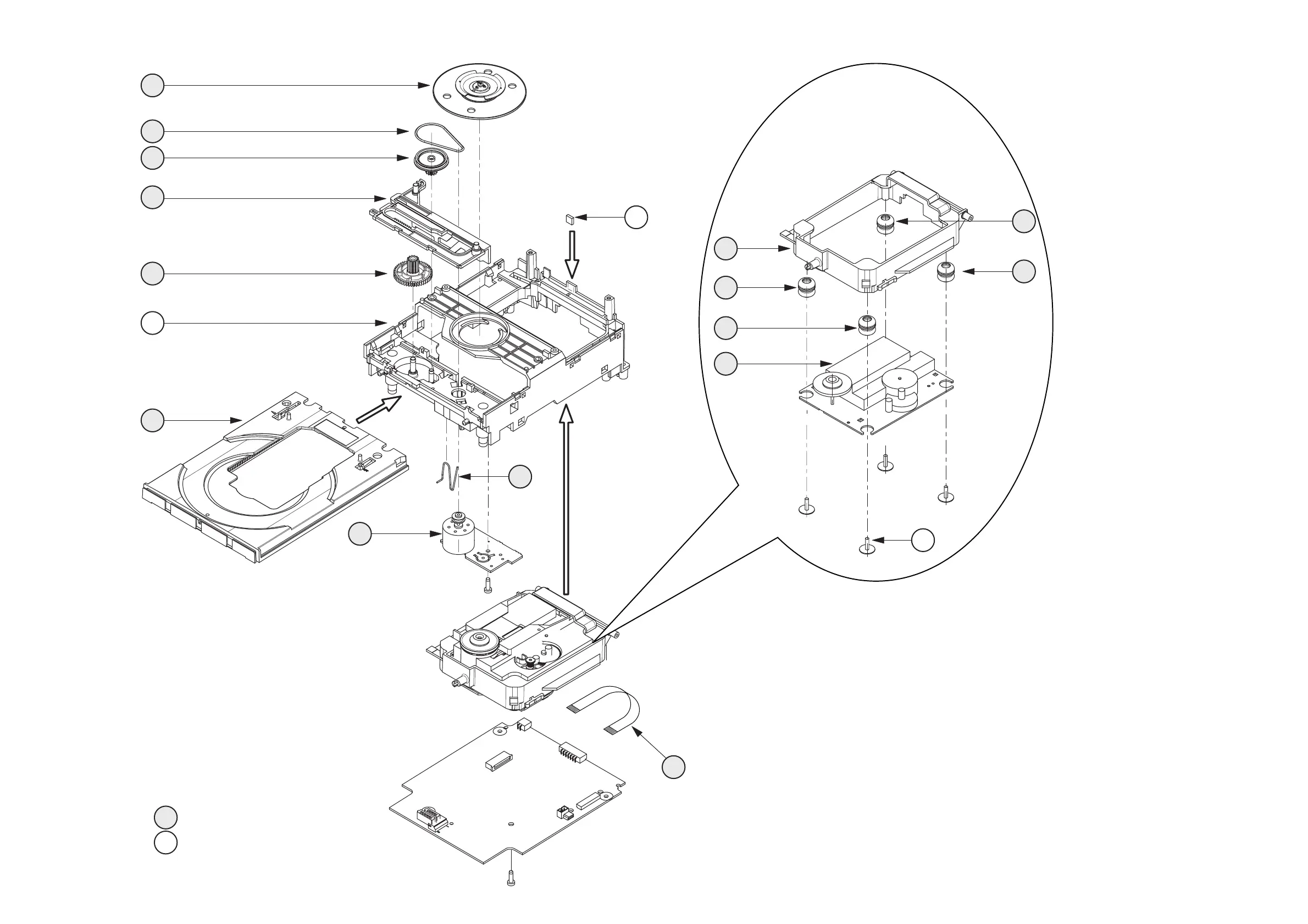

Philips MCM7/22 - Exploded View

10-8 10-8
MOTOR BOARD
CD BOARD
EV UL Phonic, 20040308
230
206
204
203
205
201
211
210
202
207
8002
X spare part
non spare part
Y
220
223
223
240
221
222
222
4x
MECHANICAL PARTS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
202 3103 304 71780 DRAWER
203 3103 304 71800 SLIDER
204 3103 304 71820 PULLEY GEARWHEEL
205 3103 304 71830 GEARWHEEL
206 3103 304 71910 DRIVING BELT
207 3103 308 54160 MOTOR ASSY
210 3103 301 06660 SPRING SUPPORT
220 3103 304 71790 SUPPORT CD
222 4822 529 10387 RUBBER DAMPER CD DRIVE, FRONT
223 4822 529 10387 RUBBER DAMPER CD DRIVE, FRONT
230 3103 308 11940 CLAMPER ASSY DA11
240 3103 309 05380 CD DRIVE, MCD2
240 3103 309 05390 CD DRIVE DA12T3
8001 3103 308 93611 FLEXFOIL CABLE, 16P, 88mm BD
8002 3103 308 94021 FLEXFOIL CABLE, 8P, 268mm AD
Exploded view U NIVERSAL L OADER
