Philips MCM760 - Repair Hints & Service Positions

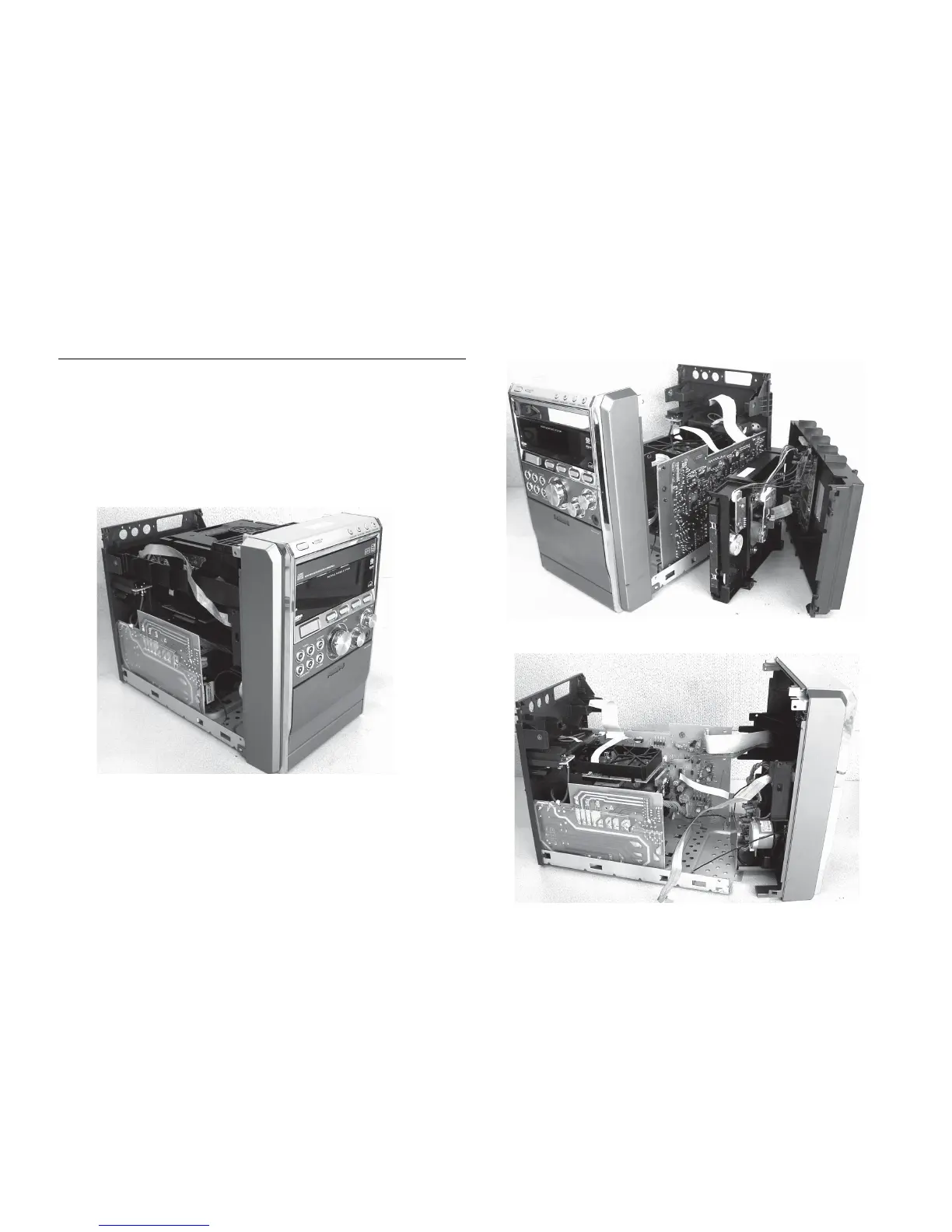

Service position A
Service position B
Service position C
DISMANTLING INSTRUCTIONS
Repair Hints & Service Positions
1) During repair it is possible to disconnect the TunerBoard
and/or CD Module completely unless the fault is sus-
pected to be in that area. This will not affect the
performance of the rest of the set.
Note: The flexcables are very fragile,care should be taken
not to damage them during repair. After repair, be
very sure that the flex cables are inserted properly
intotheflexsocketsbeforeencasing,otherwisefaults
may occurs.
