2. Monitor installation
3 2
MAIN INPUT DVI2DVI1 5V USB-B USB-ADP
1

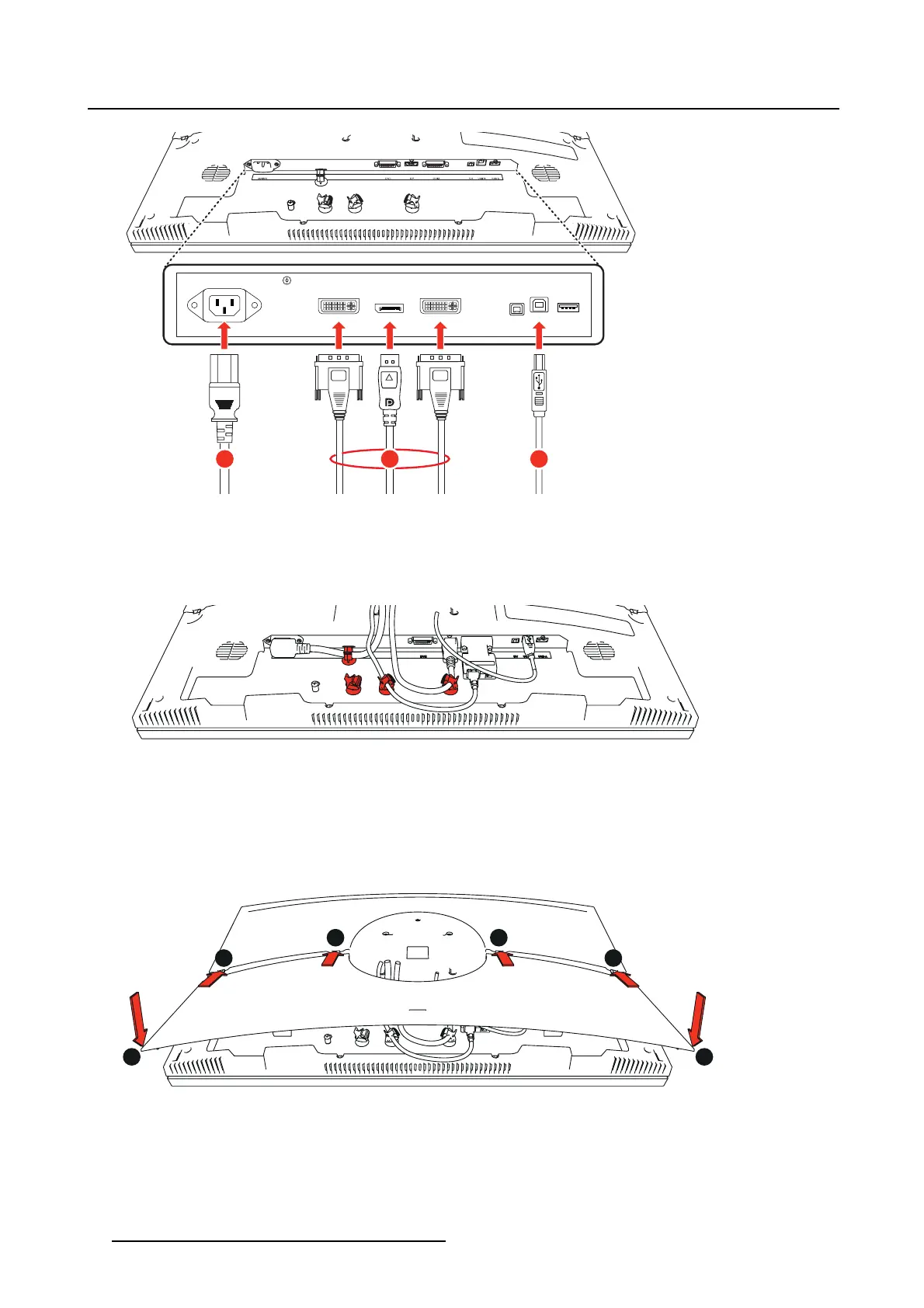

Image 2-3
Route cables
1. Route all cables trough the provided cable routing channel at the back of the monitor. Use the cable
straps at the inside of the connector compartment to fix the cables.
Image 2-4
Reattach cable cover
1. Slide the 4 position clips on top of the cable cover in the matching fi xation holes at the back of the
monitor.
2. Attach the cable cover by pushing the bottom into the monitor until you hear a “click” sound at both
ends of the cover.
1
1 1
1
22
“Click!”
“Click!”
Image 2-5
6 K5902101 (451920611531) PS27FHDER 21/05/2015
