2. Monitor installation
2. MONITOR INSTALLATION
WARNING: Sufficient expertise is required to install this equipment. All devices and
complete setup must be tested before taking into operation.

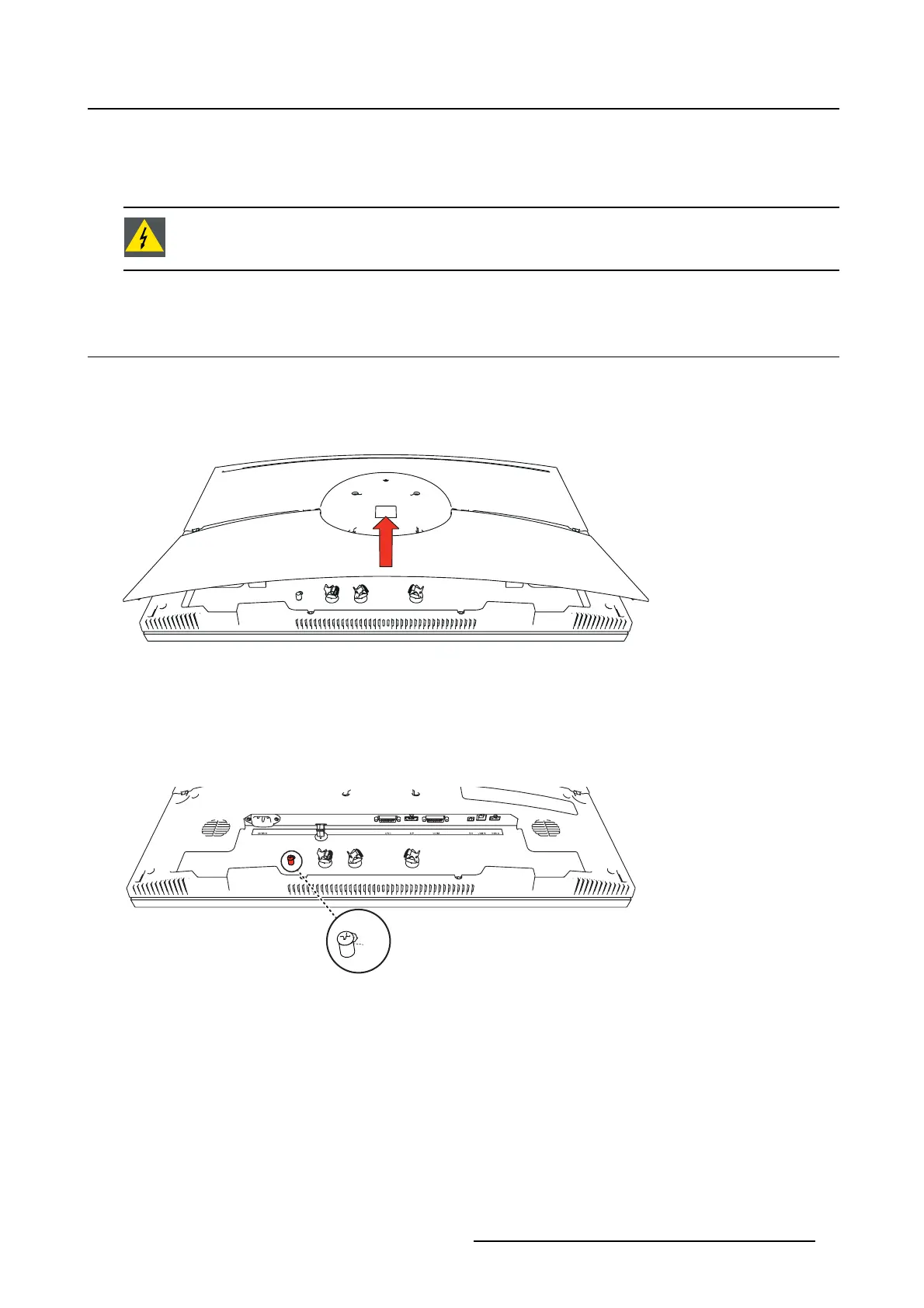

2.1 In stallation pro cedure
Remove cable cover
To get access to the connectors, the cable cover should be removed.
1. Grab the middle bottom of the cable cover and pull it away from the monitor.
Image 2-1
Earth monitor
1. Optionally: For additional grounding, earth the monitor by connecting the protective earth pin to a
grounded outlet by means of a wire with at minimum AWG18 size (according to national Regulation re-
quirements regarding maximum admitted cable length). Use the included M4 screw to attach the wire
to the protective earth pin.
M4
Image 2-2
Connect signal and power cables
1. Connect one or more video source(s) to the corresponding video inputs of the monitor. Use the appro-
priate video cable(s) to do t
his.
2. Connect the USB upstream connector to a USB host if you want to make use of any of the monitor USB
downstream connectors (e.g. to connect a keyboard, mouse or other peripheral).
3. Connect the mains power input to a grounded power outlet.
K5902101 (451920611531) PS27FHDER 21/05/2015
5
