2. Monitor installation
VESA mount installation
1. Attach the monitor in landscape position to a 100 mm VESA mounting bracket by making use of 4 M4
screws. Mounting in portrait position is not supported.
Caution: The 4 screws should be selected according to the thickness of the VESA plate. Please con-
sider that the maximum length of the available thread for the screws inside the monitor is 6
mm and that the unthreaded distance to the outer surface of the plastic back cover is 7.8 mm.
Caution: Use an arm that is approved by VESA.
Caution: Use an arm according to clause 9.8 of IEC 60601-1, considering that the product weight is
8.9 kg.

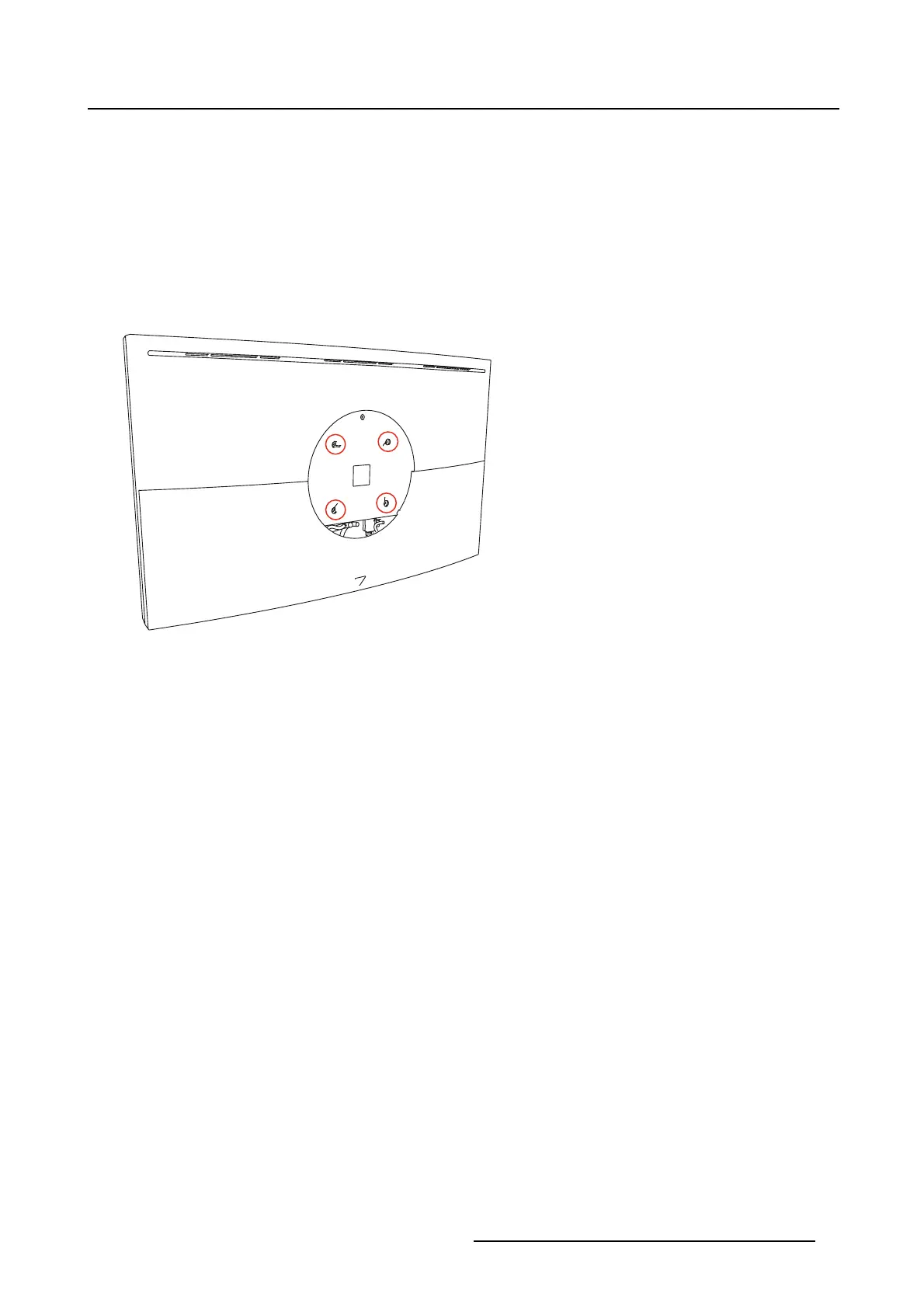

Image 2-6
K5902101 (451920611531) PS27FHDER 21/05/2015 7
