Technical Specifications, Connections, and Chassis Overview
EN 10 SDI PDP1.
1.3.4 42” SD v4

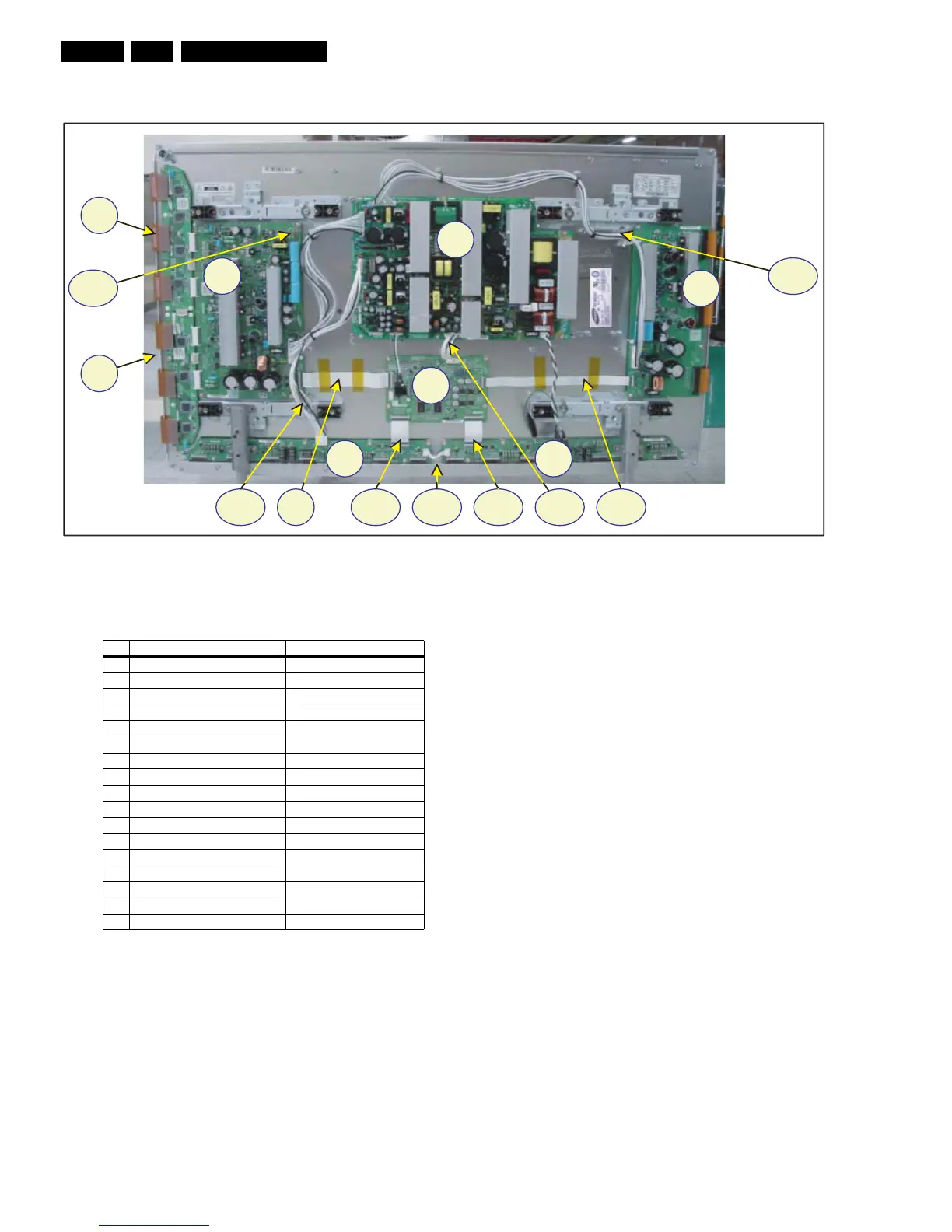

Figure 1-22 PWB location (42” SD v4)
Table 1-6 PWB overview (42” SD v4)
1
2
3
174
5 6
7
8
10 9 11 121314
16
15
F_14991_001.eps
180705
No. Location Name
1 SMPS SMPS
2 LOGIC-MAIN Board Assy PWB Logic Main
3 X-MAIN Driving Board Assy PWB X Main
4 Y-MAIN Driving Board Assy PWB Y Main
5 LOGIC E BUFFER Board Assy PWB buffer
6 LOGIC F BUFFER Board Assy PWB buffer
7 Y-BUFFER (UPPER) Board Assy PWB buffer
8 Y-BUFFER (DOWN) Board Assy PWB buffer
9 LOGIC + Y-MAIN FFC cable-flat
10 LOGIC + X-MAIN FFC cable-flat
11 LOGIC + LOGIC BUF (E) FFC cable-flat
12 LOGIC + LOGIC BUF (F) FFC cable-flat
13 LOGIC BUF (E) + (F) Lead connector
14 SMPS + LOGIC BUF (E) Lead connector
15 SMPS + LOGIC MAIN Lead connector
16 SMPS + Y-MAIN Lead connector
17 SMPS + X-MAIN Lead connector
