1.3.3 42” SD v3

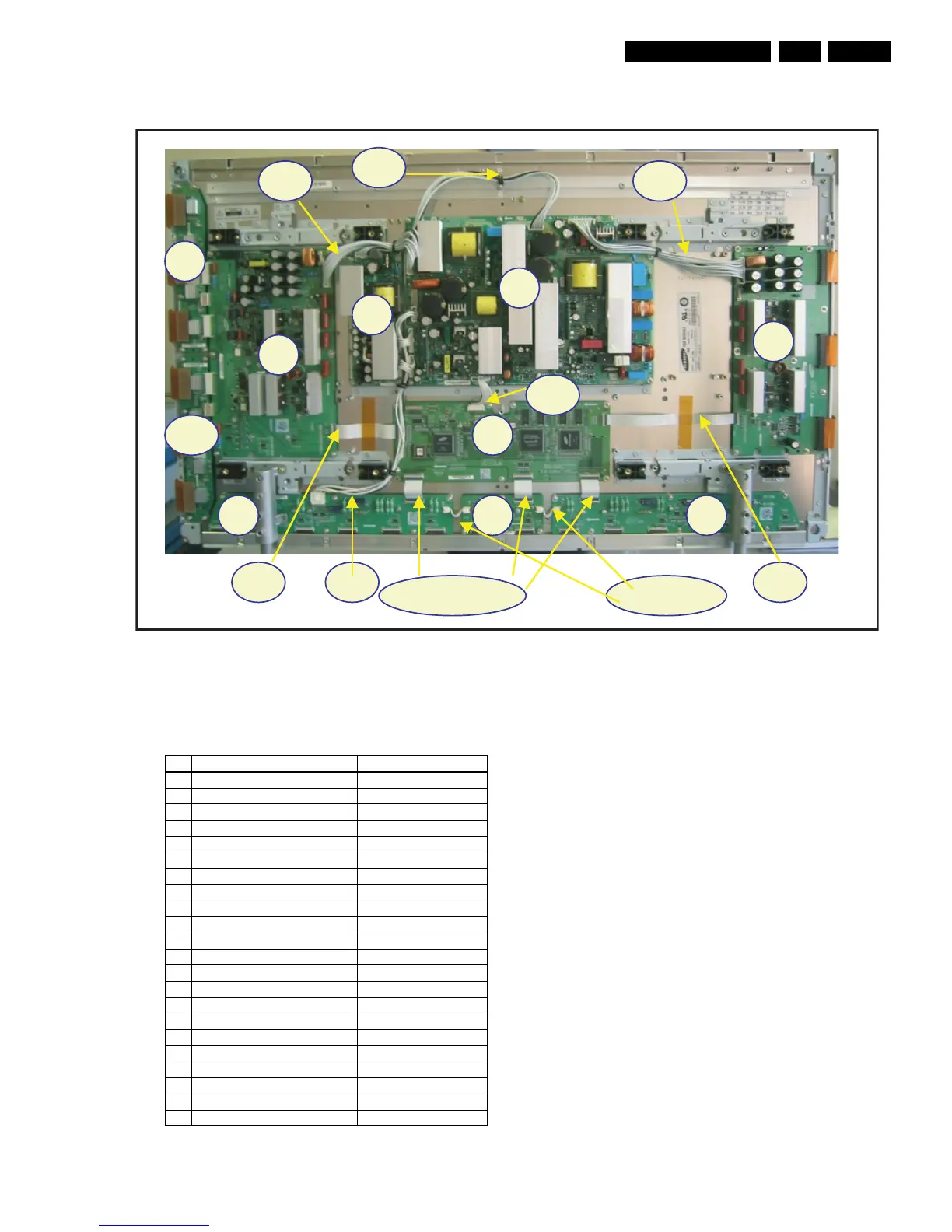

Figure 1-21 PWB location (42” SD v3)
Table 1-5 PWB overview (42” SD v3)
F_14991_034.eps
061005
X_G
YXG YY
X
YG
Z
[G
\G
]G ^ _G
`G
XW
GXZ
S
GX[
S
GX\ X]
S
GX^
XX XY
YW
X`G
No. Location Name
1 Main PSU Assy PWB PSU
2 SUB-PSU Assy PWB SUB-PSU
3 LOGIC-MAIN Board Assy PWB LOGIC Main
4 X-MAIN Driving Board Assy PWB X Main
5 Y-MAIN Driving Board Assy PWBY Main
6 LOGIC E BUFFER Board Assy PWB Buffer
7 LOGIC F BUFFER Board Assy PWB Buffer
8 LOGIC G BUFFER Board Assy PWB Buffer
9 Y-BUFFER (UPPER) Board Assy PWB Buffer
10 Y-BUFFER (DOWN) Board Assy PWB Buffer
11 LOGIC + Y-MAIN FFC Cable-flat
12 LOGIC + X-MAIN FFC Cable-flat
13 LOGIC + LOGIC BUF(E) FFC Cable-flat
14 LOGIC + LOGIC BUF(F) FFC Cable-flat
15 LOGIC + LOGIC BUF(G) FFC Cable-flat
16 LOGIC BUF(E) +LOG. BUF(F) Lead connector
17 LOGIC BUF(F) +LOG. BUF(G) Lead connector
18 PSU + SUB PSU Lead connector
19 PSU + LOGIC BUF(E) Lead connector
20 PSU + LOGIC MAIN Lead connector
21 PSU + Y-MAIN Lead connector
22 PSU + X-MAIN Lead connector
