Technical Specifications, Connections, and Chassis Overview
EN 11SDI PDP 1.
1.3.5 42” HD v3

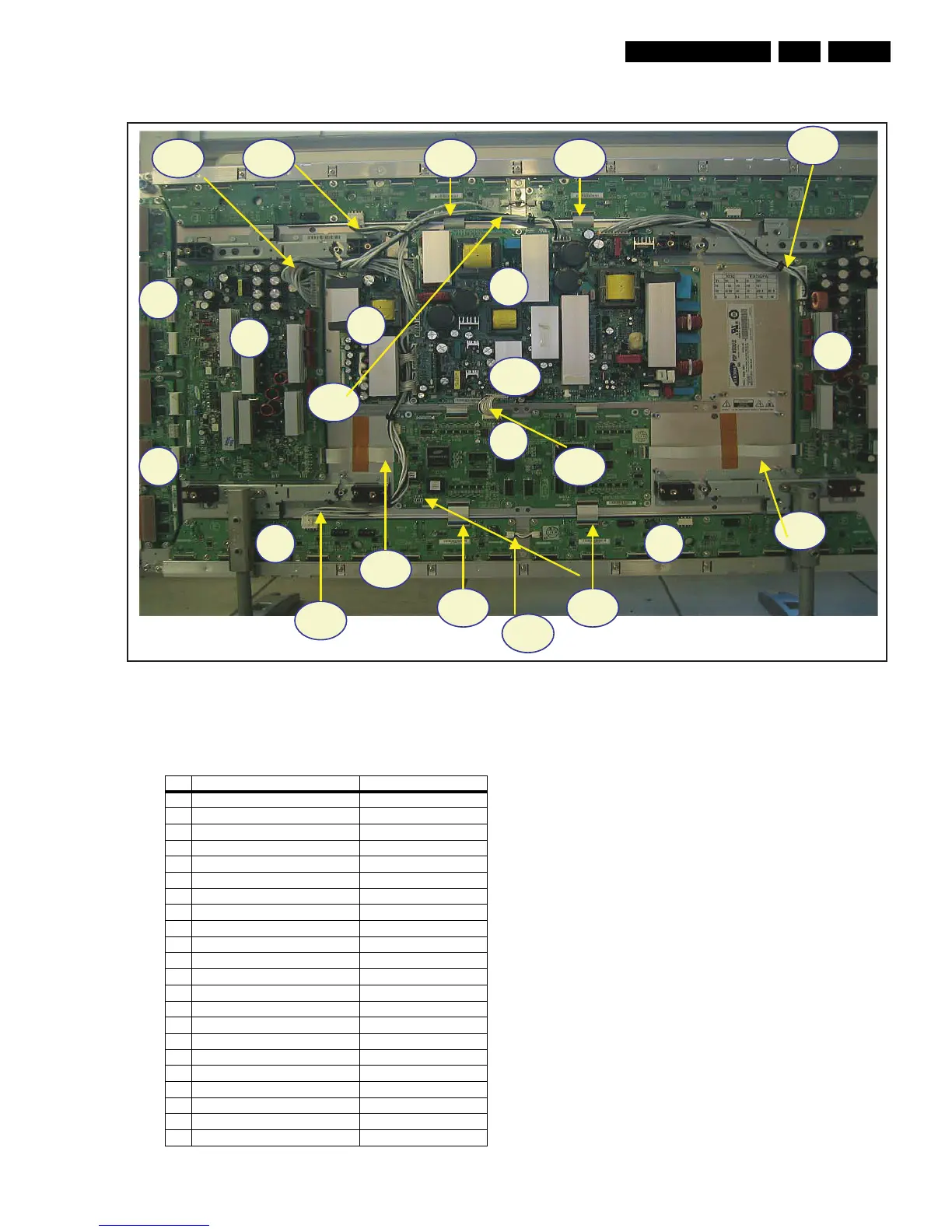

Figure 1-23 PWB location (42” HD v3)
Table 1-7 PWB overview (42” HD v3)
F_14991_014.eps
030805
22
5
6
8
9
17
18 21
19
14 15
1
2
4
20
3
20
13
11
7
10
12
16
No. Location Name
1 Main PSU Assy PWB PSU
2 SUB-PSU Assy PWB SUB-PSU
3 LOGIC-MAIN Board Assy PWB LOGIC Main
4 X-MAIN Driving Board Assy PWB X Main
5 Y-MAIN Driving Board Assy PWB Y Main
6 LOGIC E BUFFER Board Assy PWB Buffer
7 LOGIC F BUFFER Board Assy PWB Buffer
8 Y-BUFFER (UPPER) Board Assy PWB BuffeR
9 Y-BUFFER (DOWN) Board Assy PWB Buffer
10 LOGIC + Y-MAIN FFC Cable-flat
11 LOGIC + X-MAIN FFC Cable-flat
12 LOGIC + LOG. BUF(E) (Down) FFC Cable-flat
13 LOGIC + LOG. BUF(F) (Down) FFC Cable-flat
14 LOGIC + LOGIC BUF(E) (Up) FFC Cable-flat
15 LOGIC + LOGIC BUF(E) (Up) FFC Cable-flat
16 LOGIC BUF(E) + LOG. BUF(F) Lead connector
17 PSU + SUB PSU Lead connector
18 PSU + LOGIC BUF(E) (UP) Lead connector
19 PSU + LOGIC BUF(E) (Down) Lead connector
20 PSU + LOGIC MAIN Lead connector
21 PSU + Y-MAIN Lead connector
22 PSU + X-MAIN Lead connector
