Technical Specifications, Connections, and Chassis Overview
EN 12 SDI PDP1.
1.3.6 42” HD v4

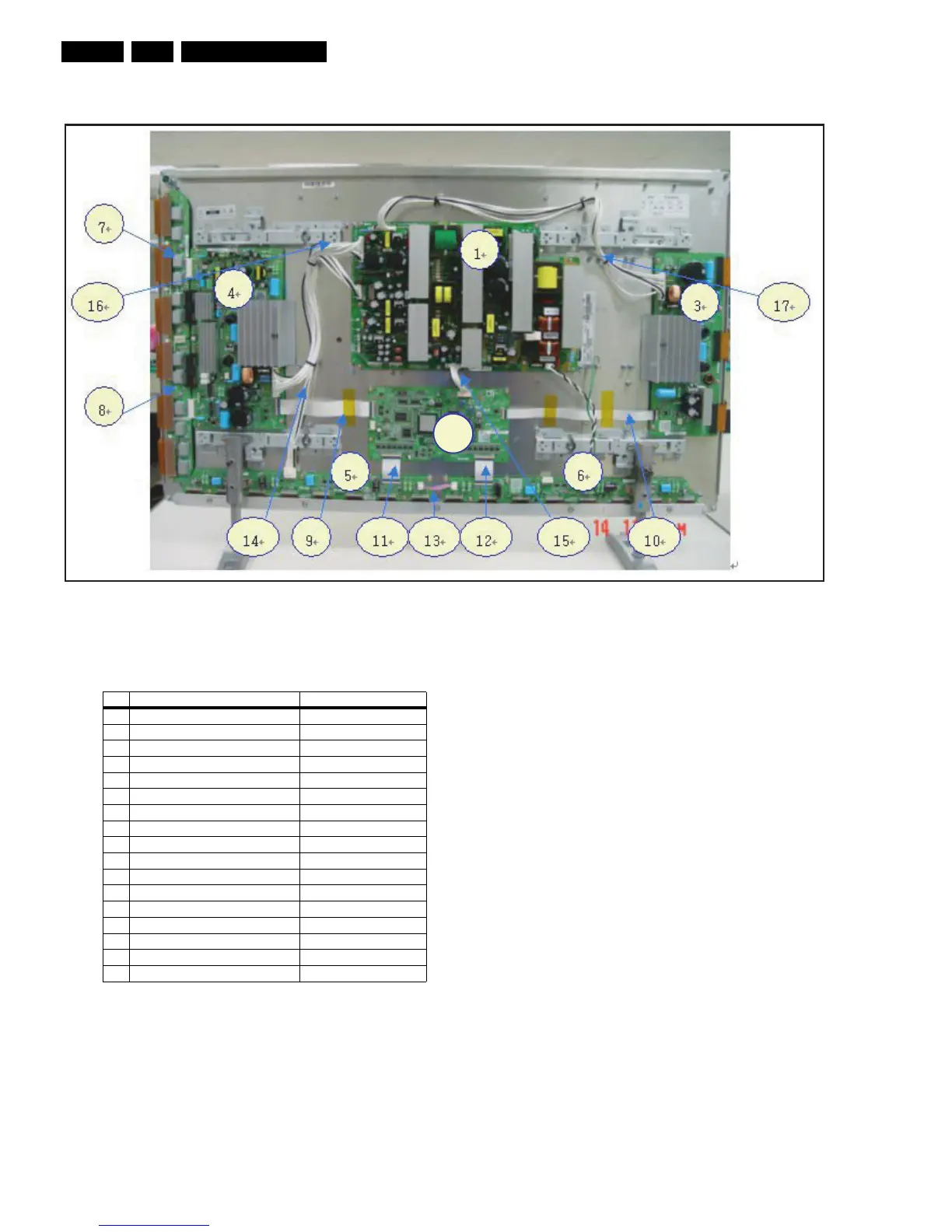

Figure 1-24 PWB location (42” HD v4)
Table 1-8 PWB overview (42” HD v4)
F_14991_015.eps
030805
Y
No. Location Name
1 SMPS SMPS
2 LOGIC-MAIN Board Assy PWBLOGIC Main
3 X-MAIN Driving Board Assy PWBX Main
4 Y-MAIN Driving Board Assy PCBY Main
5 LOGIC E BUFFER Board Assy PWB Buffer
6 LOGIC F BUFFER Board Assy PWB Buffer
7 Y-BUFFER (UPPER) Board Assy PWB Buffer
8 Y-BUFFER (DOWN) Board Assy PWB Buffer
9 LOGIC + Y-MAIN FFC Cable-flat
10 LOGIC + X-MAIN FFC Cable-flat
11 LOGIC + LOGIC BUF(E) FFC Cable-flat
12 LOGIC + LOGIC BUF(F) FFC Cable-flat
13 LOGIC BUF(E) + LOG. BUF(F) Lead connector
14 SMPS + LOGIC BUF(E) Lead connector
15 SMPS + LOGIC MAIN Lead connector
16 SMPS + Y-MAIN Lead connector
17 SMPS + X-MAIN Lead connector
