Technical Specifications, Connections, and Chassis Overview
EN 13SDI PDP 1.
1.3.7 50” HD v3

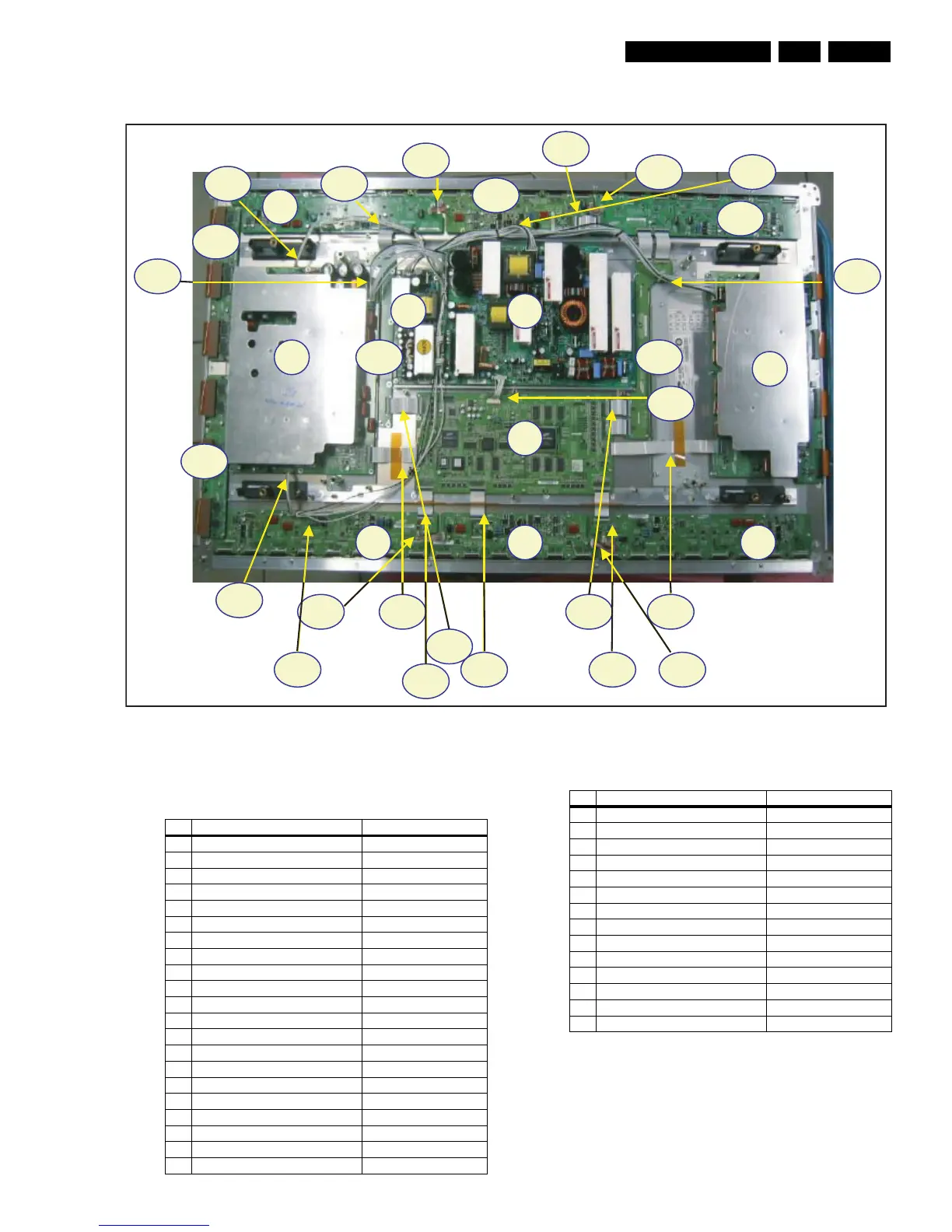

Figure 1-25 PWB location (50” HD v3)
Table 1-9 PWB overview (50” HD v3)
F_14991_016.eps
030805
20
26
35
27
28 32
10
9
11
12
33 34
2 1
5 14 15
4
30
3
13
6 7 8
24
21
22
19
16
18 17
29
31 23 25
No. Location Name
1 Main PUS Assy PWBPSU
2 SUB-PSU Assy PWBSUB-PSU
3 LOGIC-MAIN Board Assy PWBLOGIC Main
4 X-MAIN Driving Board Assy PWBX Main
5 Y-MAIN Driving Board Assy PCBY Main
6 LOGIC E BUFFER Board Assy PWB Buffer
7 LOGIC F BUFFER Board Assy PWB Buffer
8 LOGIC G BUFFER Board Assy PWB Buffer
9 LOGIC H BUFFER Board Assy PWB Buffer
10 LOGIC I BUFFER Board Assy PWB Buffer
11 LOGIC J BUFFER Board Assy PWB Buffer
12 Y-BUFFER (UPPER) Board Assy PWB Buffer
13 Y-BUFFER (DOWN) Board Assy PWB Buffer
14 SUB-R Assy PWB Buffer
15 SUB-L Assy PWB Buffer
16 LOGIC + Y-MAIN FFC Cable-flat
17 LOGIC + X-MAIN FFC Cable-flat
18 SUB R + LOGIC FFC Cable-flat
19 SUB L + LOGIC FFC Cable-flat
20 LOG.BUF(I) + LOG.BUF(J) (Up) FFC Cable-flat
21 LOGIC + LOG. BUF(E) (Down) FFC Cable-flat
22 LOGIC + LOG. BUF(F) (Down) FFC Cable-flat
23 LOGIC + LOG. BUF(G) (Down) FFC Cable-flat
24 LOGIC BUF(E) + LOG. BUF(F) Lead connector
25 LOGIC BUF(F) + LOG. BUF(G) Lead connector
26 LOGIC BUF(H) + LOG. BUF(I) Lead connector
27 LOGIC BUF(I) + LOG. BUF(J) Lead connector
28 Y-MAIN + LOGIC BUF(H) Lead connector
29 Y-MAIN + LOGIC BUF(E) Lead connector
30 PSU + LOGIC MAIN Lead connector
31 PSU + LOGIC BUF(E) Lead connector
32 PSU + LOGIC BUF(H) Lead connector
33 PSU + Y-MAIN Lead connector
34 PSU + X-MAIN Lead connector
35 PSU + SUB PSU Lead connector
