1-10-57
1-10-58
1-10-59
HC265SCM3

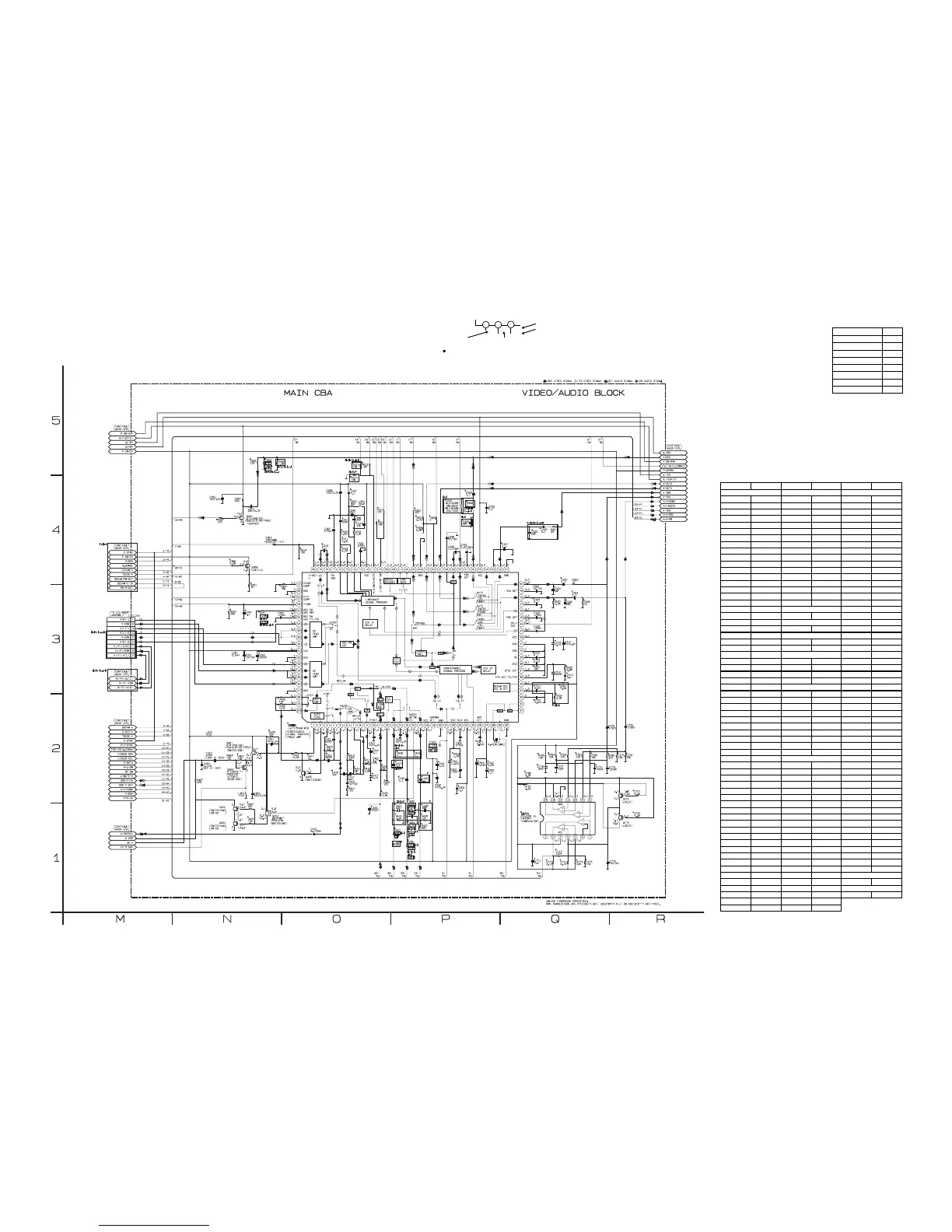

Main 3/6 Schematic Diagram
THE SAME VOLTAGE FOR
BOTH PLAY & REC MODES.
INDICATES THAT THE VOLTAGE
IS NOT CONSISTENT HERE.
MODE: SP/REC
PLAY MODE
REC MODE
1
2
3
5.0
5.0
(2.5)
~
“ “ = SMD
Comparison Chart of
Models and Marks
MODEL MARK
VR330/02 D
VR330/07 E
VR330/39 F
VR530/39 G
VR630/02 H
VR630/07 I
VR630/16 J
VR630/39 K
MAIN 3/6 Schematic Diagram Parts Location Guide
Ref No. Position Ref No. Position Ref No. Position
C251 N-3 C425 P-2 R321 Q-4
C252 N-3 C426 P-2 R323 Q-4
C253 O-3 C427 P-1 R324 O-3
C254 N-3 C428 P-1 R328 Q-3
C302 P-2 C429 P-1 R330 Q-3
C303 P-2 C430 P-2 R331 Q-3
C304 P-2 C431 P-2 R332 P-4
C305 P-2 C756 I-1 R351 N-5
C307 P-2 C757 I-1 R352 N-5
C308 P-2 C771 Q-1 R355 N-4
C309 P-2 C772 R-1 R357 N-4
C310 Q-2 C773 R-2 R358 O-5
C311 Q-3 C774 Q-2 R360 N-4
C312 Q-3 C775 R-2 R361 N-3
C313 Q-3 C776 Q-2 R401 O-2
C314 Q-3 C777 Q-2 R402 N-2
C315 Q-3 C778 Q-2 R403 N-2
C316 Q-3 R404 N-2
C317 Q-3 CL253 M-3 R405 N-1
C318 Q-3 R406 N-1
C319 Q-3 D301 N-4 R407 N-2
C320 Q-3 R408 O-2
C321 Q-3 IC301 O-2 R409 O-2
C322 Q-3 IC771 Q-1 R411 O-2
C323 Q-4 R412 O-2
C324 Q-3 L251 N-3 R413 O-2
C325 Q-4 L301 O-4 R414 O-2
C326 Q-4 L401 N-2 R415 O-2
C327 Q-4 L402 N-2 R416 O-2
C330 P-4 R417 O-2
C332 P-4 Q351 N-4 R421 O-2
C333 P-4 Q352 N-4 R422 O-2
C334 P-4 Q401 N-2 R423 P-1
C335 P-4 Q402 N-2 R424 P-1
C337O-4Q403N-1R425P-1
C338O-4Q404N-1R426P-1
C339O-4Q405N-1R427P-1
C340O-4Q406O-2R428P-1
C341O-4Q771R-2R429O-2
C342O-4Q772R-1R430P-2
C343 O-4 R431 P-2
C344 O-4 J89 P-1 R771 Q-1
C345 Q-4 R251 O-3 R772 Q-1
C346 P-4 R252 N-3 R773 Q-1
C347 O-4 R301 P-2 R774 Q-1
C351 N-4 R302 P-2 R775 Q-1
C352 N-4 R303 Q-3 R776 R-2
C401 N-2 R304 Q-2 R777 R-2
C402 N-2 R305 Q-3 R778 R-2
C403 N-2 R306 P-4 R779 R-2
C404 N-2 R307 P-4 R780 Q-2
C411 O-2 R308 P-4 R781 Q-2
C412 O-2 R309 P-4 R782 Q-2
C413 O-1 R310 O-4 R783 Q-2
C414 O-2 R311 O-4 R784 Q-2
C415 O-2 R312 O-5 R785 Q-2
C416 O-2 R313 O-5 R786 Q-2
C417 O-2 R314 O-4 R787 Q-2
C418 O-2 R315 O-4
C419 O-1 R316 O-4 X301 P-2
C421 O-2 R317 O-4
C422 O-2 R318 O-4 TP301 P-2
C423 P-2 R319 O-4
C424 P-2 R320 O-4
TRANSISTORS
TEST POINT
CAPACITORS TRANSISTORS
COILS
CONNECTORS
DIODE
ICS
CAPACITORS
RESISTORS
To Next Page
