Philips VR630 - VPS CBA Top View; VPS CBA Bottom View; Power SW CBA Top View; Power SW CBA Bottom View

1-10-85
1-10-86

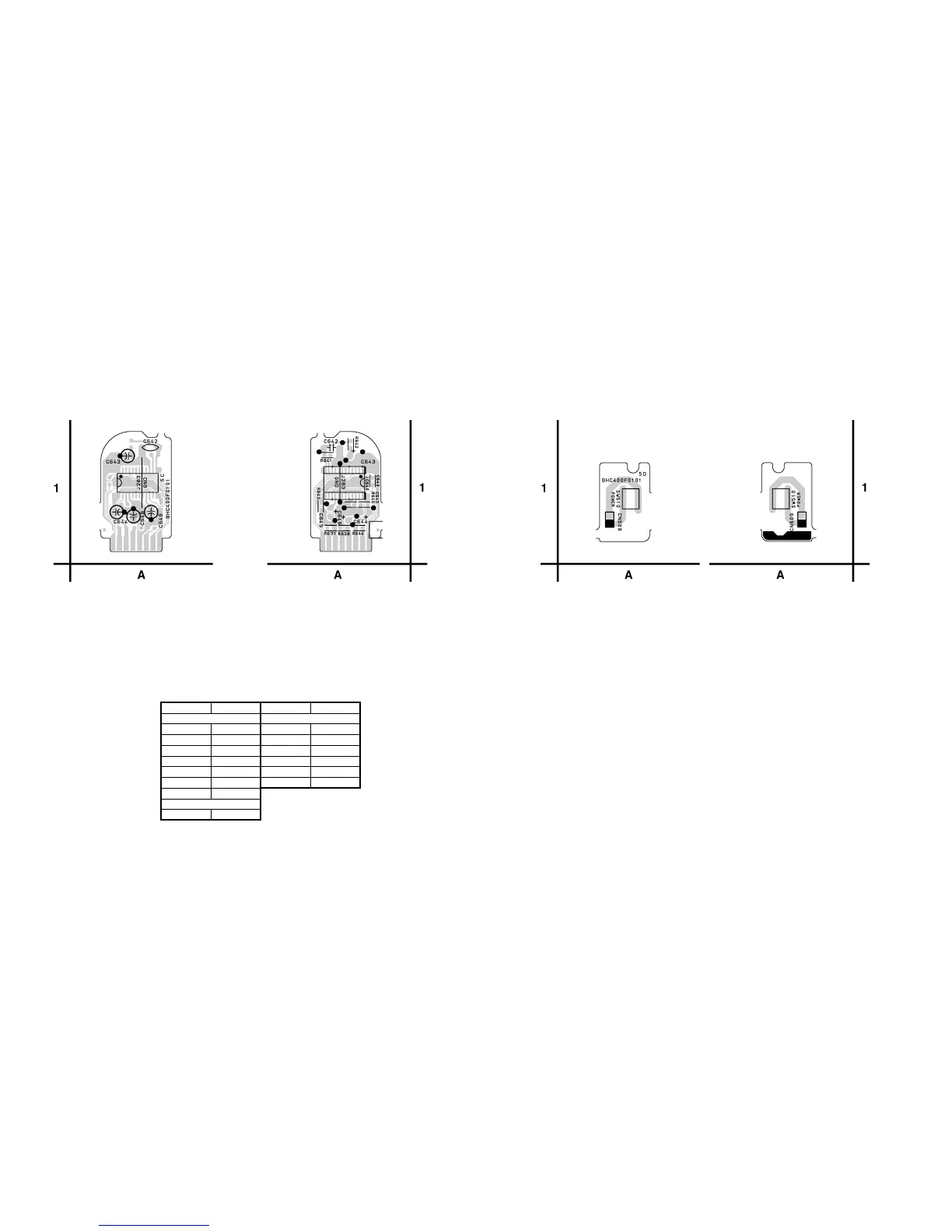

VPS CBA Top View
BHC400F01015-C
VPS CBA Bottom View
BHC400F01015-D
Power SW CBA Top View Power SW CBA Bottom View
VPS CBA Parts Location Guide
Ref No. Position Ref No. Position
C640 A-1 R638 A-1
C642 A-1 R641 A-1
C643 A-1 R642 A-1
C644 A-1 R643 A-1
C645 A-1 R644 A-1
C648 A-1 R645 A-1
C649 A-1
IC640 A-1
ICS
RESISTORSCAPACITORS
