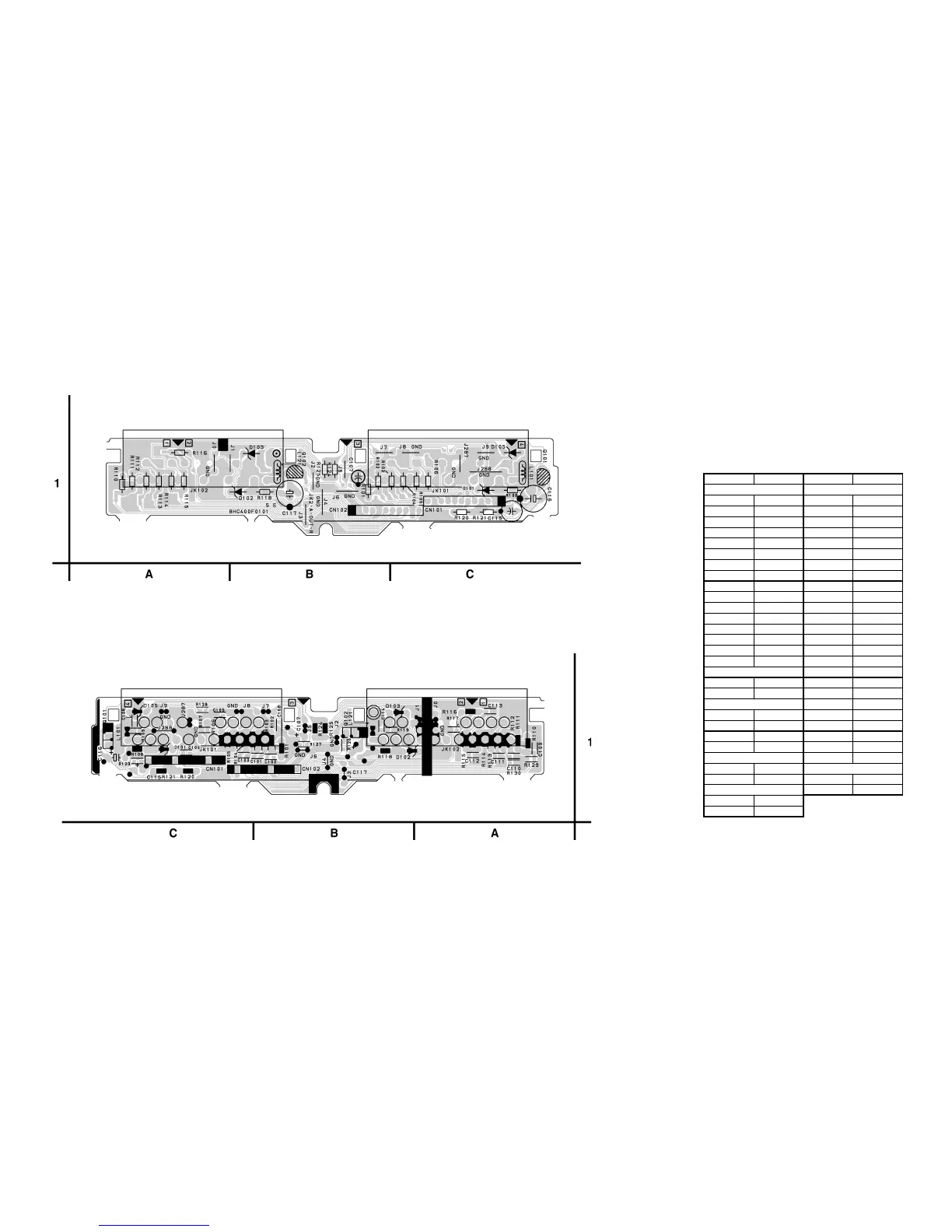

Philips VR630 - Jack CBA Top View; Jack CBA Bottom View

1-10-87
1-10-88
Jack CBA Top View
Jack CBA Bottom View
BHC400F01015-E
JACK CBA Parts Location Guide
Ref No. Position Ref No. Position
C101 C-1 R101 B-1
C102B-1R102B-1
C103 C-1 R103 B-1
C104 C-1 R104 C-1
C105 C-1 R105 C-1
C106 C-1 R106 C-1
C107B-1R107C-1
C108B-1R108C-1
C109A-1R109C-1
C110A-1R110A-1
C111A-1R111A-1
C112A-1R112A-1
C113A-1R113A-1
C115 C-1 R114 A-1
C116 C-1 R115 A-1
C117B-1R116A-1
R117 A-1
CL101 C-1 R118 B-1
CL102 B-1 R119 B-1
R120 C-1
D101 C-1 R123 C-1
D102B-1R125B-1
D103B-1R126B-1
D105 C-1 R127 B-1
R128 C-1
L101 C-1
L121 B-1 JK101 C-1
JK102 A-1
Q101 C-1
Q102 B-1
RESISTORS
MISCELLANEOUS
TRANSISTORS
CONNECTORS
COILS
DIODES
CAPACITORS
