Philips VR630 - VPS Schematic Diagram

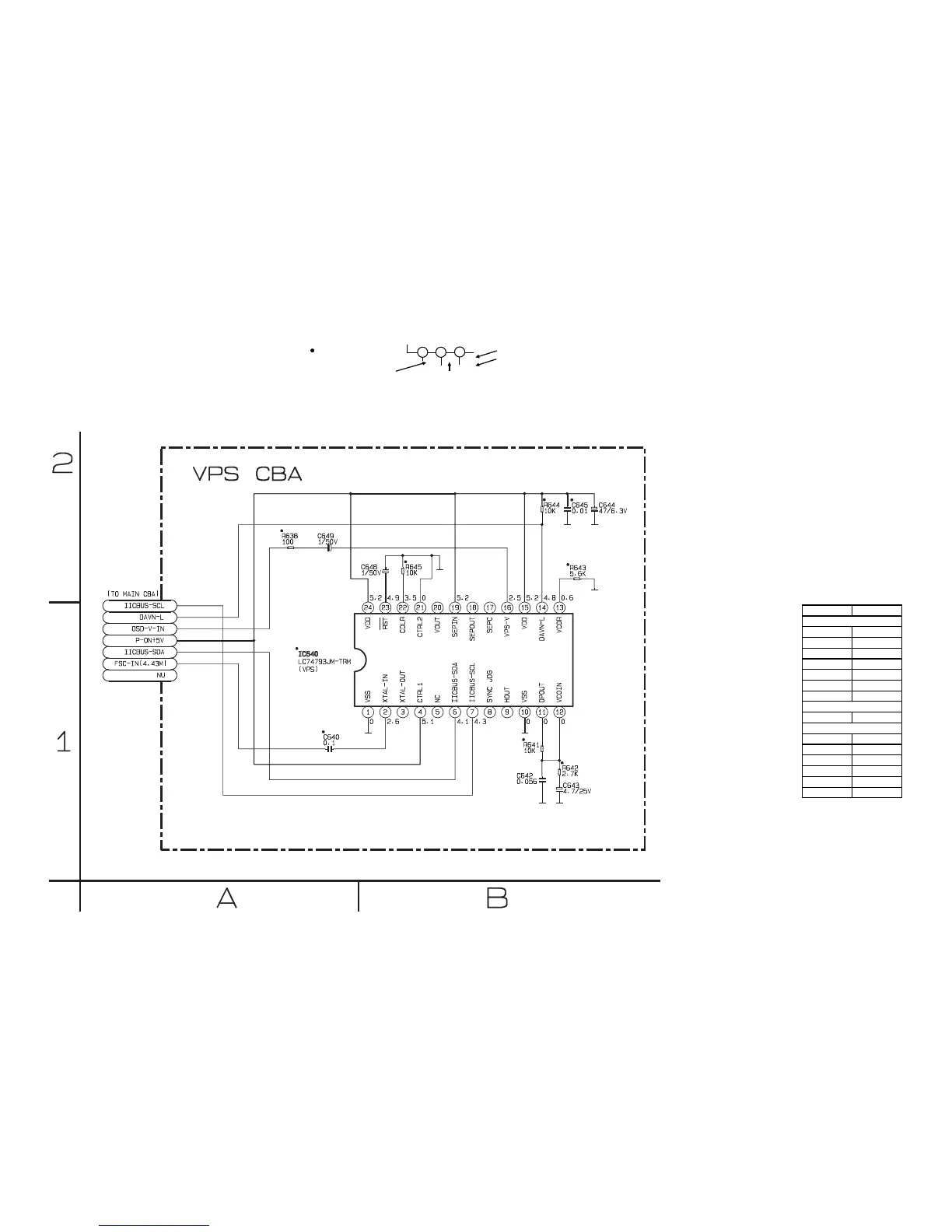

VPS Schematic Diagram
HC265SCV
1-10-71 1-10-72
VPS Schematic Diagram
Parts Location Guide
Ref No. Position
C640 A-1
C642 B-1
C643 B-1
C644 B-2
C645 B-2
C648 B-2
C649 A-2
IC640 A-2
R638 A-2
R641 B-1
R642 B-1
R643 B-2
R644 B-2
R645 B-2
RESISTORS
CAPACITORS
IC
THE SAME VOLTAGE FOR
BOTH PLAY & REC MODES.
INDICATES THAT THE VOLTAGE
IS NOT CONSISTENT HERE.
MODE: SP/REC
PLAY MODE
REC MODE
1
2
3
5.0
5.0
(2.5)
~
“ “ = SMD
