Philips VR630 - Page 22

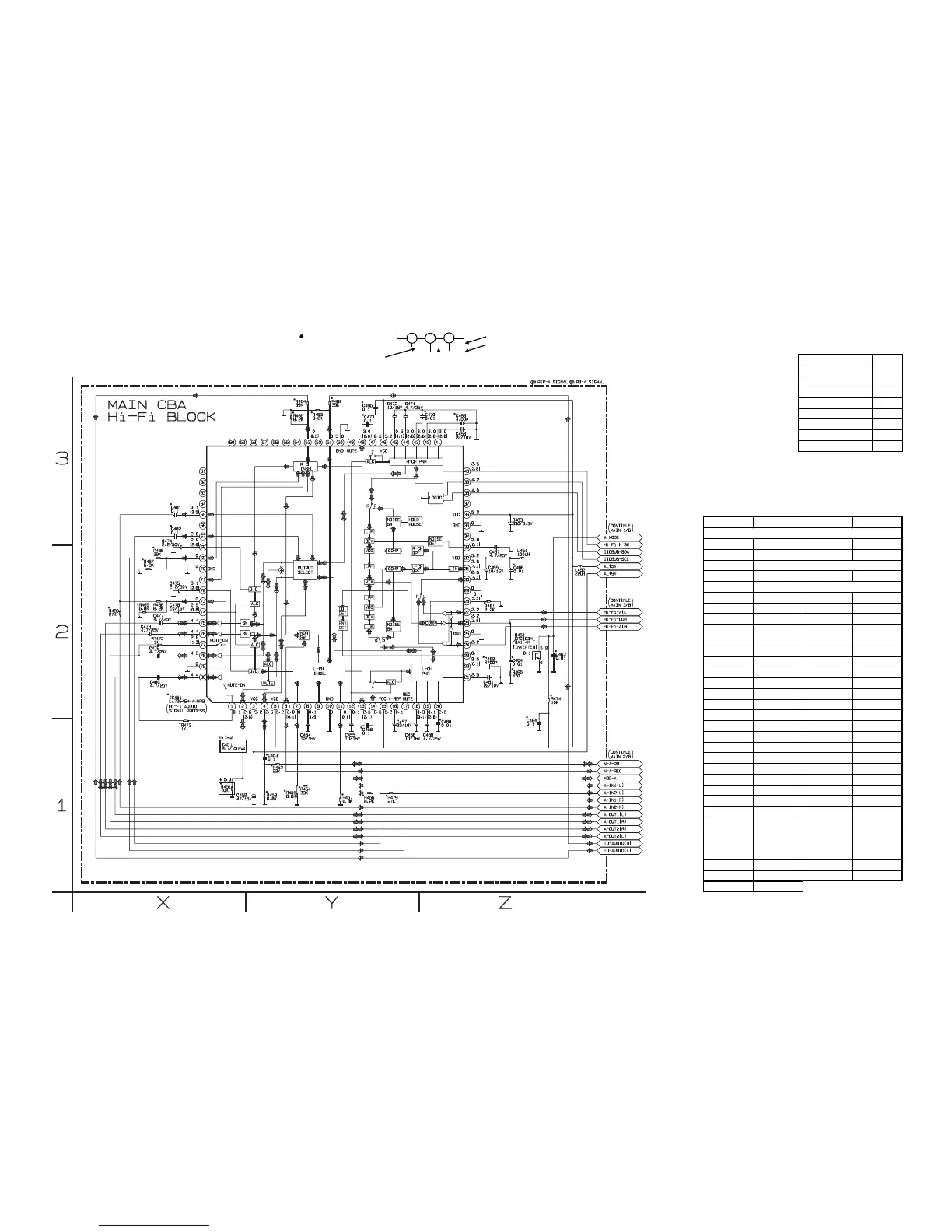

Main 5/6 Schematic Diagram ( G,H,I,J,K )
1-10-63
1-10-64
HC463SCM5
THE SAME VOLTAGE FOR
BOTH PLAY & REC MODES.
INDICATES THAT THE VOLTAGE
IS NOT CONSISTENT HERE.
MODE: SP/REC
PLAY MODE
REC MODE
1
2
3
5.0
5.0
(2.5)
~
“ “ = SMD
Comparison Chart of
Models and Marks
MODEL MARK
VR330/02 D
VR330/07 E
VR330/39 F
VR530/39 G
VR630/02 H
VR630/07 I
VR630/16 J
VR630/39 K
MAIN 5/6 Schematic Diagram Parts Location Guide (G,H,I,J,K)
Ref No. Position Ref No. Position
C451 X-1 C484 Z-1
C452 X-1 C485 Y-3
C453 Y-1
C454 Y-1 IC451 X-2
C455 Y-1
C456 Y-1 L451 Z-2
C457 Y-1 L452 Z-2
C458 Y-1 TRANSISTOR
C459 Z-1 Q451 Z-2
C460 Z-1 RESISTORS
C461 Z-2 R451 X-1
C462 Z-2 R452 Y-1
C463 Z-2 R453 Y-1
C464 Z-2 R454 Y-1
C465 Z-2 R455 Y-1
C466 Z-2 R456 Y-1
C467 Z-2 R457 Y-1
C468 Z-3 R460 Z-2
C469 Z-3 R461 Z-2
C470 Z-3 R462 Y-3
C471 Y-3 R463 Y-3
C472 Y-3 R464 Y-3
C473 Y-3 R465 Y-3
C474 X-3 R466 X-2
C475 X-2 R467 X-2
C476 X-2 R468 X-2
C477 X-2 R469 X-2
C478 X-2 R472 X-2
C479 X-2 R473 X-1
C480 X-2 R474 Z-2
C481 X-3 R479 Y-1
C482 X-3 R480 X-2
C483 Z-3
CAPACITORS
IC
COILS
CAPACITORS
