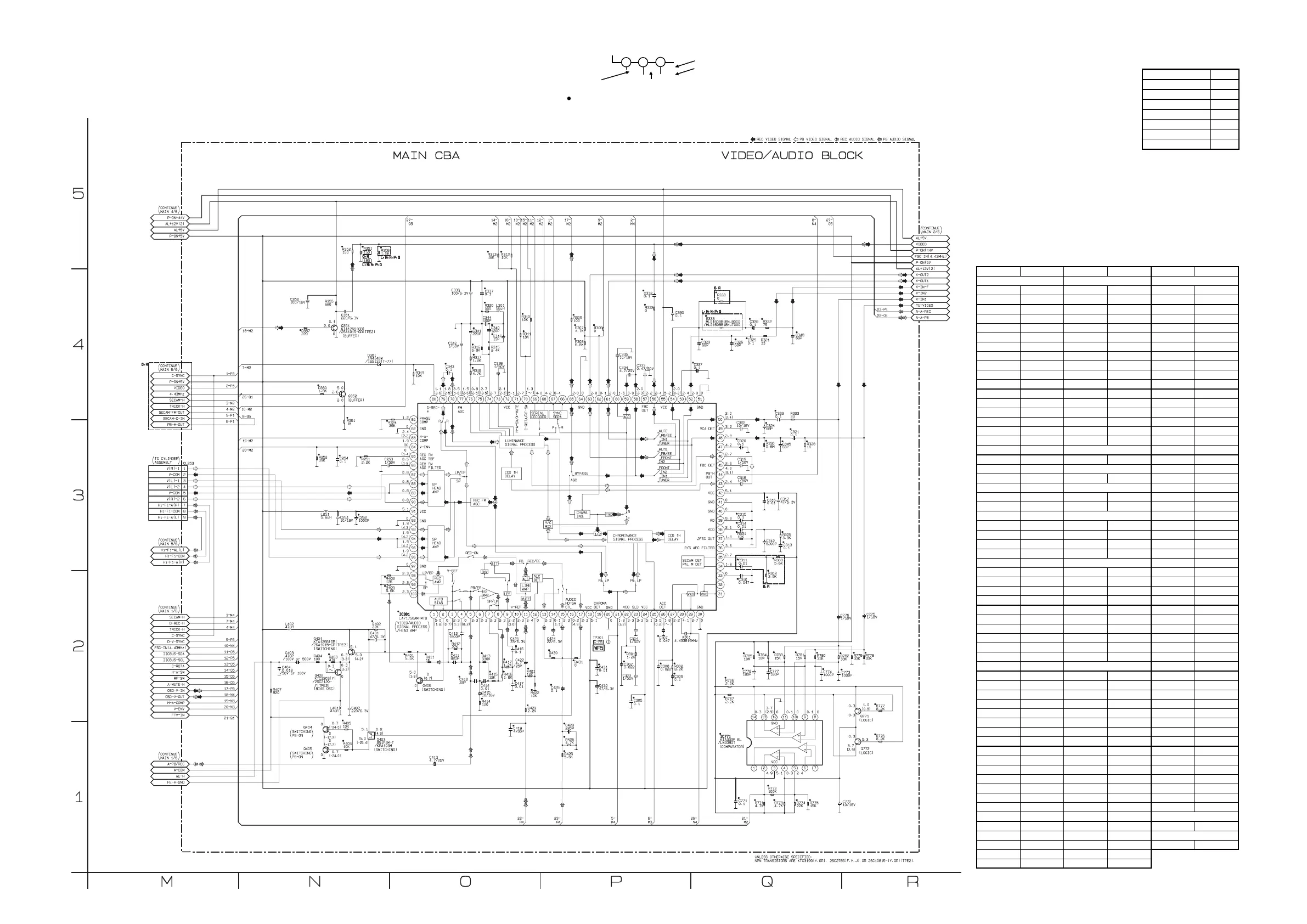

Philips VR730/07 - Main Schematic Diagram (3;6)

1-10-57
1-10-58 1-10-59
HC470SCM3
Main 3/6 Schematic Diagram
THE SAME VOLTAGE FOR
BOTH PLAY & REC MODES.
INDICATES THAT THE VOLTAGE
IS NOT CONSISTENT HERE.
MODE: SP/REC
PLAY MODE
REC MODE
1
2
3
5.0
5.0
(2.5)
~
“ “ = SMD
Comparison Chart of
Models and Marks
MODEL MARK
VR730/02 L
VR730/07 M
VR730/16 N
VR730/39 O
VR732/02 P
VR732/16 Q
VR732/39 R
MAIN 3/6 Schematic Diagram Parts Location Guide
Ref No. Position Ref No. Position Ref No. Position
C251 N-3 C421 O-2 R321 Q-4
C252 N-3 C422 O-2 R322 Q-4
C253 O-3 C424 P-2 R323 Q-4
C254 N-3 C425 P-2 R324 O-3
C302 P-2 C428 P-1 R328 Q-3
C303 P-2 C430 P-2 R330 Q-3
C304 P-2 C431 P-2 R331 Q-3
C305 P-2 C756 I-1 R332 P-4
C307 P-2 C757 I-1 R333 Q-4
C308P-2C771Q-1R351N-5
C309P-2C772R-1R352N-5
C310Q-2C773R-2R355N-4
C311Q-3C774Q-2R357N-4
C312Q-3C775R-2R358O-5
C313Q-3C776Q-2R360N-4
C314Q-3C777Q-2R361N-3
C315Q-3C778Q-2R401O-2
C316 Q-3 R402 N-2
C317 Q-3 CL253 M-3 R403 N-2
C318 Q-3 R404 N-2
C319Q-3D301N-4R405N-1
C320 Q-3 R406 N-1
C321 Q-3 IC301 O-2 R407 N-2
C322 Q-3 IC771 Q-1 R408 O-2
C323 Q-4 R409 O-2
C324Q-3L251N-3R411O-2
C325Q-4L301O-4R412O-2
C326Q-4L401N-2R413O-2
C327Q-4L402N-2R414O-2
C328 Q-4 R415 O-2
C329Q-4Q351N-4R416O-2
C330P-4Q352N-4R417O-2
C332P-4Q401N-2R421O-2
C333P-4Q402N-2R422O-2
C334P-4Q403N-1R425 P-1
C335P-4Q404N-1R426 P-1
C337O-4Q405N-1R429O-2
C338O-4Q406O-2R430P-2
C339O-4Q771R-2R431P-2
C340O-4Q772R-1R771Q-1
C341 O-4 R772 Q-1
C342O-4R251O-3R773Q-1
C343O-4R252N-3R774Q-1
C344 O-4 R301 P-2 R775 Q-1
C345 Q-4 R302 P-2 R776 R-2
C347O-4R303Q-3R777R-2
C348Q-4R304Q-2R778R-2
C351 N-4 R305 Q-3 R779 R-2
C352 N-4 R306 P-4 R780 Q-2
C401 N-2 R307 P-4 R781 Q-2
C402 N-2 R308 P-4 R782 Q-2
C403 N-2 R309 P-4 R783 Q-2
C404 N-2 R310 O-4 R784 Q-2
C411O-2R311O-4R785Q-2
C412O-2R312O-5R786Q-2
C413O-1R313O-5R787Q-2
C414O-2R315O-4
C415O-2R316O-4 X301P-2
C416O-2R317O-4
C417O-2R318O-4TP301P-2
C418O-2R319O-4
C419O-1R320O-4
TRANSISTORS
COILS
CAPACITORS CAPACITORS RESISTORS
RESISTORS
CONNECTORS
DIODE
ICS
CRYSTAL OSCILLATORS
TEST POINT
