Phoenix Contact FL SWITCH 2108 User Manual

Mounting and installation
107065_en_01 PHOENIX CONTACT 15
2.2.4.1 Elements of the SFP modules

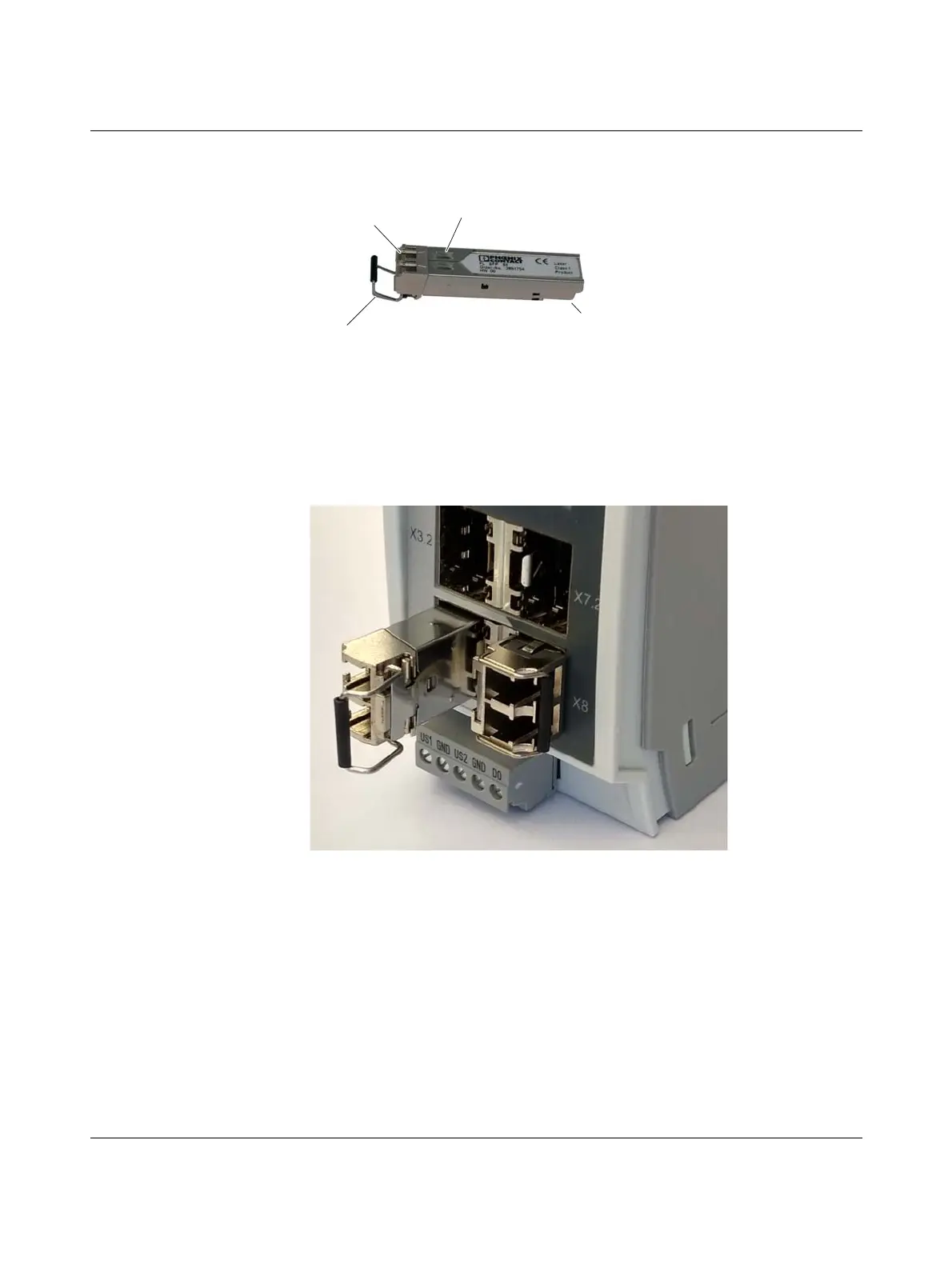

Figure 2-6 Elements of the SFP modules
2.2.4.2 Mounting the SFP modules
Inserting the SFP modules
• Insert the SFP modules in the relevant slots on the switch.
• Ensure correct mechanical alignment of the SFP modules.
Figure 2-7 Inserting the SFP modules (example)
Removing the SFP modules
• Remove the FO connector before removing the SFP module.
• Turn the release latch to the side and pull out the SFP module.
Elektrische
Anschlusskontakte
Mechanische
Verriegelung
LWL-
Anschluss
Ausrasthebel
