Virtual Local Area Network (VLAN)
107065_en_01 PHOENIX CONTACT 73
Pop-up: VLAN Port configuration

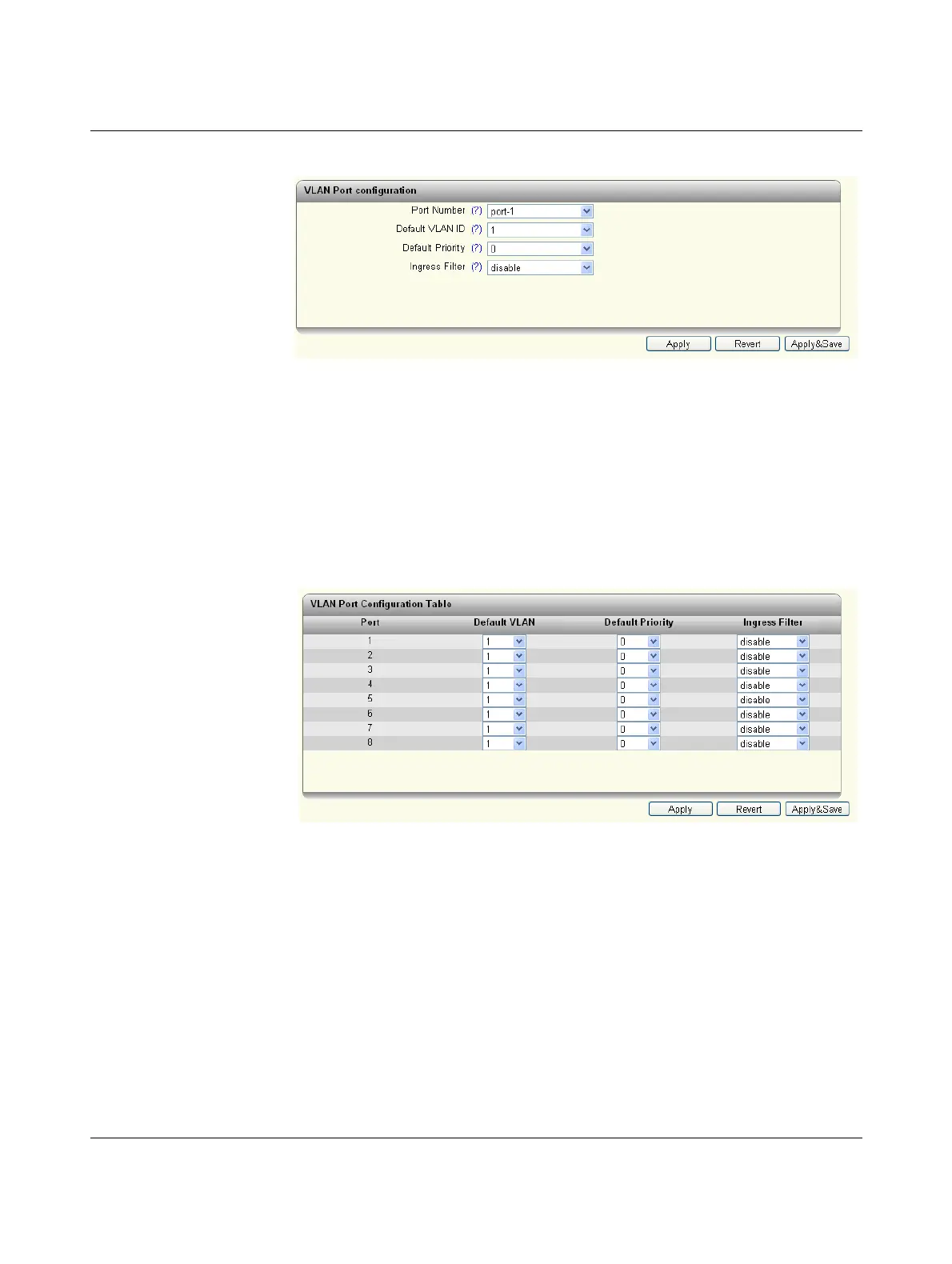

Figure 10-3 “VLAN Port configuration” web page
Port number: enter the port for which you wish to change the VLAN settings.
Default VLAN ID: set the VLAN ID to which the port should be assigned here.
Default Priority: set the VLAN priority for the selected port here.
Ingress Filter: set here whether the ingress filter should be activated.
Clicking on the “VLAN Port Table” button takes you to the VLAN port table.
Pop-up: VLAN Port Configuration Table
Figure 10-4 “VLAN Port Configuration Table” web page
Clicking on the “Current VLANs” link opens the “Current VLANs” web page as a pop-up.
