Configuration and diagnostics in web-based management
107065_en_01 PHOENIX CONTACT 43
Advanced Port Configuration
Clicking on the “Configure all ports simultaneously” link takes you to the “Port Configuration
Table” page. You can set the status, mode, link monitoring, and flow control for all ports
here.

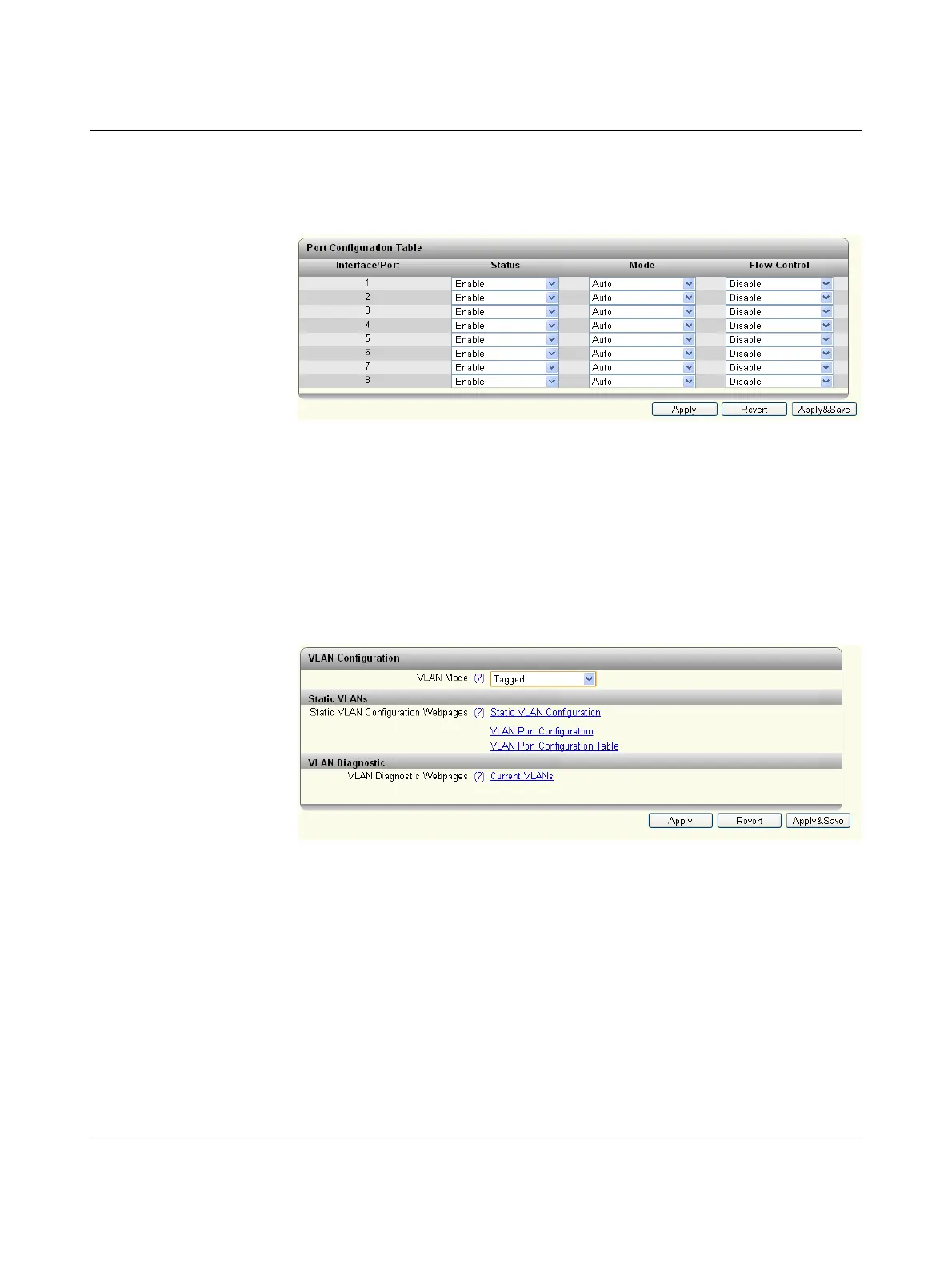

Figure 5-22 “Port Configuration Table” web page
Clicking on the “Configure Port Mirroring” button takes you to the port mirroring configura-
tion (see “Port Mirroring” on page 53).
Clicking on the “Configure Port Settings for a VLAN” button takes you to the “VLAN Port
Configuration” page (see “VLAN Configuration” on page 71).
5.2.2.6 VLAN Configuration
For additional information on “VLAN”, refer to “Virtual Local Area Network (VLAN)” on
page 71.
Figure 5-23 “VLAN Configuration” web page
