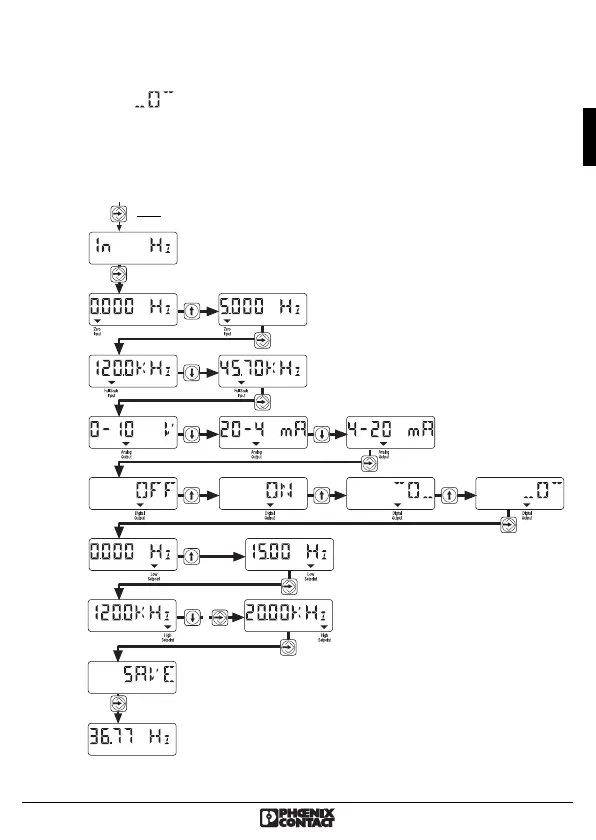

7.4. Example: Configuration based on a frequency input signal
The module MCR-f-UI-DC has the following functions:
Frequency range: 5…45700 Hz, 3-wire NPN sensor
Output signal: 4…20 mA
Switching behavior: bottom switching point ("High" to "Low") at 15 Hz
top switching point ("Low" to "High") at 20 kHz
ON delay: 10 s
OFF delay: 5 s
Wire-break detection time: 1 s
+
Operating mode
f-input
measuring
range
start
measuring
range
end
analog
output
switching
output
bottom
switching
point
top
switching
point
example:
operating mode
press briefly
3-wire NPN
