26

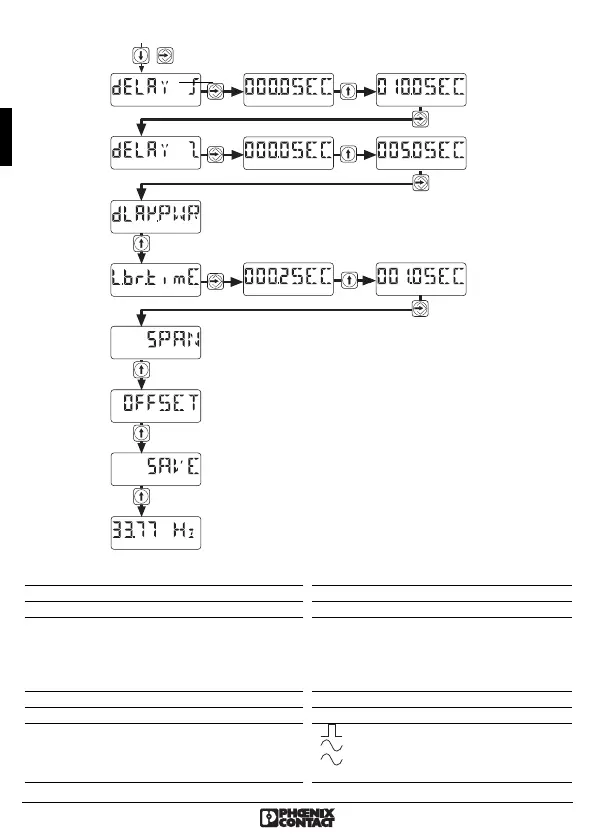

Continuation of configuration example:
8. Technical data
MCR-F-UI-DC 2814605
Frequency input
Frequency range 0.1 Hz … 120 kHz
Input sources
PNP transistor outputs
NPN transistor outputs
NAMUR initiators
Potential-free relay contact (dry contact)
Frequency generator
Sensor supply c. 15 V DC / < 25 mA
Input frequency / Peak time / Resolution 0.1 Hz…120 kHz / 32 ms / 12 bit
Signal level 2 V
pp
(0.1 Hz…120 kHz)
2 V
pp
(8 Hz…120 kHz)
13 V
pp
(1 Hz...120 kHz)
max. 30 V (incl. DC voltage)
Pulse length 1μs
+
operating mode
ON
delay
OFF
delay
wire break
detection
time
example:
operating mode
press briefly -> extended operating mode
9000681_05_f_ui.book Seite 26 Freitag, 13. Mai 2011 3:21 15
